7 自动发现

概述

配置 - >发现中用户可以配置和维护发现规则。

显示现有发现规则及其详细信息的列表。

显示数据:

名称 规则的名称。 单击发现规则名称将打开发现规则配置表.
IP范围 用于网络扫描的IP地址范围。
延迟 执行发现的频率。
检查 用于发现的检查类型。
状态 动作状态 - 启用 或者 禁止.\\点击状态可以更改。

点击右上角 创建发现规则 按钮配置新的发现规则。

批量编辑选项

列表下方的按钮提供了一些批量编辑选项:

  • 启用 - 将发现规则状态更改为 启用
  • 禁用 - 将发现规则状态更改为 禁用
  • 删除 - 删发现规则

要使用这些选项,请在相应的发现规则之前标记复选框,然后单击所需的按钮。

过滤器

由于列表可能包含许多发现规则,可能需要过滤出您真正需要的那些。

过滤器 链接在发现规则列表之上。 如果您点击它,则可以使用过滤器,您可以通过名称和状态过滤发现规则。

7 Discovery

Overview

In the Configuration → Discovery section users can configure and maintain discovery rules.

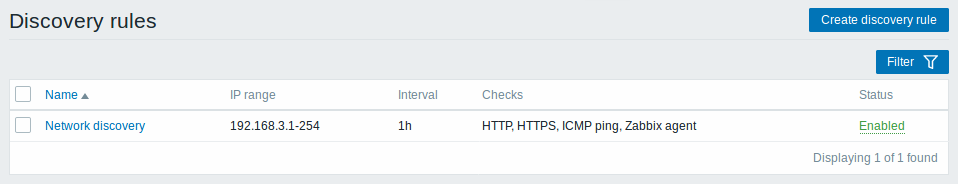

A listing of existing discovery rules with their details is displayed.

Displayed data:

Column Description
Name Name of the discovery rule. Clicking on the discovery rule name opens the discovery rule configuration form.
IP range The range of IP addresses to use for network scanning is displayed.
Delay The frequency of performing discovery displayed.
Checks The types of checks used for discovery are displayed.
Status Action status is displayed - Enabled or Disabled.
By clicking on the status you can change it.

To configure a new discovery rule, click on the Create discovery rule button in the top right-hand corner.

Mass editing options

Buttons below the list offer some mass-editing options:

  • Enable - change the discovery rule status to Enabled
  • Disable - change the discovery rule status to Disabled
  • Delete - delete the discovery rules

To use these options, mark the checkboxes before the respective discovery rules, then click on the required button.

Filter

As the list may contain a number of discovery rules, it may be needed to filter out the ones you really need.

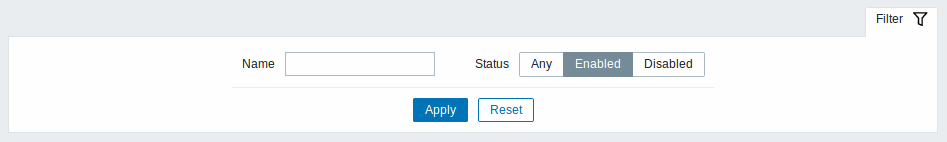

The Filter link is available above the list of discovery rules. If you click on it, a filter becomes available where you can filter discovery rules by name and status.
