Filter out interface in discovery

[Freezstyler]

Hi,
I created a template where I'm using parts of Network inferfaces discovery. I'm trying to filter out interface with

{#IFTYPE}":"135"}].

If I do a test from Network interfaces discovery/ Discovery rule I get this output

[{"{#SNMPINDEX}":"1","{#IFOPERSTATUS}":"1","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"Host","{#IFDESCR}":"Host","{#IFTYPE}":"1"},{"{#SNMPINDEX}":"2","{#IFOPERSTATUS}":"1","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"Eth0","{#IFDESCR}":"Eth0","{#IFTYPE}":"188"},{"{#SNMPINDEX}":"3","{#IFOPERSTATUS}":"2","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"Eth1","{#IFDESCR}":"Eth 1","{#IFTYPE}":"6"},{"{#SNMPINDEX}":"4","{#IFOPERSTATUS}":"1","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"Eth2","{#IFDESCR}":"Eth 2","{#IFTYPE}":"6"},{"{#SNMPINDEX}":"102","{#IFOPERSTATUS}":"1","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"vlan 2099","{#IFDESCR}":"vlan 2099","{#IFTYPE}":"135"}]

I want to filter out the last interface

{"{#SNMPINDEX}":"102","{#IFOPERSTATUS}":"1","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"vlan 2099","{#IFDESCR}":"vlan 2099","{#IFTYPE}":"135"}]

In template I have a macro {

$NET.IF.IFNAME.NOT_MATCHES} with values ^135*$

I created a filter in discovery rule:

{#IFTYPE} does not match {$NET.IF.IFTYPE.NOT_MATCHES}

But if I do another test I get the same result as above, the interface is not filtered out. I also tried copy all of the macros and filters from original discovery (there is 15 macros and 12 filters) and I edited the original from:

{$NET.IF.IFNAME.NOT_MATCHES} (^Software Loopback Interface|^NULL[0-9.]*$|^[Ll]o[0-9.]*$|^[Ss]ystem$|^Nu[0-9.]*$|^veth[0-9a-z]+$|docker[0-9]+|br-[a-z0-9]{12}) Filter out loopbacks, nulls, docker veth links and docker0 bridge by default

to:

{$NET.IF.IFNAME.NOT_MATCHES} (^135|^Software Loopback Interface|^NULL[0-9.]*$|^[Ll]o[0-9.]*$|^[Ss]ystem$|^Nu[0-9.]*$|^veth[0-9a-z]+$|docker[0-9]+|br-[a-z0-9]{12}) Filter out loopbacks, nulls, docker veth links and docker0 bridge by default

But it doesn't work also, so I think I'm doing something wrong, or I can't understand the concept of filters and macros properly.

Thanks!

[Markku]

How is "Type of calculation" configured in the LLD filter tab? Usually it should be set to "and".

Markku

[Freezstyler]

Now I have only one macro and one filter so there is no such setting, If I just edited the Network Interfaces Discovery where was bunch of filters and macros, there was "and".

[Markku]

Ok. Note that your last example used IFNAME instead of IFTYPE, so if you only have one filter, double-check your macro name, value and the filter rule.

Markku

[Freezstyler]

Yeah, there was a typing error, I fixed it, but the result is the same:

Discovery rules/Filters:

{#IFTYPE} does not match {$NET.IF.IFTYPE.NOT_MATCHES}

Templates/Macros:

{$NET.IF.IFTYPE.NOT_MATCHES} ^135*$ ^135*$

Test from discovery rules:

[{"{#SNMPINDEX}":"1","{#IFOPERSTATUS}":"1","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"Host","{#IFDESCR}":"Host","{#IFTYPE}":"1"},{"{#SNMPINDEX}":"2","{#IFOPERSTATUS}":"1","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"Eth0","{#IFDESCR}":"Eth0","{#IFTYPE}":"188"},{"{#SNMPINDEX}":"3","{#IFOPERSTATUS}":"2","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"Eth1","{#IFDESCR}":"Eth 1","{#IFTYPE}":"6"},{"{#SNMPINDEX}":"4","{#IFOPERSTATUS}":"1","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"Eth2","{#IFDESCR}":"Eth 2","{#IFTYPE}":"6"},{"{#SNMPINDEX}":"102","{#IFOPERSTATUS}":"1","{#IFADMINSTATUS}":"1","{#IFALIAS}":"","{#IFNAME}":"vlan 2099","{#IFDESCR}":"vlan 2099","{#IFTYPE}":"135"}]

[Markku]

The filter should match correctly (unless I miss something really obvious).

If the vlan 2099 was previously discovered (before adjusting the filters), have you manually deleted the item (or configured the LLD rule to delete old items immediately)?

Markku

[Freezstyler]

I did not, but I'm discovering it "live" from Test button in Discovery rule, so it should get data from the device and filter them according to my rules, I'm right?

[Markku]

The Test button only tests the discovery function, not the full pipeline with preprosessing, filtering and override.

Go to the host items and check the items that have actually been discovered (in one of the hosts that are using your template).

Markku

[Freezstyler]

Okay, i will check it tomorrow. Thank you.

P.S. Is there any way how to test it with filtering except create a host and link it to template? Because this is very slow way :/

[Markku]

I don't know about slow, you can always set the discovery interval to 1 minute and do "config_cache_reload".

Often I use a macro in the discovery interval so that I can easily customize the discovery interval for specific hosts.

Markku

[Freezstyler]

I tested it today and the vlan2099 is still discovered :/. I deleted the old host, created a new one.

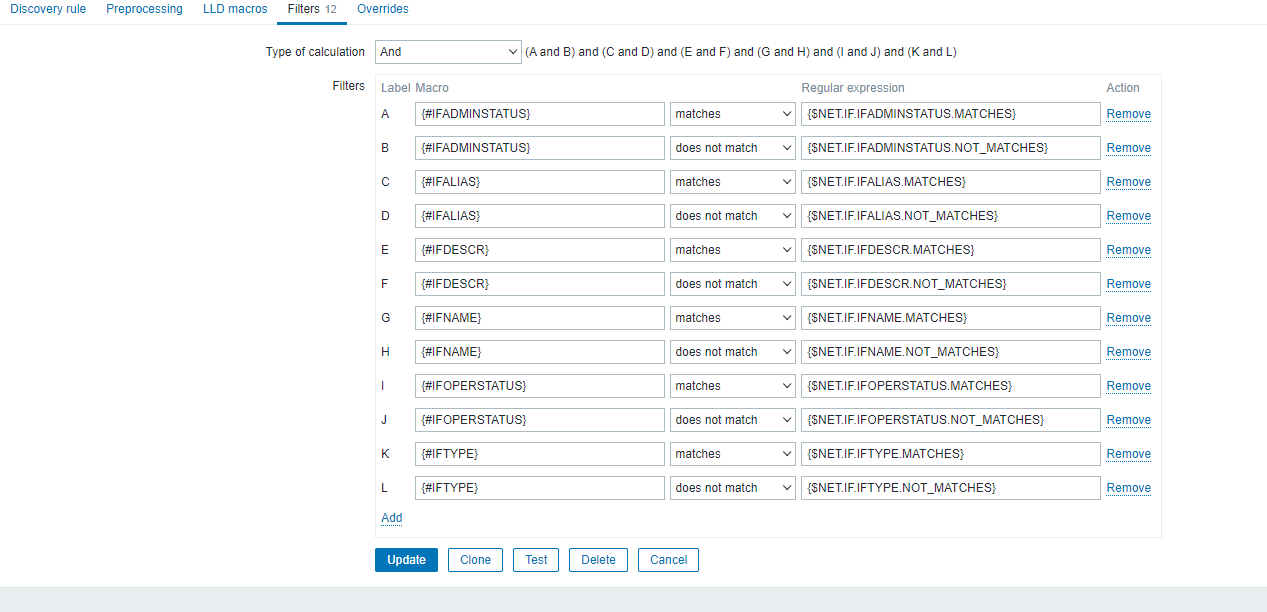

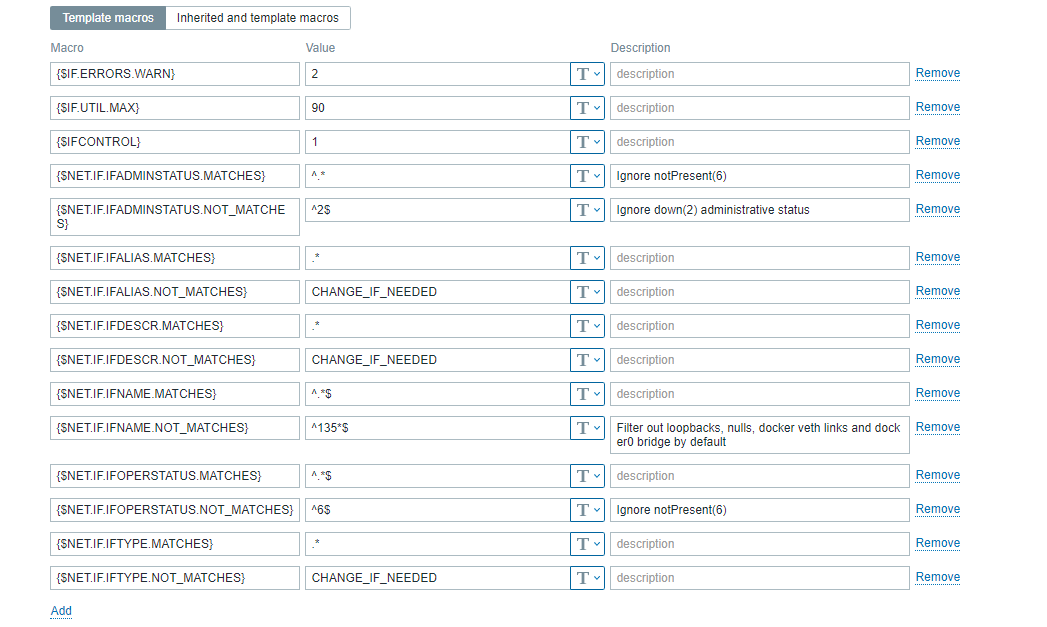

Sending screens of my settings:

[Freezstyler]

Well, I'm stupid . I changed macro for IF.IFDESCR and not for IF.IFTYPE. Now it's working like intended. Thank you very much, you were very helpful. Maybe if you have a minute, you can help me also with this one?

https://www.zabbix.com/forum/zabbix-help/454539-it-s-possible-to-get-historical-value-in-trigger-name

I'm really lost :/
