Cannot create item

[mmartines]

Buenas,

en varios switch de la marca DLINK me pasa lo siguiente:

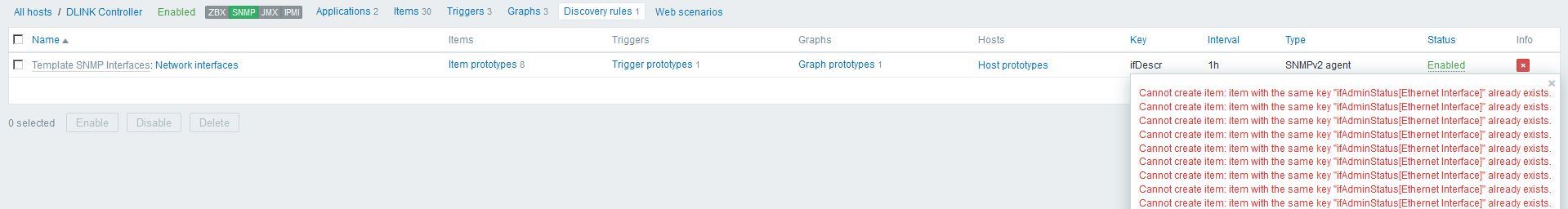

Cannot create item: item with the same key "ifAdminStatus[Ethernet Interface]" already exists.



Con los Cisco y HP no.

El problema es que nose como poder arreglar el error.

Saludos

[Hernandes Martins]

Hola amigo

cual es lá interface ? no hay nombre ? ejecuta el comando snmpwalk y compara las interface.

saludos

[mmartines]

Hola,

Este switch tiene 48 interfaces. Como puedo hacer para conocer el nombre de las interfaces? Yo hice lo siguiente.

root@zbxsvr:/home/zbxusr# snmpwalk -v 2c -c public 192.168.12.234 ifAdminStatus
IF-MIB::ifAdminStatus.1 = INTEGER: up(1)
IF-MIB::ifAdminStatus.2 = INTEGER: up(1)
IF-MIB::ifAdminStatus.3 = INTEGER: up(1)
IF-MIB::ifAdminStatus.4 = INTEGER: up(1)
IF-MIB::ifAdminStatus.5 = INTEGER: up(1)
IF-MIB::ifAdminStatus.6 = INTEGER: up(1)
IF-MIB::ifAdminStatus.7 = INTEGER: up(1)
IF-MIB::ifAdminStatus.8 = INTEGER: up(1)
IF-MIB::ifAdminStatus.9 = INTEGER: up(1)
IF-MIB::ifAdminStatus.10 = INTEGER: up(1)
IF-MIB::ifAdminStatus.11 = INTEGER: up(1)
IF-MIB::ifAdminStatus.12 = INTEGER: up(1)
IF-MIB::ifAdminStatus.13 = INTEGER: up(1)
IF-MIB::ifAdminStatus.14 = INTEGER: up(1)
IF-MIB::ifAdminStatus.15 = INTEGER: up(1)
IF-MIB::ifAdminStatus.16 = INTEGER: up(1)
IF-MIB::ifAdminStatus.17 = INTEGER: up(1)
IF-MIB::ifAdminStatus.18 = INTEGER: up(1)
IF-MIB::ifAdminStatus.19 = INTEGER: up(1)
IF-MIB::ifAdminStatus.20 = INTEGER: up(1)
IF-MIB::ifAdminStatus.21 = INTEGER: up(1)
IF-MIB::ifAdminStatus.22 = INTEGER: up(1)
IF-MIB::ifAdminStatus.23 = INTEGER: up(1)
IF-MIB::ifAdminStatus.24 = INTEGER: up(1)
IF-MIB::ifAdminStatus.25 = INTEGER: up(1)
IF-MIB::ifAdminStatus.26 = INTEGER: up(1)
IF-MIB::ifAdminStatus.27 = INTEGER: up(1)
IF-MIB::ifAdminStatus.28 = INTEGER: up(1)
IF-MIB::ifAdminStatus.29 = INTEGER: up(1)
IF-MIB::ifAdminStatus.30 = INTEGER: up(1)
IF-MIB::ifAdminStatus.31 = INTEGER: up(1)
IF-MIB::ifAdminStatus.32 = INTEGER: up(1)
IF-MIB::ifAdminStatus.33 = INTEGER: up(1)
IF-MIB::ifAdminStatus.34 = INTEGER: up(1)
IF-MIB::ifAdminStatus.35 = INTEGER: up(1)
IF-MIB::ifAdminStatus.36 = INTEGER: up(1)
IF-MIB::ifAdminStatus.37 = INTEGER: up(1)
IF-MIB::ifAdminStatus.38 = INTEGER: up(1)
IF-MIB::ifAdminStatus.39 = INTEGER: up(1)
IF-MIB::ifAdminStatus.40 = INTEGER: up(1)
IF-MIB::ifAdminStatus.41 = INTEGER: up(1)
IF-MIB::ifAdminStatus.42 = INTEGER: up(1)
IF-MIB::ifAdminStatus.43 = INTEGER: up(1)
IF-MIB::ifAdminStatus.44 = INTEGER: up(1)
IF-MIB::ifAdminStatus.45 = INTEGER: up(1)
IF-MIB::ifAdminStatus.46 = INTEGER: up(1)
IF-MIB::ifAdminStatus.47 = INTEGER: up(1)
IF-MIB::ifAdminStatus.48 = INTEGER: up(1)

[Hernandes Martins]

Creo que el error esta el la descubierta...

[mmartines]

Perdon no te entendi

[Hernandes Martins]

Hola amigo,

Mira la message de error, la descricion de la interface és "Ethernet Interface", ahora lista el comando snmpwalk com "ifDescr" y ponga el salida aca.

[mmartines]

Aqui tienes!

Gracias por todo

snmpwalk -v 2c -c public 192.168.12.234 ifDescr
IF-MIB::ifDescr.1 = STRING: Ethernet Interface
IF-MIB::ifDescr.2 = STRING: Ethernet Interface
IF-MIB::ifDescr.3 = STRING: Ethernet Interface
IF-MIB::ifDescr.4 = STRING: Ethernet Interface
IF-MIB::ifDescr.5 = STRING: Ethernet Interface
IF-MIB::ifDescr.6 = STRING: Ethernet Interface
IF-MIB::ifDescr.7 = STRING: Ethernet Interface
IF-MIB::ifDescr.8 = STRING: Ethernet Interface
IF-MIB::ifDescr.9 = STRING: Ethernet Interface
IF-MIB::ifDescr.10 = STRING: Ethernet Interface
IF-MIB::ifDescr.11 = STRING: Ethernet Interface
IF-MIB::ifDescr.12 = STRING: Ethernet Interface
IF-MIB::ifDescr.13 = STRING: Ethernet Interface
IF-MIB::ifDescr.14 = STRING: Ethernet Interface
IF-MIB::ifDescr.15 = STRING: Ethernet Interface
IF-MIB::ifDescr.16 = STRING: Ethernet Interface
IF-MIB::ifDescr.17 = STRING: Ethernet Interface
IF-MIB::ifDescr.18 = STRING: Ethernet Interface
IF-MIB::ifDescr.19 = STRING: Ethernet Interface
IF-MIB::ifDescr.20 = STRING: Ethernet Interface
IF-MIB::ifDescr.21 = STRING: Ethernet Interface
IF-MIB::ifDescr.22 = STRING: Ethernet Interface
IF-MIB::ifDescr.23 = STRING: Ethernet Interface
IF-MIB::ifDescr.24 = STRING: Ethernet Interface
IF-MIB::ifDescr.25 = STRING: Ethernet Interface
IF-MIB::ifDescr.26 = STRING: Ethernet Interface
IF-MIB::ifDescr.27 = STRING: Ethernet Interface
IF-MIB::ifDescr.28 = STRING: Ethernet Interface
IF-MIB::ifDescr.29 = STRING: Ethernet Interface
IF-MIB::ifDescr.30 = STRING: Ethernet Interface
IF-MIB::ifDescr.31 = STRING: Ethernet Interface
IF-MIB::ifDescr.32 = STRING: Ethernet Interface
IF-MIB::ifDescr.33 = STRING: Ethernet Interface
IF-MIB::ifDescr.34 = STRING: Ethernet Interface
IF-MIB::ifDescr.35 = STRING: Ethernet Interface
IF-MIB::ifDescr.36 = STRING: Ethernet Interface
IF-MIB::ifDescr.37 = STRING: Ethernet Interface
IF-MIB::ifDescr.38 = STRING: Ethernet Interface
IF-MIB::ifDescr.39 = STRING: Ethernet Interface
IF-MIB::ifDescr.40 = STRING: Ethernet Interface
IF-MIB::ifDescr.41 = STRING: Ethernet Interface
IF-MIB::ifDescr.42 = STRING: Ethernet Interface
IF-MIB::ifDescr.43 = STRING: Ethernet Interface
IF-MIB::ifDescr.44 = STRING: Ethernet Interface
IF-MIB::ifDescr.45 = STRING: Ethernet Interface
IF-MIB::ifDescr.46 = STRING: Ethernet Interface
IF-MIB::ifDescr.47 = STRING: Ethernet Interface
IF-MIB::ifDescr.48 = STRING: Ethernet Interface

[Hernandes Martins]

Hola amigo,

Mira en su switch no hay nombre en las interfaces todas estan com nombre igual "Ethernet Interface".

É necesario poner nombre en las interfaces.

Compare com outros swtiches que usted monitora.

Hasta.

[mmartines]

Vale, graicas!

Tienes razón voy a intentar poner nombre.

[mmartines]

Buenas,

una pregunta, si no tiene nombre la interface no hay forma de poder leer nada de la interficie?

Gracias por toda tu ayuda!

[Hernandes Martins]

Hola amigo,

Por LLD, creo que no, solo manual pero es muy trabajo por hacerlo todo.

Saludos
