Monitoring available Windows updates

[RohrbaGe]

Where can I get tje latest version of the script.
It sounds very interesting for me.
Will it work also with a WUS server?


ro

[eger]

Where can I get tje latest version of the script.
It sounds very interesting for me.
Will it work also with a WUS server?


ro

See the first page of this thread. It explains how to set it up.

[eger]

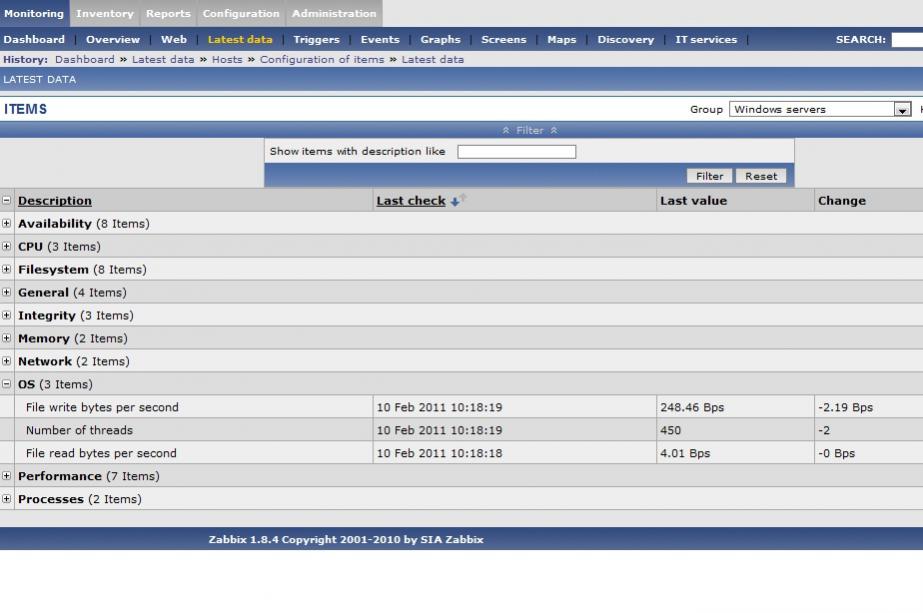

Ok, so I ran the trapper commands manually and input some test data and it's definitely making it to the Zabbix server without issue, so your script isn't the problem. It's just not updating on the web interface. See below.

Try changing the item from Numeric to Text/Character and see if there is a difference. I would post a new thread for troubleshooting the Zabbix trapper.

[alixen]

Ok, so I ran the trapper commands manually and input some test data and it's definitely making it to the Zabbix server without issue

Not really.
In your screenshot, zabbix_sender return is:

Processed 0 [B]Failed 1[/B]

so you should check again communication between zabbix_sender and Zabbix server.

Regards,
Alixen

[tiggs]

I can't believe I didn't notice that I ran the command again with the same result (screenshots below). After looking at the command again, I realized what was wrong. I'm using a proxy for this host and was trying to communicate directly with the zabbix server instead of the proxy. I changed the -z option to the proxy server and all is working well now. Hopefully, my headache will help the next person that tries to configure this with a proxy in the middle. Thanks everyone for your help!

[beeloo]

Thanks for posting this useful script. However, I have a little trouble to get this script to work. I was tried to testing this script from my windows 7 machine. The agent already installed and I could see the GREEN "Z" enabled in Zabbix server. I think the communication between the Zabbix server and Windows 7 are good.

Here is the script in my windows 7 machine:


serverName = "10.72.x.x"
hostName = "w7"
zbxSender = "C:\Program Files\Zabbix Agent\zabbix_sender.exe"

updatesHigh = 0
updatesOptional = 0

Set objSearcher = CreateObject("Microsoft.Update.Searcher")
Set objSysInfo = CreateObject("Microsoft.Update.SystemInfo")
Set objResults = objSearcher.Search("IsInstalled=0")
Set colUpdates = objResults.Updates
Set WSHShell = CreateObject("WScript.Shell")

For i = 0 to colUpdates.Count - 1

If (colUpdates.Item(i).IsInstalled = False AND colUpdates.Item(i).AutoSelectOnWebSites = False) Then
updatesOptional = updatesOptional + 1
ElseIf (colUpdates.Item(i).IsInstalled = False AND colUpdates.Item(i).AutoSelectOnWebSites = True) Then
updatesHigh = updatesHigh + 1
End IF

Next

updatesTotal = (updatesHigh + updatesOptional)

WSHShell.Exec zbxSender & " -z " & serverName & " -s " & hostName & " -k win_updates[total] -o " & updatesTotal
WSHShell.Exec zbxSender & " -z " & serverName & " -s " & hostName & " -k win_updates[high] -o " & updatesHigh
WSHShell.Exec zbxSender & " -z " & serverName & " -s " & hostName & " -k win_updates[optional] -o " & updatesOptional
WSHShell.Exec zbxSender & " -z " & serverName & " -s " & hostName & " -k win_updates[reboot] -o " & objSysInfo.RebootRequired

WScript.Quit 0


I tried to run this script manually from Windows 7 and I received below error:

C:\zabbix\wu>cscript //Job:winupdate.ksh
Input Error: There is no script file specified.


Not sure what went wrong.

Please advise.

Thanks in advance.

Beeloo

[beeloo]

After I changed the extension from winupdate.ksh to winupdate.vbs. I don't received any error when I run it manually.

C:\zabbix\wu>cscript winupdate.vbs

C:\zabbix\wu>

However, the Zabbix still not show up anything

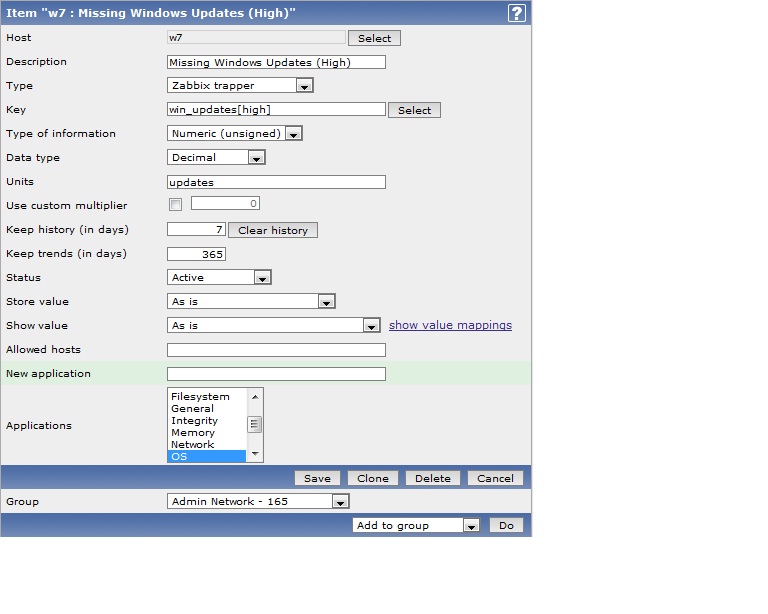

Here is I attached screenshot of one of the item configuration. If it works it should show up in the "OS" container. But it doesn't. Please advise. Thanks.

[eger]

Is the location of zabbix_sender.exe correct?

Try running the command manually from the command line and see what the output is:

zabbix_sender.exe -z 10.x.x.x -s w7 -k win_updates[total] -o 5

This should send a '5' to the win_updates[total] key and should show up in the latest data. But the output should say if it is successful or if it failed.

[beeloo]

Thanks for the reply. Here is the output.. Doesn't look good. I make sure the "zabbix_sender.exe" location is correct as well.

C:\zabbix\win32>zabbix_sender.exe -vv -z 10.72.x.x -s w7 -k win_updates[total] -o 5
zabbix_sender.exe [2776]: DEBUG: Answer [{
"response":"success",
"info":"Processed 0 Failed 1 Total 1 Seconds spent 0.000034"}]
Info from server: "Processed 0 Failed 1 Total 1 Seconds spent 0.000034"
sent: 1; skipped: 0; total: 1

By the way, I'm running version 1.8.4, no proxy setup. Just the Zabbix Server itself.

[beeloo]

As you see, I also change the "zabbix_sender.exe" location in the script.

Here is one:

serverName = "10.72.x.x"
hostName = "w7"
zbxSender = "C:\zabbix\win32\zabbix_sender.exe"

updatesHigh = 0
updatesOptional = 0

Set objSearcher = CreateObject("Microsoft.Update.Searcher")
Set objSysInfo = CreateObject("Microsoft.Update.SystemInfo")
Set objResults = objSearcher.Search("IsInstalled=0")
Set colUpdates = objResults.Updates
Set WSHShell = CreateObject("WScript.Shell")

For i = 0 to colUpdates.Count - 1

If (colUpdates.Item(i).IsInstalled = False AND colUpdates.Item(i).AutoSelectOnWebSites = False) Then
updatesOptional = updatesOptional + 1
ElseIf (colUpdates.Item(i).IsInstalled = False AND colUpdates.Item(i).AutoSelectOnWebSites = True) Then
updatesHigh = updatesHigh + 1
End IF

Next

updatesTotal = (updatesHigh + updatesOptional)

WSHShell.Exec zbxSender & " -z " & serverName & " -s " & hostName & " -k win_updates[total] -o " & updatesTotal
WSHShell.Exec zbxSender & " -z " & serverName & " -s " & hostName & " -k win_updates[high] -o " & updatesHigh
WSHShell.Exec zbxSender & " -z " & serverName & " -s " & hostName & " -k win_updates[optional] -o " & updatesOptional
WSHShell.Exec zbxSender & " -z " & serverName & " -s " & hostName & " -k win_updates[reboot] -o " & objSysInfo.RebootRequired

WScript.Quit 0

[beeloo]

I'm not sure why I can't run the winupdate.ksh script in my windows 7 machine. But when I changed it to winupdate.vbs, it seems working but I don't see any thing from the zabbix_server.log...

[eger]

Yep, it is not the script that is the problem. It is happening down the link in zabbix_sender to the zabbix server. You can see it failed:

Info from server: "Processed 0 Failed 1

So we need to solve this part.

Is there anything showing in the zabbix server log when you run the command manually?

Also, what is the version of zabbix_sender.exe? Make sure it is the same as server.

[beeloo]

I don't see anything show in the zabbix_server.log.

I assume the zabbix_sender.exe is the latest version as I just download it from zabbix.com. Anyway, how can I check it?

Please advise.

[beeloo]

The strange thing is, the windows agent seems communicate to zabbix server fine because I can see other datas pulled from the windows 7 machine (it belongs to the "template windows")

[eger]

zabbix_sender.exe -V will tell the version.

I just tested on my installed and it works fine with 1.8.3 agent and 1.8.4 server.

In your item I noticed you filled out the units field. Is this an actual name or a special field for converting the value to a specified unit? I think this might be used to do unit conversion. Try blanking out this field and trying again.
