Dell Force10 S50 and Cisco 3745 Templates

[nicholaspier]

I wanted to submit two templates I had created. I'll have more to come for Cisco, Dell and Force10 equipment.

Hopefully they find their way to the Wiki. This is my first post so I apologize if there's a more proper channel for this.

[nicholaspier]

Interfaces showing aggregate usage.

I apologize but there is an error in my template. I didn't configure the interface items properly and they're showing aggregate bandwidth rather than bandwidth / second. This updated template should resolve the issue.

[Stephen Wood]

This is awesome! Thank you for taking the time to put this together.

[nicholaspier]

You're Welcome!

None of these have made it to the wiki. However, I have more templates I'd like to contribute. Attached, are templates for more Force10 switches. I've spent a lot of time focusing on the chassis. Fan modules, power supplies, stack members are all tracked. CPU, temperture and RAM usage are also covered.

[elvar]

None of these have made it to the wiki. However, I have more templates I'd like to contribute. Attached, are templates for more Force10 switches. I've spent a lot of time focusing on the chassis. Fan modules, power supplies, stack members are all tracked. CPU, temperture and RAM usage are also covered.

Can't wait to try these as I just deployed two S4810's! Thanks!

[nicholaspier]

Glad I could help!

I don't know if you're running zabbix 2.x yet. But, if you are, this is an updated version of the template with serial numbers, stack versions and part descriptions for stack members and automatic inventorying.

http://nicholaspier.com/zabbix/templates/Teamplate%20Force10%20S4810%20Stacked.xml

[elvar]

I don't know if you're running zabbix 2.x yet. But, if you are, this is an updated version of the template with serial numbers, stack versions and part descriptions for stack members and automatic inventorying.

http://nicholaspier.com/zabbix/templ...%20Stacked.xml

Nice!! I can't wait to try this out! I don't have mine stacked but I assume I can just disable the stacking portion?

[nicholaspier]

Correct!

You'll want to disable items and triggers for both unit 2's interfaces, power supplies, fans, unit status and some items which gather inventory information.

[elvar]

You'll want to disable items and triggers for both unit 2's interfaces, power supplies, fans, unit status and some items which gather inventory information.

I just got this template going and it is working great. You even have the multiplier of 8 already set! Many thanks!

*tears of joy*

[elvar]

You don't by chance have any templates for the Dell Equallogics do ya?

[cparmar]

Your templates for the S60 Stacked have saved me hours of work, greatly appreciate you sharing these.

Do youi have any templates for graphs at all? If not, I will be creating them and possibly sharing these!

[limbooface]

Does this work with Zabbix 3.0

Does Template_Force10_S55_Stacked.xml work with zabbix 3.0?
When I try to import it, it does not say successfully imported just get a grey screen and I do not see the template in the list of templates.

[[email protected]]

I have used the same template for my 3745 Router in GNS3, but it doesn't show up. Connectivity is verified, but the SNMP doesn't show green.

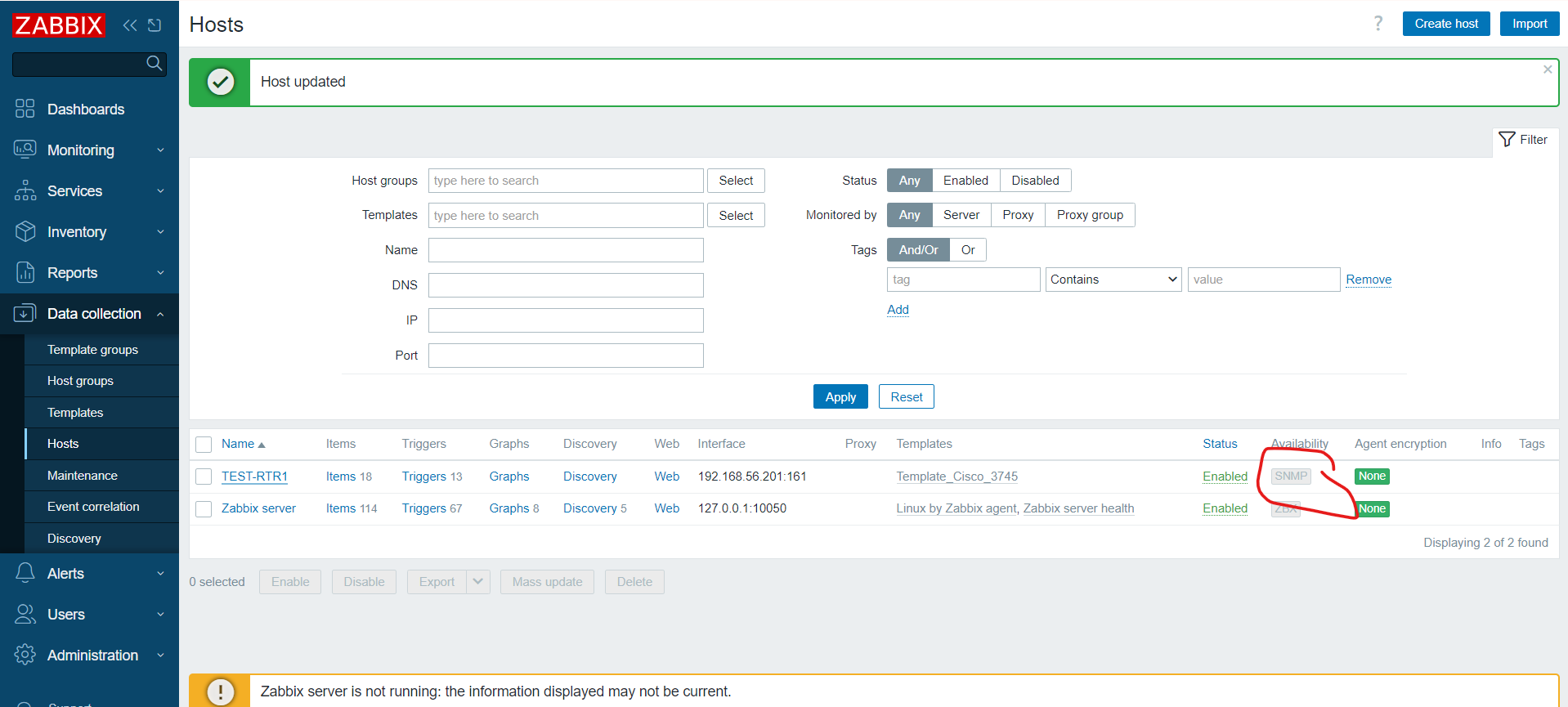

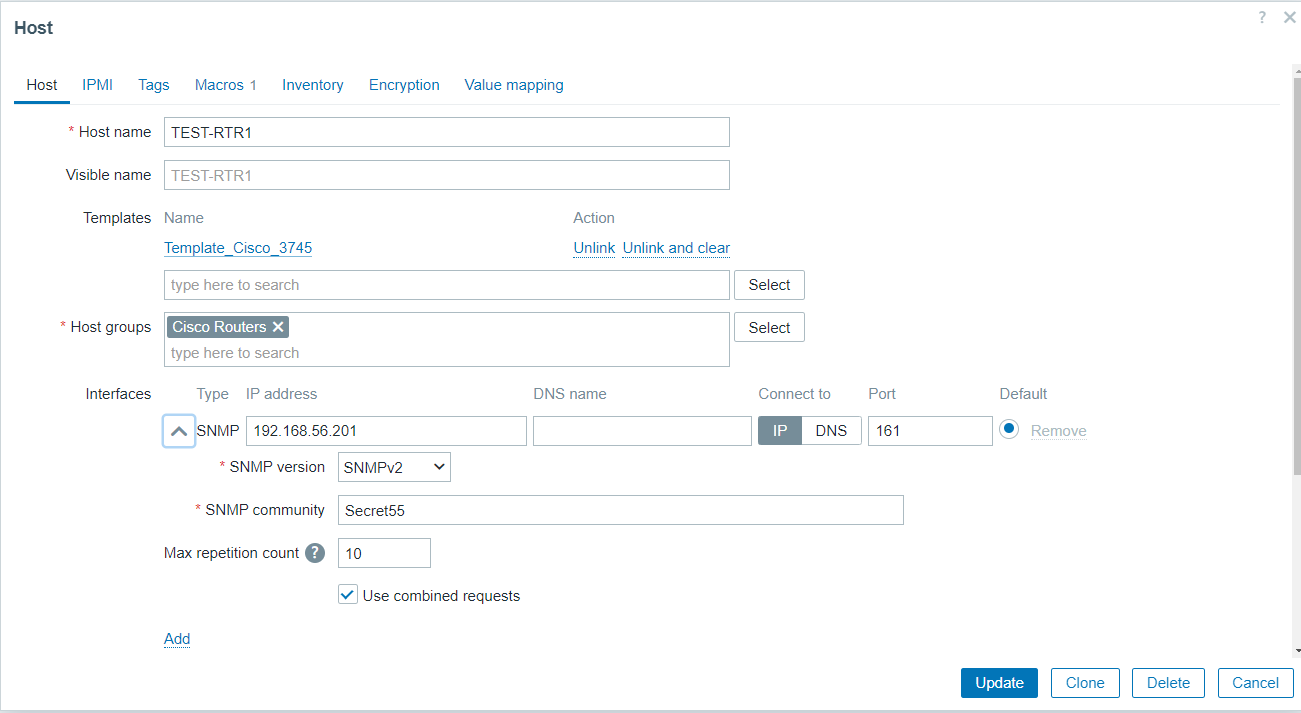

I don't know what's wrong. Please find below Cisco Config and screenshots



TEST-RTR1#sh snmp
Chassis: FTX0945W0MY
0 SNMP packets input
0 Bad SNMP version errors
0 Unknown community name
0 Illegal operation for community name supplied
0 Encoding errors
0 Number of requested variables
0 Number of altered variables
0 Get-request PDUs
0 Get-next PDUs
0 Set-request PDUs
0 Input queue packet drops (Maximum queue size 1000)
20 SNMP packets output
0 Too big errors (Maximum packet size 1500)
0 No such name errors
0 Bad values errors
0 General errors
0 Response PDUs
20 Trap PDUs

SNMP logging: enabled
Logging to 192.168.56.108.162, 0/10, 15 sent, 5 dropped.
TEST-RTR1#
