Zabbix monitoring Deye inverter over Deye Stick Logger LSE-3

[piton4ik]

Hi all, i need monitoring my Deye SUN-30K-SG01HP3 and Deye SUN-6K-SG03LP1-EU
i make template use modbus.get,
help update template to make surveys better and more efficient than they are now, maybe I'm not using all the functionality of zabbix

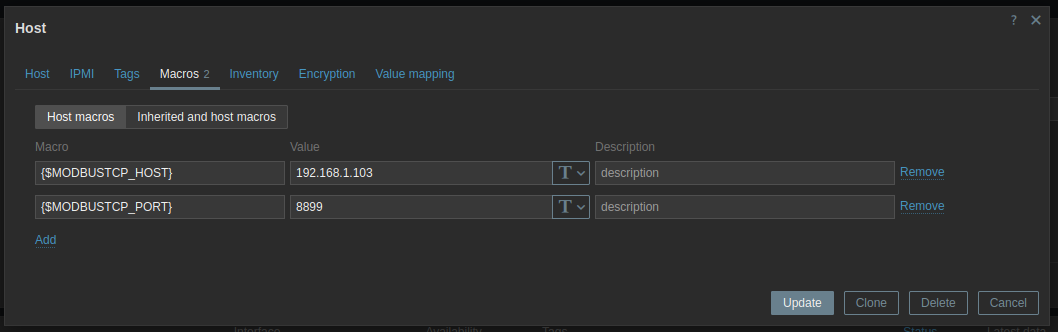

set ip addres in host settings on tab Macros




Deye-LV-Invertor-Sun6k-hosts.yaml
Deye-HV-Invertor-Sun30k-hosts.yaml
Deye-LV-Inverter-MODBUS-TCP-template.yaml
Deye-HV-Inverter-MODBUS-TCP-template.yaml

https://github.com/piton4iksh/zabbix-deye-inverter/tree/main

created Zabbix 7.2.3. © 2001–2025, Zabbix SIA

[orbital]

Hi, I have this inverter - SUN-6K-SG03LP1-EU. I added your template, entered the IP address and port, but I'm still not receiving data. Is there anything else I need to enter?

[piton4ik]

Hi, I have this inverter - SUN-6K-SG03LP1-EU. I added your template, entered the IP address and port, but I'm still not receiving data. Is there anything else I need to enter?

You use WiFi or ethernet deye stick loger?
In my example I use ethernet logger

[orbital]

I use WiFi logger. It's not connected to the official cloud, but it works great with the local Home Assistant.

[piton4ik]

Hi, I have this inverter - SUN-6K-SG03LP1-EU. I added your template, entered the IP address and port, but I'm still not receiving data. Is there anything else I need to enter?

You need edit IP only, port is static for all stick logger
