    "Null" Label on Map. Is it possible?

    Hi @:
    Is it possible to create a "host" or "trigger" inside the "Map" without put any label that associate to that host or trigger?

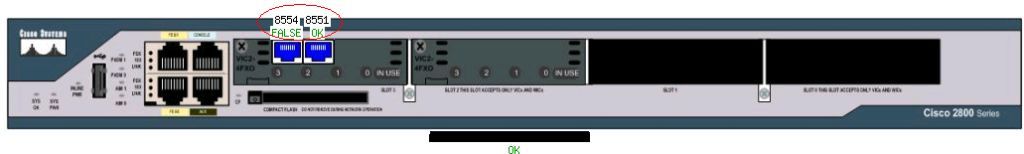

    As you can see on my attached picture, *in the circle one*, it will be nice if i can get off the label for each "FXO port" but i'll keep the label for "Router" one.

    TIA
    BEE
    Attached Files
  • Aly
    ZABBIX developer
    • May 2007
    • 1126

    #2
    Icon label type -> "nothing" in map configuration?!
    Zabbix | ex GUI developer

    Comment

    • bee
      Senior Member
      • Jun 2007
      • 133

      #3
      Thank you!
      I did not realize that

      Cheers,
      BEE

      Comment

      • Floppe
        Junior Member
        • Feb 2008
        • 14

        #4
        Did not work for me using Zabbix 1.6.1.

        Warning. Incorrect value for [label]

        Comment

        • bee
          Senior Member
          • Jun 2007
          • 133

          #5
          Hi Floppe,

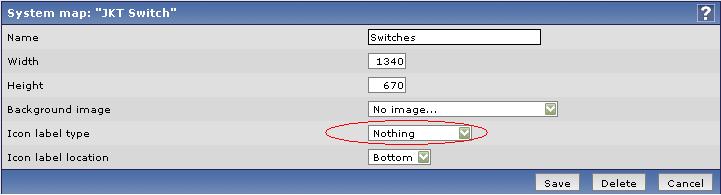

          You need to entry label's value of your host. On map configuration, ensure you set Icon label Type to 'Nothing'

          Thanks,
          BEE
          Attached Files

          Comment

          • Floppe
            Junior Member
            • Feb 2008
            • 14

            #6
            Oh, nice. Didn't cross my mind to look there. Thank you!
