icmppingloss

[fabiomc]

hi

i have zabbix 1.8.3
im trying to configure icmppingloss but i dont understand how to configure it

i have configured a host,a item icmpingloss and a trigger
{DH155:icmppingloss[<ip>,<count>,<interval>,<size>,<timeout>].last(0)}>33

but it doent run

what can i do ?

thanks
Fabio

[fabiomc]

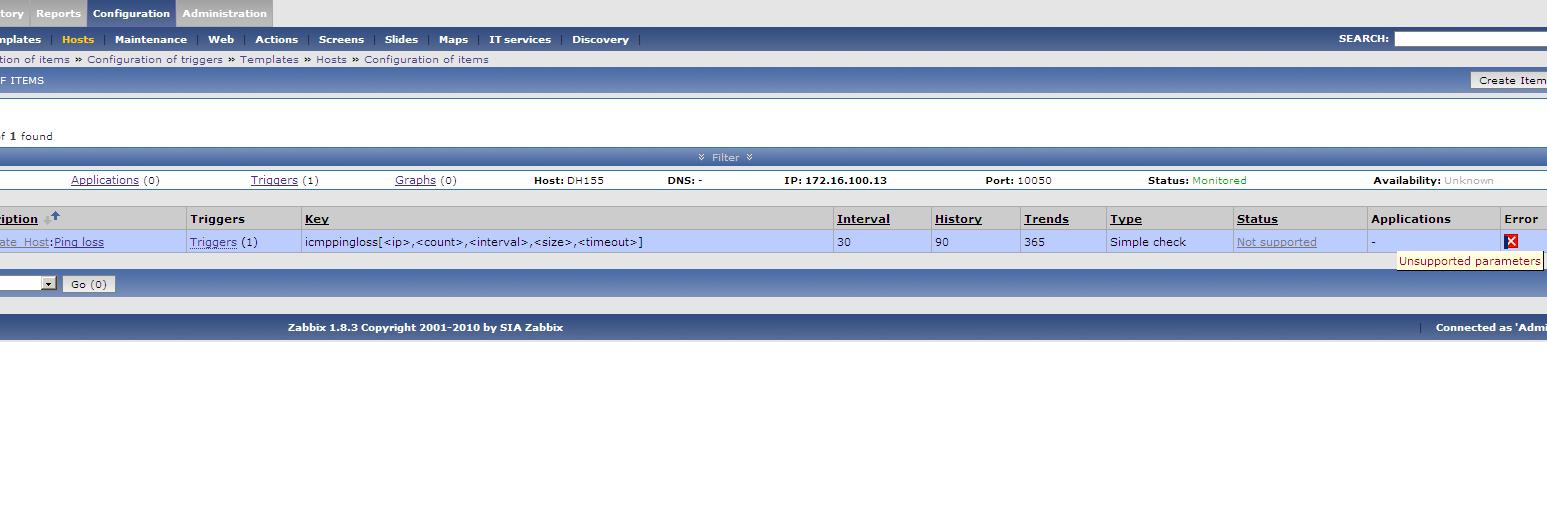

for details, i have this messagge "Not supported"

why ?

i try to enable but after some minutes,it appears same messagge.
thanks for your help

[alixen]

Hi,

{DH155:icmppingloss[<ip>,<count>,<interval>,<size>,<timeout>].last(0)}>33

Have you replaced <ip>,<count>,<interval>,<size>,<timeout> parameters with actual values ?
<something> is Zabbix notation to indicate that something is an optional parameter.
If default values are OK, you can just use icmppingloss[].

Regards,
Alixen

[fabiomc]

pingloss

in the template there is this item :icmppingloss[<ip>,<count>,<interval>,<size>,<timeout>]

i must put some parameters ?
you can put an example ?

for ip,i associated this template to a host so it should take this ip.
it's correct ?

[alixen]

Hi,

As I said before, all parameters are optional.

icmppingloss[]

should be OK.

Regards,
Alixen

[fabiomc]

Hi Alien

i have this error messagge,. what do you thinkl ?

[Hansi]

As Alixen said. These parameters are optional! Delete them and just use icmppingloss[].
If you don't delete them you must specify them!
Example:
icmpping [192.168.1.1,,,]
The words in brackets < > are placeholders!!!!

[fabiomc]

hi

as you have sayed me, without parameters it runs! thank you very much

now, i should do the ping every minutes with 10 consecutive ,if 3 packets come lost,the trigger should send me e email.

what parameters i must insert in icmppingloss ?

thank you very much again!

[Hansi]

Hello Fabio,

icmpingloss[,10,6000,,,]
This will send 10 packets in intervall of 1 minute. As a result you will get a percentage of loss. Therefore you have to create a trigger that fires if the value is equal or higher than 30 %.
But it would be better to decrease intervall and send more packets from my point of view.

You can also use an item with icmpping[] and and than have a trigger like this:
{template:icmpping.count(#10,0)}=3
This means that if the last 10 Values of this item contains 3 times the value "0" which means Ping failed the trigger is on problem state.

It depends on what you want to monitor. Detect complete loss of a connection to a system (=icmpping) or instable conditions(=icmppingloss)

[fabiomc]

hi Hansi

now i have configured in this wya but i dont receive any email

{DH155:icmppingloss[,10,6000,,,].last(0)}>30

it's correct the trigger ?
if i put it without parameters, i receive only 1 email

[fabiomc]

hi

anyone can help me please ?

i need little help to solve my problem

thank you very much for your support

[alixen]

Hi,

hi Hansi

now i have configured in this wya but i dont receive any email

{DH155:icmppingloss[,10,6000,,,].last(0)}>30

it's correct the trigger ?
if i put it without parameters, i receive only 1 email

How have you defined icmppingloss[,10,6000,,,] item ?

Regards,
Alixen

[fabiomc]

yes
but now i dont receive any email when there is the trigger

before i have changed parameters as you have said me, i received one email

[fabiomc]

as key in TEMPLATE i have put icmppingloss[,10,6000,,,]

it's correct as you have said me?

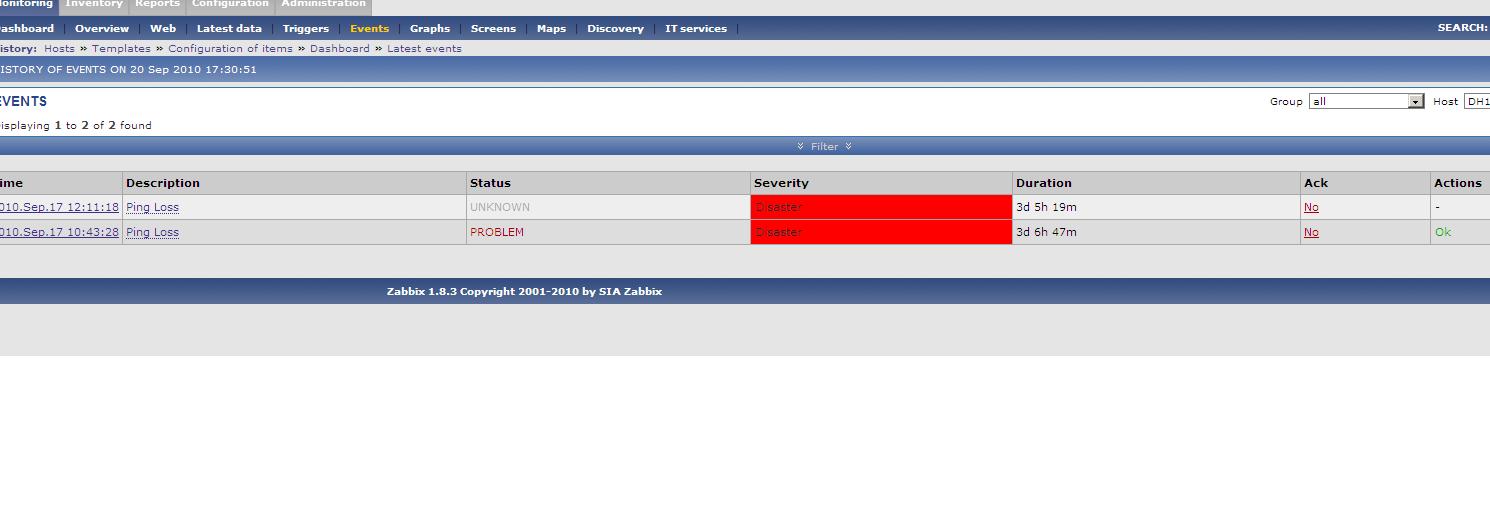

in EVENTS i have theese actions

[alixen]

Hi,

Are you sure that you want 10 packets with 6000 ms delay between packets ?
That means that your check will need 60 seconds to finish, that a lot !!
I would probably use something like 100 ms delay so that whole test takes less than one second.

Regards,
Alixen
