Looking for better switch discovery

[Evan.Anderson]

I know that during discovery we have the option to add templates to hosts. I want to perform check SNMPv2-SMI::mib-2.47.1.1.1.1.13.1001 and add a different template based on the received value, so do I need a separate discovery action for each received value? Because the received value could be 1 of many see below:

some possible values that could be received:
WS-C3750-48PS-S
WS-C3750-24PS-S
WS-C3750-24TS-S

etc..all the 3750 models.

[MrKen]

I haven't tried this but it looks do-able.

Conf --> Discovery. In 'New check' select SNMPv2 agent, community, and SNMP OID = SNMPv2-SMI::mib-2.47.1.1.1.1.13.1001

Conf --> Actions. Event source = Discovery
Create New Action condition: Received value = WS-C3750-48PS-S

Create Action operation: Operation type = Link to template
then Select the Template.

* Create a new action for each possible 'Received value'.

The theory sounds good!

MrKen

[Evan.Anderson]

Can I

I haven't tried this but it looks do-able.

Conf --> Discovery. In 'New check' select SNMPv2 agent, community, and SNMP OID = SNMPv2-SMI::mib-2.47.1.1.1.1.13.1001

Conf --> Actions. Event source = Discovery
Create New Action condition: Received value = WS-C3750-48PS-S

Create Action operation: Operation type = Link to template
then Select the Template.

* Create a new action for each possible 'Received value'.

The theory sounds good!

MrKen

Okay, so I gather that for every switch in a stack, I'd need a separate action right?

for instance if I had a stack with 3 members and 1 master,
WS-C3750-48PS-S-1
WS-C3750-48PS-S-2
WS-C3750-24PS-S-3
WS-C3750-48TS-S-4

the OID's are as follows
SNMPv2-SMI::mib-2.47.1.1.1.1.13.1001
SNMPv2-SMI::mib-2.47.1.1.1.1.13.2001
SNMPv2-SMI::mib-2.47.1.1.1.1.13.3001
SNMPv2-SMI::mib-2.47.1.1.1.1.13.4001

There is 3 different model in this example, so would that be 3(models) X 4(switches) = 12 discovery actions & 4 discovery checks?

[MrKen]

Okay, so I gather that for every switch in a stack, I'd need a separate action right?

for instance if I had a stack with 3 members and 1 master,
WS-C3750-48PS-S-1
WS-C3750-48PS-S-2
WS-C3750-24PS-S-3
WS-C3750-48TS-S-4

the OID's are as follows
SNMPv2-SMI::mib-2.47.1.1.1.1.13.1001
SNMPv2-SMI::mib-2.47.1.1.1.1.13.2001
SNMPv2-SMI::mib-2.47.1.1.1.1.13.3001
SNMPv2-SMI::mib-2.47.1.1.1.1.13.4001

There is 3 different model in this example, so would that be 3(models) X 4(switches) = 12 discovery actions & 4 discovery checks?

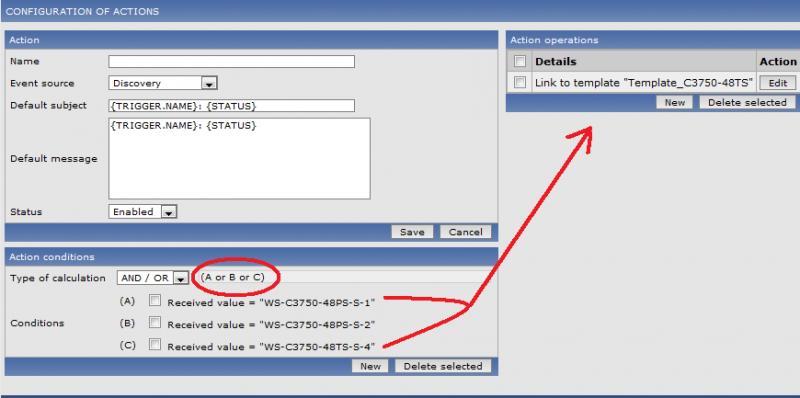

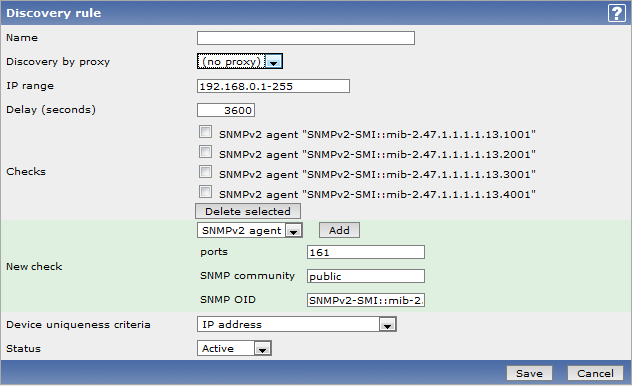

I guess that would depend on how your templates differ. If, for example, all the 48 port switches were to be using the same template, you could do it like the pix below. If that were to be suitable, then you could get away with one Discovery Rule and two Discovery Actions (1 for 24 port switch and 1 for 48 port switch), but of course it depends on the template that you want to link to the host.


MrKen
