Graph background color.

[toks]

Hi, how do I change the graph background color in Zabbix 1.8.4? I want to show a different color for weekends.

Thanks in advance, Claudio.

[Davidus]

Hi, how do I change the graph background color in Zabbix 1.8.4? I want to show a different color for weekends.

Thanks in advance, Claudio.

I’m not sure that you can set your graph to be displayed in particular colors on a certain weekdays

[JBo]

Hi,

Hi, how do I change the graph background color in Zabbix 1.8.4? I want to show a different color for weekends.

Thanks in advance, Claudio.

Have you checked «Show working time» option in graph configuration ?
With this option, week-ends have a grey background instead of white.

Regards,
JBo

[toks]

Thanks JBo, «Show working time» is checked in all graphs. But the background color doesn't change, weird...

[JBo]

Hi,

Just to be sure, are you using a non default theme ?

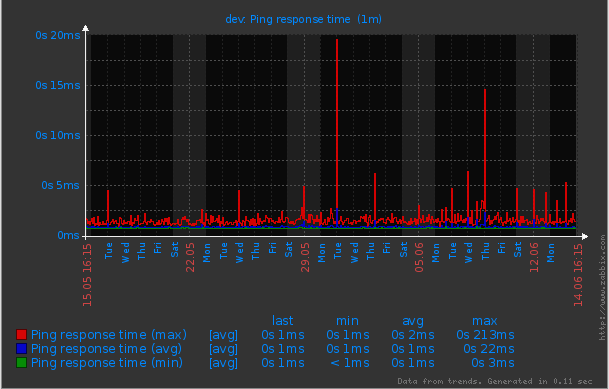

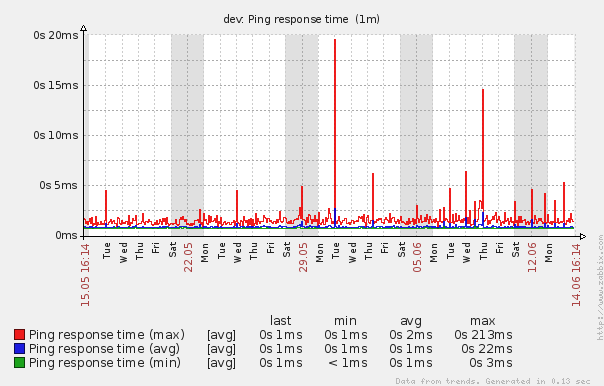

With default theme, week-ends are greyed (see graph-default.png) but not with «black and blue» theme (graph-black-blue.png).

Regards,
JBo

[toks]

I am using the "Original blue" default theme. Changed to "Dark orange" then back again, no success.

[untergeek]

Makes me wonder what version of GD you have in PHP. That sounds like it might be a place to look.

[toks]

Finally figured it out, the solution is simple: working time was "1-7,00:00-24:00;", now I changed to "1-5,00:00-24:00;" and the background color for weekends is gray.

Thanks for all!


"3.1.6 Working time"
http://www.zabbix.com/documentation/...ration#general
