Could not load map image in zabbix Map

[mastraze]

Hi,
am using zabbix 1.8. I added an image as follows:
Administration-->General and then create a new image.
I choose a simple one from openstreet.org. But when creation the map, and browsing the image just we have added i doesn't appear.

Any idea.. ? thanks in advance

[richlv]

do you see the image in the background dropdown ?

if yes, it is likely your encoding on the database/tables is incorrect - it must be utf8. convert them to utf8 and reupload image.

[mastraze]

Thanks for response,

I see the image in the list. But i wonder how to change its format utf8 in the database. I mean if there is a specific table for the image to upload..

Thanks

[richlv]

if you go to administration -> general -> images and switch to backgrounds, is the image displayed correctly ?

[mastraze]

The image is added in list but not displayed..

[Davidus]

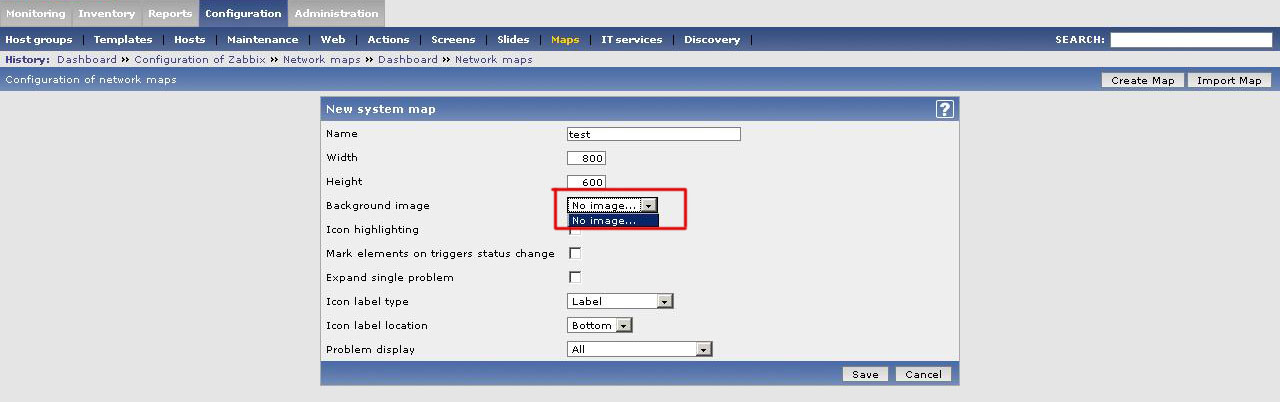

do you see your picture in following dropdown?

[skarllot]

Please paste the output to the following SQL:

SHOW CREATE TABLE `zabbix`.`images`;

[mastraze]

Thanks for reply,

I see the image in the drop list but not displayed after creating my new map.
I passed the command and it gives

| images | CREATE TABLE `images` (
`imageid` bigint(20) unsigned NOT NULL DEFAULT '0',
`imagetype` int(11) NOT NULL DEFAULT '0',
`name` varchar(64) NOT NULL DEFAULT '0',
`image` longblob NOT NULL,
PRIMARY KEY (`imageid`),
KEY `images_1` (`imagetype`,`name`)
) ENGINE=InnoDB DEFAULT CHARSET=latin1

i dont see the problem given from uploading the image...THX for help

[richlv]

run mysql against zabbix database. then :

ALTER DATABASE CHARACTER SET utf8;
ALTER TABLE images CONVERT TO CHARACTER SET utf8 COLLATE utf8_general_ci;

that should be the minimum to get you going, although i'd strongly suggest converting all the tables, just in case.

after that, reupload all the broken images

[maruscya]

run mysql against zabbix database. then :

ALTER DATABASE CHARACTER SET utf8;
ALTER TABLE images CONVERT TO CHARACTER SET utf8 COLLATE utf8_general_ci;

that should be the minimum to get you going, although i'd strongly suggest converting all the tables, just in case.

after that, reupload all the broken images

Yeahhhh !!! Fix my problem

Many thanks !
