Monitor Log File

[harishgupta111]

Hi

Hi JiP,

Did you try run the batch script from cmd? What answer you get? : Yes its showing correct value 23.

And are you viewing the graph via Monitoring->Overview and then you should see your monitored item. Then if you click on value, menu with option "show graph" is shown.: Its still showing no-data. . here is my complete Config file

# This is a config file for Zabbix Agent (Windows)
# To get more information about Zabbix, go to http://www.zabbix.com

############ GENERAL PARAMETERS #################

### Option: DebugLevel
# Specifies debug level
# 0 - no debug
# 1 - critical information
# 2 - error information
# 3 - warnings
# 4 - for debugging (produces lots of information)
#
# Mandatory: no
# Default:
DebugLevel=4

### Option: LogFile
# Name of log file.
#
# Mandatory: no
# Default:
# LogFile=

LogFile=C:\Zabbix_agentd.log

### Option: LogFileSize
# Maximum size of log file in MB.
# 0 - disable automatic log rotation.
#
# Mandatory: no
# Range: 1-1024
# Default:
# LogFileSize=1

### Option: SourceIP
# Source IP address for outgoing connections.
#
# Mandatory: no
# Default:
# SourceIP=

### Option: EnableRemoteCommands
# Whether remote commands from Zabbix server are allowed.
# 0 - not allowed
# 1 - allowed
#
# Mandatory: no
# Default:
EnableRemoteCommands=1

##### Passive checks related

### Option: Server
# List of comma delimited IP addresses (or hostnames) of Zabbix servers.
# No spaces allowed. First entry is used for receiving list of and sending active checks.
# Note that hostnames must resolve hostname->IP address and IP address->hostname.
#
# Mandatory: yes
# Default:
# Server=

Server=192.168.148.61

### Option: Hostname
# Unique hostname.
# Required for active checks and must match hostname as configured on the server.
#
# Default:
# Hostname=system.uname

Hostname=OrderPath

### Option: ListenPort
# Agent will listen on this port for connections from the server.
#
# Mandatory: no
# Range: 1024-32767
# Default:
ListenPort=10050

### Option: ListenIP
# Agent will listen on the specified interface.
#
# Mandatory: no
# Default:
# ListenIP=0.0.0.0

# ListenIP=192.168.148.82

### Option: DisablePassive
# Disable passive checks. The agent will not listen on any TCP port.
# Only active checks will be processed.
# 0 - do not disable
# 1 - disable
#
# Mandatory: no
# Default:
# DisablePassive=0

##### Active checks related

### Option: DisableActive
# Disable active checks. The agent will work in passive mode listening for server.
#
# Mandatory: no
# Default:
DisableActive=0
UnsafeUserParameters=1
# DisableActive=1

### Option: ServerPort
# Server port for retrieving list of and sending active checks.
#
# Mandatory: no
# Default:
ServerPort=10051

### Option: RefreshActiveChecks
# How often list of active checks is refreshed, in seconds.
#
# Mandatory: no
# Range: 60-3600
# Default:
RefreshActiveChecks=120

### Option: BufferSend
# Do not keep data longer than N seconds in buffer.
#
# Mandatory: no
# Range: 1-3600
# Default:
# BufferSend=5

### Option: BufferSize
# Maximum number of values in a memory buffer. The agent will send
# all collected data to Zabbix Server or Proxy if the buffer is full.
#
# Mandatory: no
# Range: 1-65535
# Default:
# BufferSize=100

### Option: MaxLinesPerSecond
# Maximum number of new lines the agent will send per second to Zabbix Server
# or Proxy processing 'log' and 'eventlog' active checks.
# The provided value will be overridden by the parameter 'maxlines',
# provided in 'log' or 'eventlog' item key.
#
# Mandatory: no
# Range: 1-1000
# Default:
# MaxLinesPerSecond=100

############ ADVANCED PARAMETERS #################

### Option: StartAgents
# Number of pre-forked instances of zabbix_agentd that process passive checks.
#
# Mandatory: no
# Range: 1-16
# Default:
StartAgents=5

### Option: Timeout
# Spend no more than Timeout seconds on processing
#
# Mandatory: no
# Range: 1-30
# Default:
# Timeout=3

### Option: Include
# You may include individual files or all files in a directory in the configuration file.
#
# Mandatory: no
# Default:
# Include=

# Include=c:\zabbix\zabbix_agent.userparams.conf
# Include=c:\zabbix\zabbix_agentd\

####### USER-DEFINED MONITORED PARAMETERS #######

### Option: UserParameter
# User-defined parameter to monitor. There can be several user-defined parameters.
# Format: UserParameter=<key>,<shell command>
# Note that shell command must not return empty string or EOL only.
# Example: UserParameter=system.test,echo 1
UserParameter=key.in.zabbix.frontend[*],C:/TEMP/test.bat $1

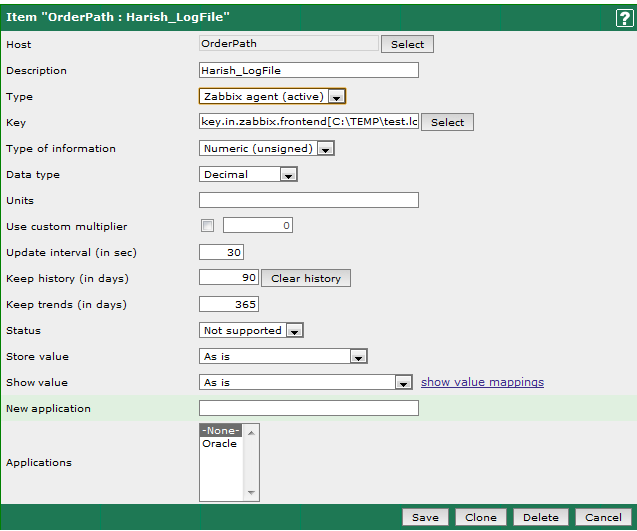

and in UI:->

[JiP]

Change in zabbix frontend -
from Key: key.in.zabbix.frontend
to Key: key.in.zabbix.frontend[c:/path/to/log/file]

and set type:zabbix agent (active)

[hirschnf]

Another thing can be the slashes in the userparameter.

Change C:/TEMP/test.bat to C:\TEMP\test.bat

[harishgupta111]

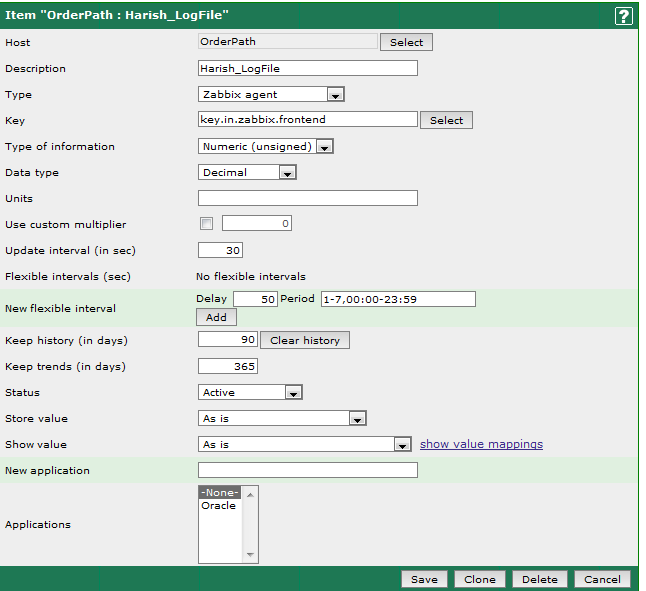

its saying "Not supported" in status. Do we need to some changes in Item. I m pasting the screen shot please check

[hirschnf]

Keep it simple - so only define the key without parameters.
So in the key field should only be

key.in.zabbix.frontend

In the zabbix_agentd.conf you should define your userparameter
without[*] and $1

Parameters you can test in further steps.

Change these things, enable your item and test it again...
(the item should be supported!)

don't worry

[harishgupta111]

Hi

Hi Frank,

Thanks for help

I did the changes in config. file and in Item. And still its saying not supported. Here is the information from Log file:-

2952:20111125:111031.754 In process_value() key:'OrderPath:key.in.zabbix.frontend' value:'ZBX_NOTSUPPORTED
2952:20111125:111031.759 Active check [key.in.zabbix.frontend] is not supported. Disabled.

[JiP]

Did you restart zabbix_agentd with modified conf file?

[harishgupta111]

Hi

Hi JiP,

yes I did. Infact I check the file with command zabbix_agentd.exe -c c:\zabbix_agentd.conf -t key.in.zabbix.frontend and it also showing the correct value.

[harishgupta111]

Also i checkd on server with command zabbix_get -s 192.168.148.82 -k key.in.zabbix.frontend
Result:-ZBX_NOTSUPPORTED

[harishgupta111]

Hi JiP

Hi,

Any solution

[JiP]

I just checked similar situation with my zabbix. And last chance is - change "C:\Temp\test.log" to "C:/Temp/test.log" and make sure the timeout is sufficient. :-)

[harishgupta111]

Hi

Hi Frank, JiP,

Thanks guys for support. Actually I just tried this key:-
UserParameter=key.in.zabbix.frontend,for /F %x in ('findstr /r /n "ERROR" C:\temp\test.log ^| find /C ":"') do echo %x
and Type= Zabbix Trapper
and Key= key.in.zabbix.frontend

And then I checked on server by command:-
zabbix_get -s 192.168.148.82 -k key.in.zabbix.frontend

its giving me result-> C:\Windows\system32>echo %23
%23

As I am checking its giving me correct count 23. But from this result i need only 23 not the complete string. I tried but didn't get the correct solution. So pls chk this and give me some idea. Thanks in advance guys.

[hirschnf]

Why do it so complicated?

Do an easy test:
UserParameter=test.zabbix.item,cmd /c echo 99

Your item should get the value 99, every time


and this is my item:

Type = zabbix agent
Key = key.in.zabbix.frontend
Type of information = numeric unsigned
data type = decimal
status = active
update interval = 30 seconds

After you create the item and update your zabbix_agentd.conf restart your agent and after 30 seconds you will see the first value...

test it...

[harishgupta111]

Hi

Hi Frank,

UserParameter=test.zabbix.item,cmd /c echo 99

Yes, you are right, this will give me the value 99 everytime.

But this is like hardcode. My requirement is to check the log file and get the count of some particular word and then return back that count.

Thanks

[harishgupta111]

Thanks JiP, Frank

Hi guys.

Just wann say thanks to both of you. Finally my problem is solved.

thanks 2 both of you.


Regards
harishgupta111
