V2.0.2 snmp and cisco

[Alex_SYB]

Hi

Seems like the auto discovery for process snmp doesn't seemed to be working on cisco routers

snmpwalk -c pp -v 2c dcsw1 HOST-RESOURCES-MIB::hrProcessorLoad
doesn't work were are

snmpwalk -c pp-v 2c dcsw1 1.3.6.1.4.1.9.9.109.1.1.1.1.5.1

does work. So is hrProcessorLoad wrong..

Does somebody have an template for cisco routers with discovery rules ?

[ghillan]

Hi

Seems like the auto discovery for process snmp doesn't seemed to be working on cisco routers

snmpwalk -c pp -v 2c dcsw1 HOST-RESOURCES-MIB::hrProcessorLoad
doesn't work were are

snmpwalk -c pp-v 2c dcsw1 1.3.6.1.4.1.9.9.109.1.1.1.1.5.1

does work. So is hrProcessorLoad wrong..

Does somebody have an template for cisco routers with discovery rules ?

I could be wrong but as far i can see the problem its not the router or zabbix. Infact you cand recognize the OID names with snmpwalk.The problem its simply that your linux box ( where you make snmpwalk) dont have the MIB for those OIDs. You should look for a MIB that include Cisco propietary OIDS and the use it when you use snmpwalk ( with -m ).

[Alex_SYB]

hi

no not really. But it is the wrong oid for a router.. That oid is for ... well I think a pc/server..

Found the right oid


This document seems to cover it

http://www.cisco.com/en/US/tech/tk648/tk362/technologies_tech_note09186a0080094a94.shtml

Alex

[limo]

Cisco SNMP dynamic template

Hi to all,

I am sending working SNMP autodiscovery template for Cisco devices. It should work for other SNMP switches too. It supports interfaces monitoring, CPU, Temperature and Fans. Feel free to use. It can be used for L3 switches too but it does not include L3 informations. We tested on 2950s , 2960s, 6500, 3750 and some HP procurves.

Should work in zabbix 2.0+

[sabbirjoy]

about snmp template

Hi to all,

I am sending working SNMP autodiscovery template for Cisco devices. It should work for other SNMP switches too. It supports interfaces monitoring, CPU, Temperature and Fans. Feel free to use. It can be used for L3 switches too but it does not include L3 informations. We tested on 2950s , 2960s, 6500, 3750 and some HP procurves.

Should work in zabbix 2.0+

I have tried actually to add your template in zabbix 2 for cisco devices. but when i am going to import this in template ,its not loading and showing so many errors. can you kindly look again... really ,it will be a great help for the community and specially for me if it works correctly

[limo]

I have tried actually to add your template in zabbix 2 for cisco devices. but when i am going to import this in template ,its not loading and showing so many errors. can you kindly look again... really ,it will be a great help for the community and specially for me if it works correctly

Please which errors it generates? For me it works good.

[mbsit]

Hi
There is bug in 2.0.0 when you try to import Templates.
Upgrade at least frontend to the version 2.0.2

Bests,
Grzegorz

[sabbirjoy]

about cisco template

Please which errors it generates? For me it works good.

hi limo , i got one suggestion from mbsit, i will try to upgrade my frontend, and after that if i get also the same problem ,i will write you with one screenshots to you for your convenience to analyze...

[sabbirjoy]

about enterasys switch

Hi to all,

I am sending working SNMP autodiscovery template for Cisco devices. It should work for other SNMP switches too. It supports interfaces monitoring, CPU, Temperature and Fans. Feel free to use. It can be used for L3 switches too but it does not include L3 informations. We tested on 2950s , 2960s, 6500, 3750 and some HP procurves.

Should work in zabbix 2.0+

hi, I am trying to find the snmp oid 1.3.6.1.4.1.5624.1.2.49.1.1.1.1.4 for enterasys switches to get its cpu load, and i got reply if i make a snmpwalk ,but if i put this snmp oid in zabbix ,its not giving me any value ,just saying "not supported and no such instance is currently exist"
Do you have any solution for that ?

[Ejdesgaard]

Can't get Template_Cisco_SNMP_Autodiscovery to work

Hi zabbix community

First of all, i'm quite new to zabbix, but here goes.

I have added the template to a catalyst 3560 with the following configuration:

snmp-server user ROUSER ROGROUP v2c
snmp-server group ROGROUP v2c read ROVIEW access 10
snmp-server view ROVIEW mib-2 included
snmp-server view ROVIEW cisco included
snmp-server community ROCOMMUNITY RO 10
snmp ifmib ifindex persist

and I have changed the community strin from public to ROUSER in the template.

I have also changed the discovery_rule -> snmp_oid's on ifDescr and ifAlias, to IF-MIB::ifDescr and IF-MIB::ifAlias.

But the only information I get is "CPU" and "Simple Check"

If I on the other hand run:

snmpwalk 192.168.1.250 -v2c -c ROUSER IF-MIB::ifDescr

I get a list of all the interfaces on the switch, so the data is accessable, but doesn't show up in zabbix...

[limo]

Functional template

Hi to all,

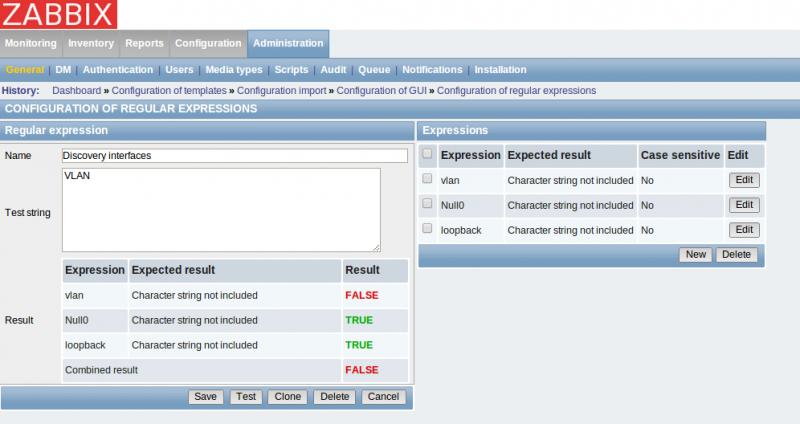

template is just working for us. I am sending latest version. Please note. It is critical to set regular expressions filter before importing template. Look into attached pic.

So, define regexp conditions, import template and enjoy. Main problem is that discovery finds even interfaces which has not all snmp values included (like null). So you have to filter it during discovery.

[jackal]

Hi to all,

template is just working for us. I am sending latest version. Please note. It is critical to set regular expressions filter before importing template. Look into attached pic.

So, define regexp conditions, import template and enjoy. Main problem is that discovery finds even interfaces which has not all snmp values included (like null). So you have to filter it during discovery.

hi
I test to import the template to zabbix server,
made a group with name 'cisco' firstly.
and made a conditions likes your note.
but got a error when importing the file:

Empty filter condition macro for discovery rule "Interfaces descriptions".

how to solved?

thanks a lot.
