How to graph multiple discovered items on one graph template

[Dmitry]

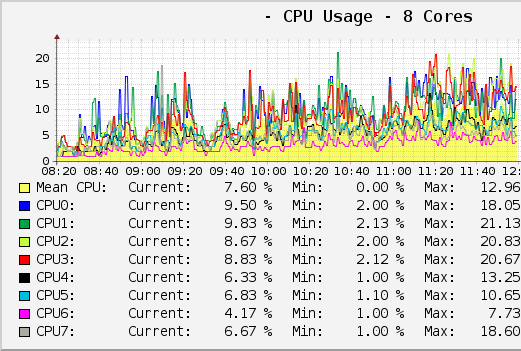

Please advise how can I build graph prototype for a standard "Template SNMP Processors" so it displays all discovered CPUs on one graph. Something like on attached screenshot. Thanks!

In the same way I'm going to graph auto-discovered SNMP OIDs for Asterisk based on discovered data as listed bellow. I've build a discovery rule with a graph prototype which graphs every type of channel in a separate graph.
As a next step I would like to aggregate this information and display info about all discovered channels on the same graph. Please advise how it can be done.

ASTERISK-MIB::astNumChanTypes.0 = INTEGER: 7

ASTERISK-MIB::astChanTypeName.1 = STRING: DAHDI
ASTERISK-MIB::astChanTypeName.2 = STRING: IAX2
ASTERISK-MIB::astChanTypeName.3 = STRING: Local
ASTERISK-MIB::astChanTypeName.4 = STRING: MGCP
ASTERISK-MIB::astChanTypeName.5 = STRING: Console
ASTERISK-MIB::astChanTypeName.6 = STRING: Phone
ASTERISK-MIB::astChanTypeName.7 = STRING: SIP

ASTERISK-MIB::astChanTypeChannels.1 = Gauge32: 0
ASTERISK-MIB::astChanTypeChannels.2 = Gauge32: 2
ASTERISK-MIB::astChanTypeChannels.3 = Gauge32: 0
ASTERISK-MIB::astChanTypeChannels.4 = Gauge32: 0
ASTERISK-MIB::astChanTypeChannels.5 = Gauge32: 0
ASTERISK-MIB::astChanTypeChannels.6 = Gauge32: 0
ASTERISK-MIB::astChanTypeChannels.7 = Gauge32: 2

Thanks!

[Dmitry]

I'm wondering if it even possible with Zabbix?

[qlixed]

Maybe you need to use Low Level Discovery with templated Graphs, i think that that is a good way to solve it.
--------------------
Edit: Re-read the request!:
Ok, i think if you do a Agregate item, you can calculate the avg of all the cpu and made a graph, but i don't exactly figure out how to add all the other items automatically.

[maruscya]

Maybe you need to use Low Level Discovery with templated

Ciao !

Could you explain better, how to do that ?

Many thanks !

[aib]

Sorry, but it's impossible now.
Even if you use LLD, you can create individual items for all CPU's and individual graphs.

But, then you have to manually create the Aggregated Graph and update it when you need any changes.

[maruscya]

Sorry, but it's impossible now.
Even if you use LLD, you can create individual items for all CPU's and individual graphs.

But, then you have to manually create the Aggregated Graph and update it when you need any changes.

Many Thanks !!

[Slash]

Look at this thread: https://www.zabbix.com/forum/showthread.php?t=26678

It still works for Zabbix 2.4.1
