    Displaying network traffic per second

    Hi.
    I have hooked up the stat net.if.in/out(eth1) and it gives me a running total of data going in and out, is there a way to display this as data / t rather than a total? It would be much more useful for graphing.

    I'm using
    Zabbix 2.0.7 Ubuntu 13.x.x

    Cheers
  • tchjts1
    Senior Member
    • May 2008
    • 1605

    #2
    2.0.7 has low level discovery rules associated with each OS template that will automatically detect interfaces and create traffic in/out graphs on your interfaces...

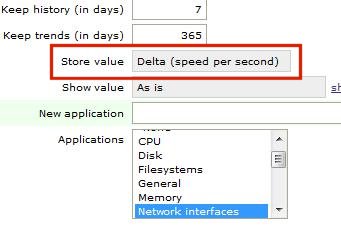

    But if you are doing it manually, then be sure you have Store Value set to Delta speed per second.
    Attached Files
