Graph clutter

[jasonw]

I would like to have a support page where some of the NOC team can look at dozens of graphs at once. I am using a link like this:

http://zabbix.mydomain.com/zabbix/chart.php?itemid=23876&width=300&height=100

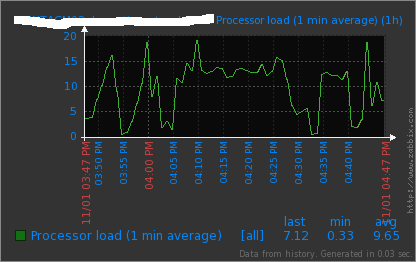

But, as you can see from the image, the actual graph is very small because of the legend information and because of the orientation of the time stamps. There is also a lot of whitespace to the left of the graph.

Is there any what that I can clean this up a bit so that the actual line graph fills up more of the box?

I tried "legend=0" but that doesn't seem to work...

[tchjts1]

Have you tried creating a screen of graphs? There you can size the graph however you like. Do that in Configuration --> Screens

[jasonw]

Have you tried creating a screen of graphs? There you can size the graph however you like. Do that in Configuration --> Screens

That does not meet our requirements. We are looking to view the graph outside of the Zabbix UI into another dashboard. Also, what do you consider the "graph"? I consider the "graph" to be the thing with the plotted values and not the title, legend, time stamps and other whitespace outside of the actual x and y axis. I am trying to figure out how to reduce some of that whitespace that surrounds the actual graph...

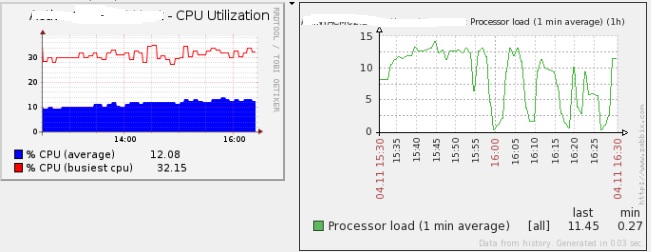

Consider this attachment. The graph on the left is from Cacti. The one on the right is from Zabbix. Do you see how much more concise the one from Cacti is? I want to get the Zabbix one to look like that one... The idea is that I can put a bunch of graphs on other pages and then if one looks like a concern, then they can click on it and lead them back to the Zabbix UI.
