zabbix_get command works but GUI indicates unsupported key

[ergo18]

Hi all,
after installing systemd monitoring for Zabbix on a host,i'm able to retrieve the info with a zabbix_get command from the server.
attempting to insert the key into the GUI results in "Key unsupported"

user@zabbix-server:~# zabbix_get -s host -p 10050 -k systemd.service.info[openlava]
0

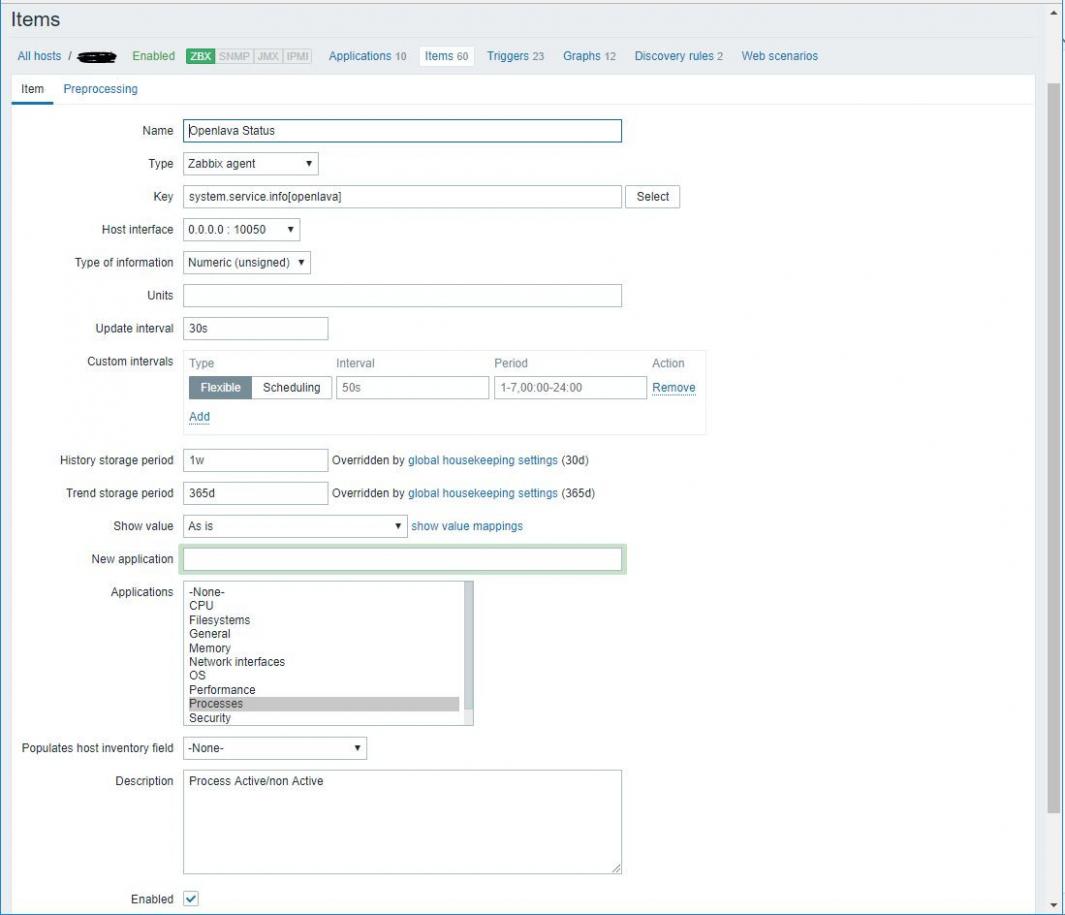

zabbix GUI Settings
---------------------------

• Name
• Type
  Zabbix agentZabbix agent (active)Simple checkSNMPv1 agentSNMPv2 agentSNMPv3 agentSNMP trapZabbix internalZabbix trapperZabbix aggregateExternal checkDatabase monitorIPMI agentSSH agentTELNET agentJMX agentCalculatedDependent item
• Key
  Select
• Host interface
  0.0.0.0 : 10050
• Type of information
  Numeric (unsigned)Numeric (float)CharacterLogText
• Units
• Update interval
• Custom intervals

  Flexible Scheduling			Remove
  Add

• History storage period
  Overridden by global housekeeping settings (30d)
• Trend storage period
  Overridden by global housekeeping settings (365d)
• Show value
  As is0:No, 1:YesAPC Battery Replacement StatusAPC Battery StatusDell Open Manage System StatusHost statusHP Insight System StatusNetApp AutosupportStatusNetAppcfInterconnectStatusNetAppc fPartnerStatusNetAppCfSettingNetAppCfStateNetApp CifsIsEnabledNetApp ClusterInterconnectStatusNetApp ClusterPartnerStatusNetApp ClusterSettingNetApp ClusterStatusNetApp EnvOverTemperatureNetApp FcpTargetStatusNetAppFcpTgtStatusNetApp FSOverallStatusNetAppFsStatusNetAppGlobalStatusNet App GlobalStatusNetApp LunOnlineNetAppLunOnlineNetApp LunSnapStatusNetAppNvramBatteryStatusNetAppOverTem pNetApp RaidStatusNetAppRaidStatusNetAppSpareStatusNetApp SpareStatusNetApp VolStatusNetAppVolStatusReachableService stateSNMP (Type: CiscoEnvMonState)SNMP device status (hrDeviceStatus)SNMP interface status (ifAdminStatus)SNMP interface status (ifOperStatus)VMware statusVMware VirtualMachinePowerStateWindows service stateZabbix agent ping statusshow value mappings
• New application
• Applications
  -None-CPUFilesystemsGeneralMemoryNetwork interfacesOSPerformanceProcessesSecurityZabbix agent
• Populates host inventory field
  -None-TypeType (Full details)NameAliasOSOS (Full details)OS (Short)Serial number ASerial number BTagAsset tagMAC address AMAC address BHardwareHardware (Full details)SoftwareSoftware (Full details)Software application ASoftware application BSoftware application CSoftware application DSoftware application EContactLocationLocation latitudeLocation longitudeNotesChassisModelHW architectureVendorContract numberInstaller nameDeployment statusURL AURL BURL CHost networksHost subnet maskHost routerOOB IP addressOOB subnet maskOOB routerDate HW purchasedDate HW installedDate HW maintenance expiresDate HW decommissionedSite address ASite address BSite address CSite citySite state / provinceSite countrySite ZIP / postalSite rack locationSite notesPrimary POC namePrimary POC emailPrimary POC phone APrimary POC phone BPrimary POC cellPrimary POC screen namePrimary POC notesSecondary POC nameSecondary POC emailSecondary POC phone ASecondary POC phone BSecondary POC cellSecondary POC screen nameSecondary POC notes
• Description
• Enabled

item status
---------------

Openlava Status

system.service.info[openlava]

30s

1w

365d

Zabbix agent

Processes

Not supported

will appreciate any pointers to set this correctly.
thanks

[aigars.kadikis]

Hi, ergo18!

It is hard to conclude which values you have selected in item configuration cause in information provided there are all options available.
Do you have a real IP address configured in your host field?

Please provide more eye catching screenshot

[ergo18]

Hi aigars.kadikis,

thank you for looking into this.
this is my first attempts with Zabbix and im trying to build on the work of someone who already left and learn on the fly
i need to monitor service that is set as systemd so i've installed the "zabbix-module-systemd" module
from what i could figure out, it is set to use DNS as the hosts are set by their name rather their IP

please see attached screen shots to clear our settings and my atempt to create a new item

thanks

[kloczek]

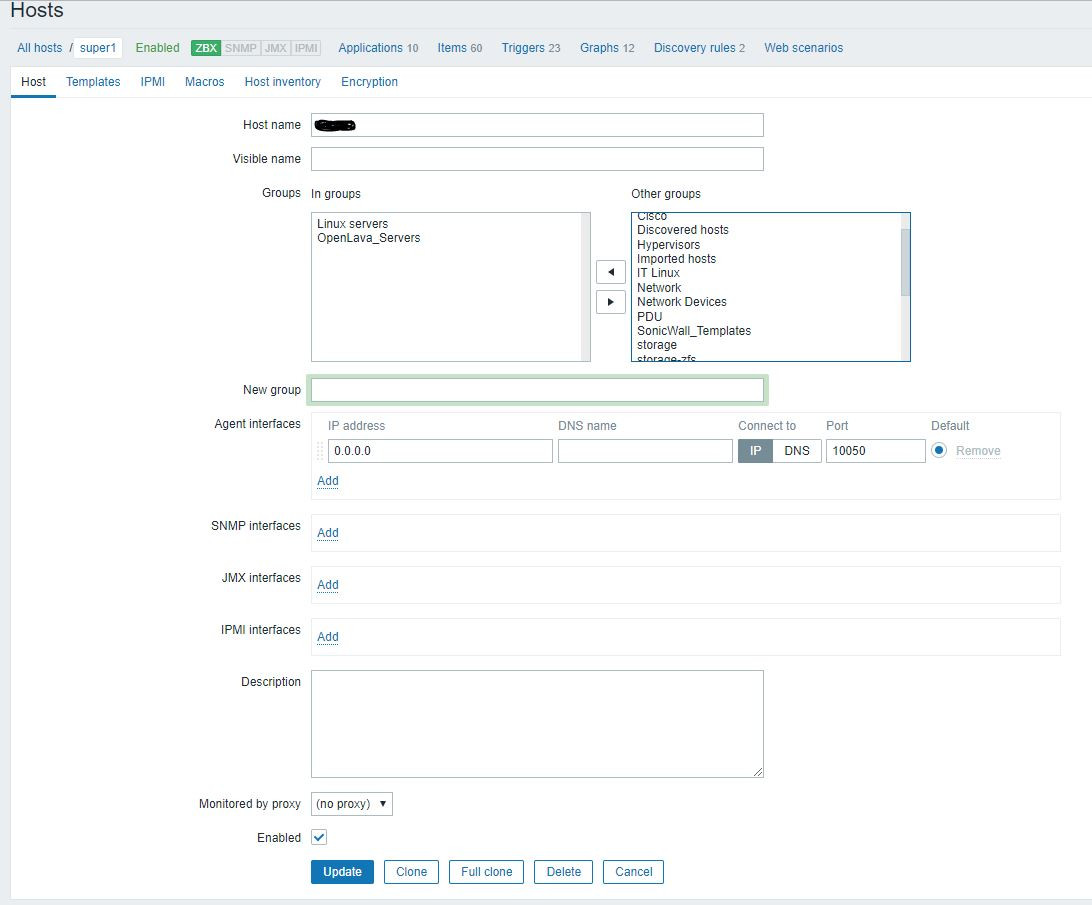

Look on your host interface address. It is 0.0.0.0. 0.0.0.0 it is special address used on the host and it means any address which is configured on the host (in this case on the host where is running zabbix server).

[ergo18]

thanks for the response kloczek,

i'm using the same settings as other Items that are configured and work.

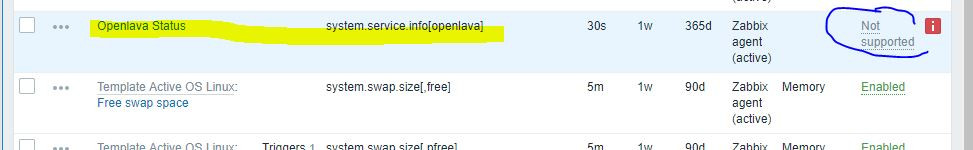

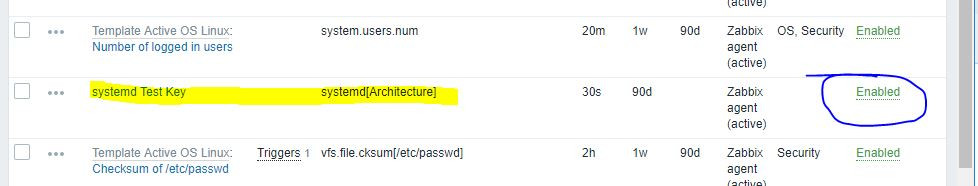

ive created 2 items for systemd module (for linux) and while one seems to be working, the other one shown as unsupported key.

[ergo18]

tried to add the images in order, unfortunately got worse

[aigars.kadikis]

Hi, ergo18!

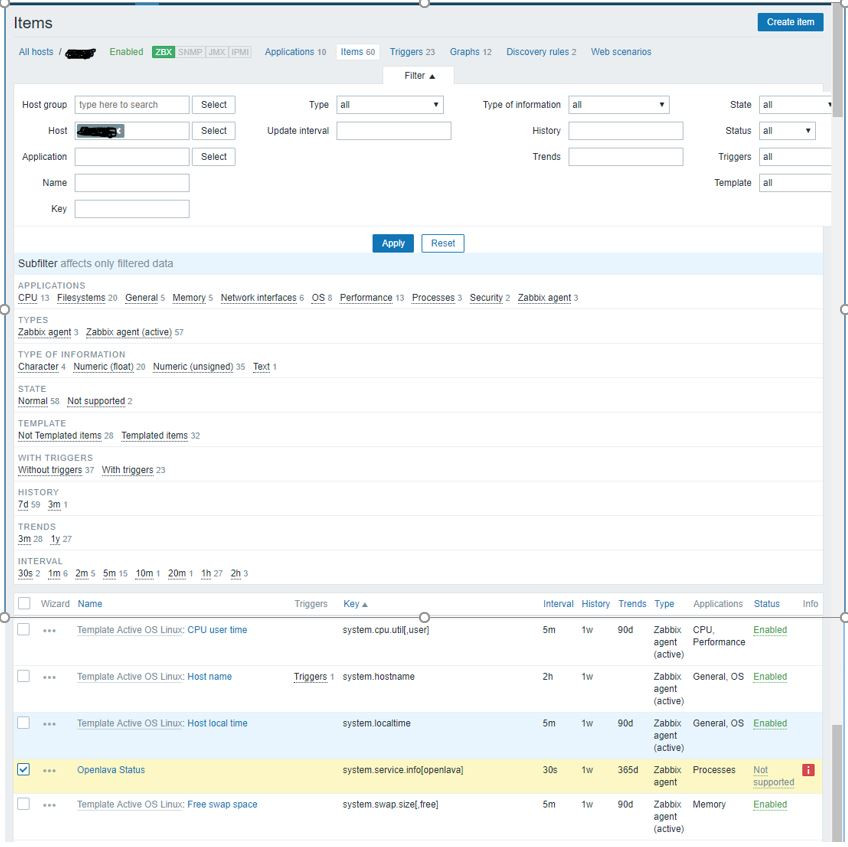

It looks like you are using active checks only. Your set of screenshot really gives some context.

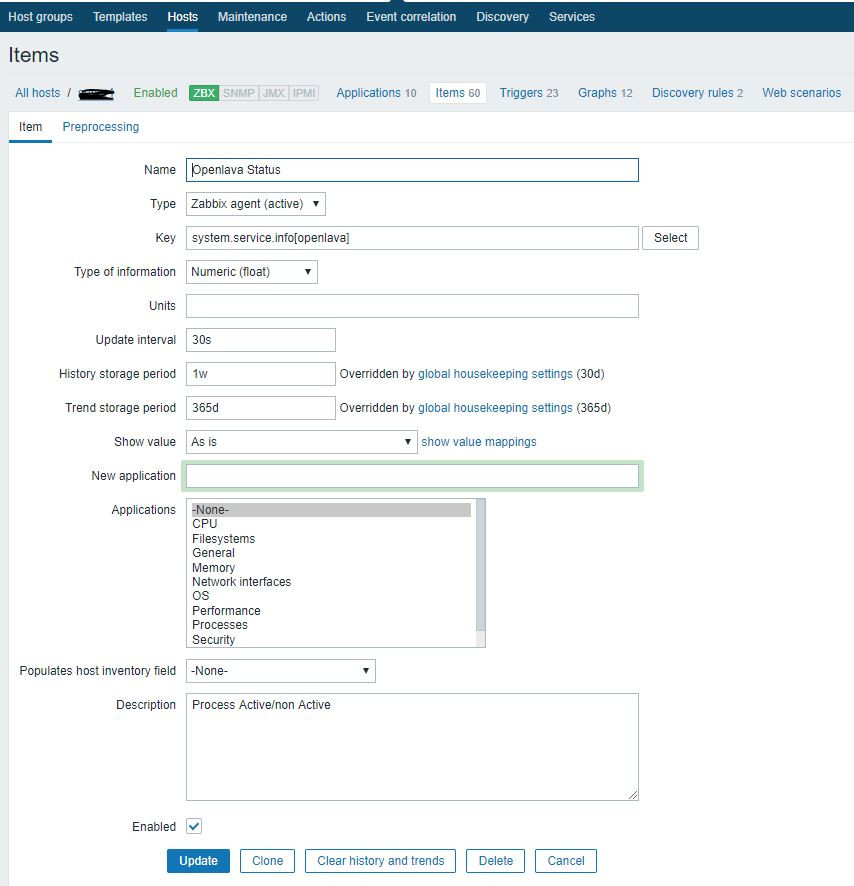

I believe if you switched systemd.service.info[openlava] item type from "Zabbix Agent" to "Zabbix Agent (active)" then it can work.
Fingers crossed!

Once you selected the type to be "Zabbix Agent (active)" you need to wait ~60 seconds for the changes to sync to the database. Then you need to restart zabbix agent:
systemctl restart zabbix-agent
After restarting zabbix-agent the value should come to the server instantly.

Regards,
Aigars

[ergo18]

hi Aigars,

seems that it is now working.

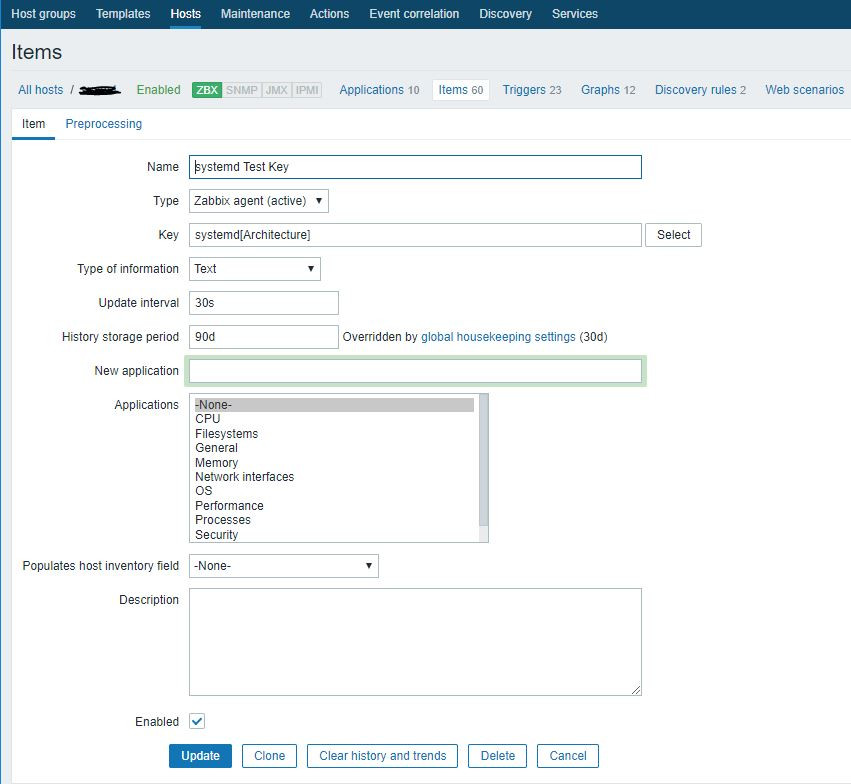

when i recreated the key in one of the attempts to make it work, i missed the d of systemd (in the example screenshots) but even after i corrected the key name it didnt work.
i had to restart zabbix-server and only then the key was enabled.

at least it is now working.

thanks for your help.
