Hello. I am new to Zabbix and trying to understand how it works.
I read documentation, and built a simple configuration.
I managed to catch item via snmptrap.fallback item. Next step is to raise trigger alert when SNMPv2-SMI::enterprises.9999.1.1.1.1.3 type=2 value=INTEGER: 10 variable is bigger than 10
The value received by snmp.fallback item is:
Here is my configuration:

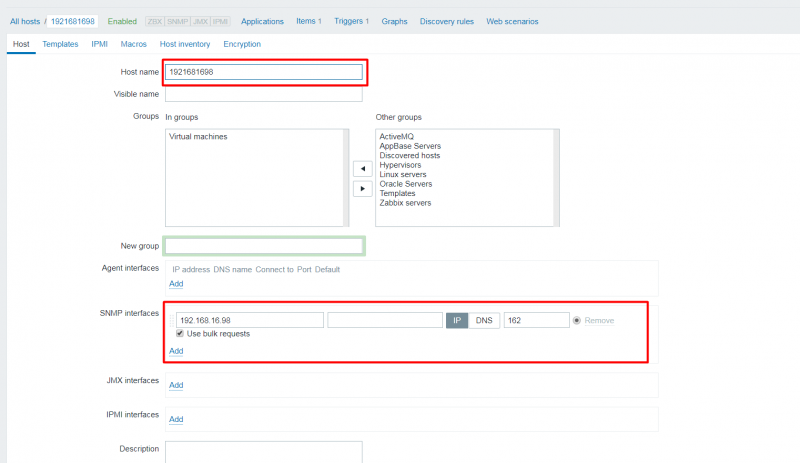

1. I have created host with snmp interface configuration
2. My snmp trap fallback item

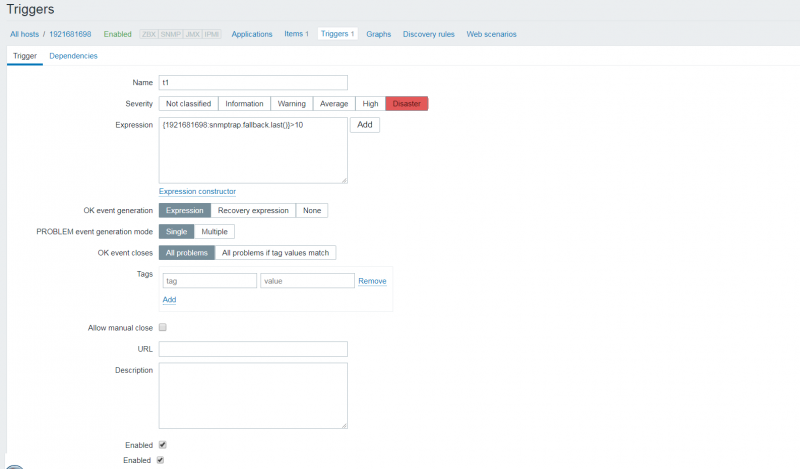

3. My trigger
with this expression {1921681698:snmptrap.fallback.last()}>10
i got an exception
also i tried to write trigger expression with variable name in it, but
got this exception
Please help me to understand how to access integer variable value in trigger expression and raise trigger alert if it's value bigger than 10.
Thank you in advance for any help.
I read documentation, and built a simple configuration.
I managed to catch item via snmptrap.fallback item. Next step is to raise trigger alert when SNMPv2-SMI::enterprises.9999.1.1.1.1.3 type=2 value=INTEGER: 10 variable is bigger than 10
The value received by snmp.fallback item is:
| 2018-04-09 10:04:19 | 10:04:17 2018/04/09 PDU INFO: notificationtype INFORM version 1 receivedfrom UDP: [192.168.16.98]:59156->[192.168.16.85] errorstatus 0 messageid 0 community public transactionid 1123 errorindex 0 requestid 0 VARBINDS: DISMAN-EVENT-MIB::sysUpTimeInstance type=67 value=Timeticks: (0) 0:00:00.00 SNMPv2-MIB::snmpTrapOID.0 type=6 value=OID: SNMPv2-SMI::dod SNMPv2-SMI::enterprises.9999.1.1.1.1.3 type=2 value=INTEGER: 10 |
Here is my configuration:
1. I have created host with snmp interface configuration
2. My snmp trap fallback item
3. My trigger
with this expression {1921681698:snmptrap.fallback.last()}>10
i got an exception
also i tried to write trigger expression with variable name in it, but
got this exception
Please help me to understand how to access integer variable value in trigger expression and raise trigger alert if it's value bigger than 10.
Thank you in advance for any help.
