**doctorbal82** · 31-05-2018, 18:21

cd The following below is the solution I came up with for transitioning to PSQL 10 Native Range Partitioning from a PSQL 9.4 populated database with no partitioning.

A. Create a Zabbix Empty PSQL 10 Database.

Ensure you first create an empty Zabbix PSQL 10 DB.

Code:

# su postgres
postgres@<>:~$ createuser -P -s -e zabbix
postgres@<>:~$ psql
postgres# create database zabbix;
postgres# grant all privileges on database zabbix to zabbix;

B. Create tables & Native Range Partitions on clock column Create the tables in the Zabbix DB and implement native range partitioning for the clock column. Below is an example of a manual SQL script that can be fun for history table. Perform this for all the history tables you want to partition via range.

Code:

CREATE TABLE public.history
(
    itemid bigint NOT NULL,
    clock integer NOT NULL DEFAULT 0,
    value numeric(20,0) NOT NULL DEFAULT (0)::numeric,
    ns integer NOT NULL DEFAULT 0
) PARTITION BY RANGE (clock);

CREATE TABLE public.history_old PARTITION OF public.history
    FOR VALUES FROM (MINVALUE) TO (1522540800);
CREATE TABLE public.history_y2018m04 PARTITION OF public.history
    FOR VALUES FROM (1522540800) TO (1525132800);
CREATE TABLE public.history_y2018m05 PARTITION OF public.history
    FOR VALUES FROM (1525132800) TO (1527811200);

CREATE INDEX ON public.history_old USING btree (itemid, clock);
CREATE INDEX ON public.history_y2018m04 USING btree (itemid, clock);
CREATE INDEX ON public.history_y2018m05 USING btree (itemid, clock);

C. Automate it!

I used a shell script because it is one of the simplest ways to deal with creating new partitions in PSQL 10. Make sure you're always at least one partition ahead of what's needed.

Let's call the script auto_history_tables_monthly.sh.

On a Debian 8 Flavor OS that runs PSQL 10 ensure the script is in a certain directory (I used /usr/local/bin) with correct permissions (

Code:

[B]chown postgre:postgres /usr/local/bin/auto_history_tables_monthly.sh[/B]

) and make it executable (chmod u+x /usr/local/bin/auto_history_tables_monthly.sh as postgres user).

Create a cron job (crontab -e) for postgres user with following:

Code:

0 0 1 * * /usr/local/bin/auto_history_tables_monthly.sh | psql -d zabbix

This will run the shell script the first of every month.

Below is the script. It uses the date command to leverage the UTC epoch value. It creates a database a month in advance and drops a partition 1 month late to adhere to the 31 days of retention for history that is customized to my needs. Ensure the PSQL 10 DB is on UTC time for this use case.

Code:

#!/bin/bash

month_diff () {
        year=$1
  month=$2
        delta_month=$3
  x=$((12*$year+10#$month-1))
        x=$((x+$delta_month))
        ry=$((x/12))
        rm=$(((x % 12)+1))
        printf "%02d %02d\n" $ry $rm
}

month_start () {
        year=$1
  month=$2
        date '+%s' -d "$year-$month-01 00:00:00" -u
}

month_end () {
        year=$1
  month=$2
        month_start $(month_diff $year $month 1)
}

# Year using date
current_year=$(date +%Y)
current_month=$(date +%m)

# Math
next_date=$(month_diff $current_year $current_month 1)
next_year=$(echo $next_date|sed 's/ .*//')
next_month=$(echo $next_date|sed 's/.* //')

start=$(month_start $next_date)
end=$(month_end $next_date)

#next_month_table="public.history_y${next_year}m${next_month}"

# Create next month table for history, history_uint, history_str, history_log, history_text
sql="
    CREATE TABLE IF NOT EXISTS public.history_y${next_year}m${next_month} PARTITION OF public.history
      FOR VALUES FROM ($start) TO ($end);
    \nCREATE TABLE IF NOT EXISTS public.history_uint_y${next_year}m${next_month} PARTITION OF public.history_uint
      FOR VALUES FROM ($start) TO ($end);
    \nCREATE TABLE IF NOT EXISTS public.history_str_y${next_year}m${next_month} PARTITION OF public.history_str
      FOR VALUES FROM ($start) TO ($end);
    \nCREATE TABLE IF NOT EXISTS public.history_log_y${next_year}m${next_month} PARTITION OF public.history_log
      FOR VALUES FROM ($start) TO ($end);
    \nCREATE TABLE IF NOT EXISTS public.history_text_y${next_year}m${next_month} PARTITION OF public.history_text
      FOR VALUES FROM ($start) TO ($end);
    \nCREATE INDEX on public.history_y${next_year}m${next_month} USING btree (itemid, clock);
    \nCREATE INDEX on public.history_uint_y${next_year}m${next_month} USING btree (itemid, clock);
    \nCREATE INDEX on public.history_str_y${next_year}m${next_month} USING btree (itemid, clock);
    \nCREATE INDEX on public.history_log_y${next_year}m${next_month} USING btree (itemid, clock);
    \nCREATE INDEX on public.history_text_y${next_year}m${next_month} USING btree (itemid, clock);
    "

echo -e $sql

# Math
prev_date=$(month_diff $current_year $current_month -2)
prev_year=$(echo $prev_date|sed 's/ .*//')
prev_month=$(echo $prev_date|sed 's/.* //')

# Drop last month table for history, history_uint, history_str, history_log, history_text
sql="
    DROP TABLE public.history_y${prev_year}m${prev_month};
    \nDROP TABLE public.history_uint_y${prev_year}m${prev_month};
    \nDROP TABLE public.history_str_y${prev_year}m${prev_month};
    \nDROP TABLE public.history_log_y${prev_year}m${prev_month};
    \nDROP TABLE public.history_text_y${prev_year}m${prev_month};
    "

echo -e $sql

D. Then dump the data from the old database within. I used pg_dump/pg_restore.

I'm sure there are more complex solutions out there but I found this to be simplest for the needs of autopartitioning the Zabbix Database using the PostgreSQL 10 Native Range Partitioning functionality.

Please let me know if you need more details.

**doctorbal82** · 01-06-2018, 19:42

The shell script has been updated to include the rest of the history partitions that I want partitioned. This works correctly now. It also deletes the records older than 2 months instead of 1 which IMO is safer for a 31 day retention period set in the Administration | General | Housekeeping tab.

**TheSummer69** · 25-08-2018, 17:24

Thanks for sending me in the right direction , but i'm experiencing trouble because i haven't initially created the august partition , so now every time i get :

Z3005] query failed: [0] PGRES_FATAL_ERROR:ERROR: no partition of relation "history" found for row
DETAIL: Partition key of the failing row contains (clock) = (1535210622).
[insert into history (itemid,clock,ns,value) values (23262,1535210622,957377843,0.016943);

Any way to quicky fix this with the right EPOCH timestamps?

**doctorbal82** · 11-09-2018, 17:41

Originally posted by TheSummer69

Thanks for sending me in the right direction , but i'm experiencing trouble because i haven't initially created the august partition , so now every time i get :

Z3005] query failed: [0] PGRES_FATAL_ERROR:ERROR: no partition of relation "history" found for row
DETAIL: Partition key of the failing row contains (clock) = (1535210622).
[insert into history (itemid,clock,ns,value) values (23262,1535210622,957377843,0.016943);

Any way to quicky fix this with the right EPOCH timestamps?

To quickly fix this I would suggest updating the manual SQL entries (mentioned again below) by adding the CREATE TABLE and CREATE INDEX based for each month using the https://www.epochconverter.com/.

You need to take the epoch timestamp from the 1st of each month; e.g. 1st of August, 2018 00:00:00 through 1st of September, 2018 00:00:00.

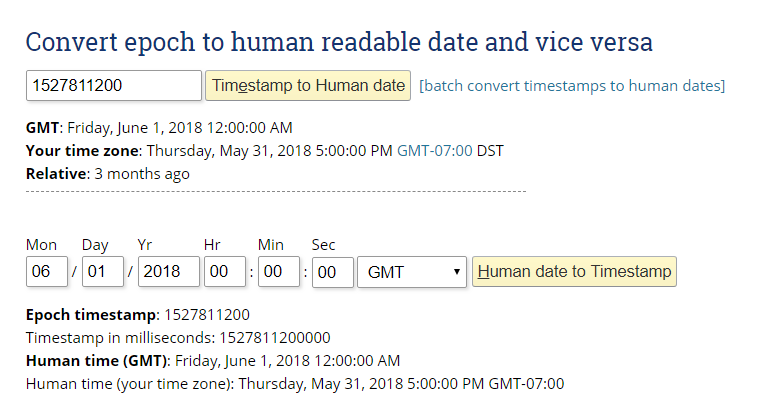

Here is a screenshot example.

Below is the SQL query examples for June 2018, July 2018, August 2018 and September 2018:

Code:

CREATE TABLE public.history_y2018m06 PARTITION OF public.history FOR VALUES FROM (1527811200) TO (1530403200);
CREATE TABLE public.history_y2018m07 PARTITION OF public.history FOR VALUES FROM (1530403200) TO (1533081600);
CREATE TABLE public.history_y2018m08 PARTITION OF public.history FOR VALUES FROM (1533081600) TO (1535760000);
CREATE TABLE public.history_y2018m09 PARTITION OF public.history FOR VALUES FROM (1535760000) TO (1538352000);

Then create the INDEXES

Code:

CREATE INDEX on public.history_y2018m06 USING btree (itemid, clock);
CREATE INDEX on public.history_y2018m07 USING btree (itemid, clock);
CREATE INDEX on public.history_y2018m08 USING btree (itemid, clock);
CREATE INDEX on public.history_y2018m09 USING btree (itemid, clock);

I'm sure there is a simpler way to script this together but at the moment that's what I would suggest. I'll look into a simpler means for the future.

**sfl** · 17-10-2018, 14:18

**sfl** · 23-11-2018, 15:26

Hi @doctorbal82,

DB partitionning was successfull at second try. I was not in zabbix db at the first time.
Data import and ZBX upgrade to 4.0.1 is OK.

I still have an issue when I want to delete item prototype on a host or templates. PSQL process crash with segfault and rollback the transaction.
I have done a specific post here :

We’ll be back soon!

https://www.zabbix.com/forum/zabbix-troubleshooting-and-problems/369565-postgres-db-crash-when-deleting-item-prototype

Any idea is very apreciate,
Sfl

**doctorbal82** · 18-12-2018, 19:37

I am currently testing partitioning using the PostgreSQL 11 Native Partitioning improvements (https://www.postgresql.org/about/news/1894/) that have come with the release.

I have also been testing pg_partman (https://github.com/pgpartman/pg_partman) to do the "heavy lifting" of maintenance of the partitions instead of the hacked together script above. It is a well maintained project and has PSQL 11 support with version 4.0.0.

With PostgreSQL 11 there have been significant improvements in partitioning:

* Automatic index creation on partitioned tables as long as the parent table has an index.
* Default partitioned table creation to place data that doesn't fit within a particular partitioned time range.
* Primary Key support; this helped the trend tables I wanted to partition instead of having to drop the CONTRAINT that was done in PostgreSQL version 10, which didn't support Primary Keys in parent partitions.
* Improved algorithms for performance of partitioning, thus improved speed.

I am also exploring the usage of BRIN (Block Range Indexes) over the default Btree on the history* tables to potentially save a ton of space and improve performance when data is naturally ordered such as the use case in time series data logging.

I'll upload the notes once properly tested; it takes usually a month with heavy I/O processing to see stability.

**doctorbal82** · 09-04-2019, 18:59

I uploaded my notes to github here - https://github.com/Doctorbal/zabbix-...s-partitioning.

r.monakhov I have implemented this in our production instance for over 3 months now. It works very well. With Zabbix 4.2 there is TimeScaleDB which offers time based partitioning in PostgreSQL but I liked pgpartman at the time as we use it on Zabbix version 3.4 and soon to upgrade to 4.0.

Let me know if any questions! I'm always keen to hear where I missed a detail.
