Cisco Template installation failure

[seanche]

Hi there,

I am new to zabbix monitoring system. I was unable to install new template. Templates are from hire https://github.com/jjmartres/Zabbix/...x-cisco-envmon, ZBX-CISCO-BGP4 this template.

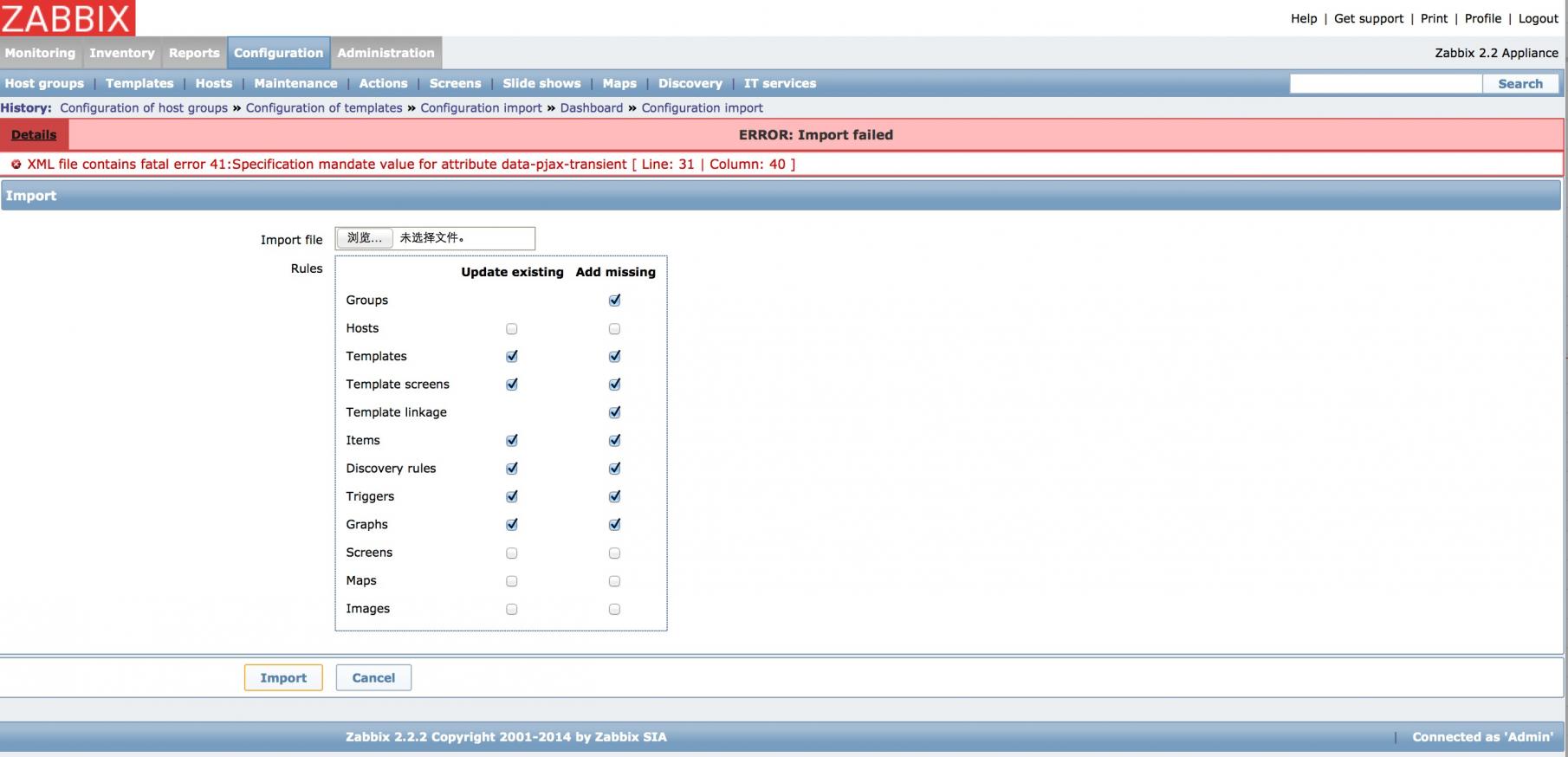

Error: XML file contains fatal error 41:Specification mandate value for attribute data-pjax-transient [ Line: 31 | Column: 40 ]

As was stated in Install guide, I have edited zabbix_server.conf configuration file and add following line:
ExternalScripts=/usr/local/share/zabbix/externalscripts

and put the as.name file under that specific directory as indicated in https://github.com/jjmartres/Zabbix/...bgp4/README.md

To make as.name work, I've also run 'zypper install ruby' to install ruby and rubygems.

I've also tried below command with '-k' to disable certificate
curl -k -O https://raw.github.com/jjmartres/Zab...eam-backup.xml

But still no luck. Could anyone please help me here?

thanks and best regards,
Sean

[tchjts1]

Error: XML file contains fatal error 41:Specification mandate value for attribute data-pjax-transient [ Line: 31 | Column: 40 ]

Where did you get that error? When you tried to import the template?

[seanche]

Error message

Where did you get that error? When you tried to import the template?

Yes, that's right.

When I go to the configuration-->templates configuration, click on 'import', you will see the options.

[tchjts1]

This may be an issue related to Zabbix 2.2.2

I downloaded the template from the link you provided and imported it successfully into my 2.0.9 setup

I will attach it here for you to try. Maybe something in the way you got it from the github site is the issue.

Also, when I imported it, I used the default check boxes on the import page.

[seanche]

It's the xml file format issue!!

Hi tchjts1,

Thank you so much, it works eventually. When I imported your xml file, it works. so I compare yours import.xml with my 'zbx-cisco-bgp4.xml', I found that it's a stupid mistake.

Your xml file look like a real xml file, it's the same as the xml shown on the web when you click the xml file name listed here:
https://github.com/jjmartres/Zabbix/...zbx-cisco-bgp4, so when you copy it and save it locally there's nothing wrong.

But when I right click the file name to save it locally, I got the file with HTML format and file size is over 200Kbytes!!

Did you do screen scrapping to get the code and past it into a text editor and save it as xml file?

It's a stupid mistake, thank you for sharing your xml file which helped me find out the problem.

Sean

[tchjts1]

Did you do screen scrapping to get the code and past it into a text editor and save it as xml file?

Sean

Yes, exactly. Highlighted, copied and pasted into Notepad++

[steveboyson]

There is a "Raw" button. Right-click on that and choose "save as ..."

[tchjts1]

or just copy and paste it into a text editor.

[seanche]

Thank you all

Thank you all for the help!
