Zabbix Mib Upload Concer

[vnoc]

Hi All,


I am trying to upload a mib and trying to push a trap from my application server but unable to do so.


Can you please help me on uploading the MIB and push a trap and it shoudl be visble in the UI.

Version I am using is 3.4.1 version


I followed below link which didn't work.

https://zabbix.org/wiki/Start_with_SNMP_traps_in_Zabbix

I am stuck up at setting up mib and the error I am getting is below

Jan 30 16:41:38 a0410tcmpstgsrv03 systemd[1]: Starting Simple Network Management Protocol (SNMP) Trap Daemon....
Jan 30 16:41:38 a0410tcmpstgsrv03 snmptrapd[38844]: MIB search path: $HOME/.snmp/mibs:/usr/share/snmp/mibs
Jan 30 16:41:38 a0410tcmpstgsrv03 snmptrapd[38844]: Cannot find module (acision-smi.txt): At line 0 in (none)
Jan 30 16:41:38 a0410tcmpstgsrv03 snmptrapd[38844]: NET-SNMP version 5.7.2
Jan 30 16:41:38 a0410tcmpstgsrv03 systemd[1]: Started Simple Network Management Protocol (SNMP) Trap Daemon..


The file is already in mibs file and in /etc/snmp/snmp.conf file as well

Please help me in sorting out this

[kloczek]

This issue has nothong to do with zabbix per se.
You can add MIB to be visable be zabbix by add in /etc/snmp/snmp.local.conf line:

mibs +<YOUR-MIB-FILE-MANE>

Please read net-snmp documentation about how to register MIB file.

[vnoc]

Thanks for the reply kloczek.

Below is the files which I have given
===============
[appuser@a0410tcmpstgsrv03 mibs]$ sudo cat /etc/snmp/snmp.local.conf
mibs +ACISION-OAM-MONITORCONF-MIB
mibs +ACISION-OAM-MONITOR-MIB
mibs +ACISION-OAM-STATSCONF-MIB
mibs +ACISION-OAM-STATS-MIB
mibs +acision-smi.txt
==================

and after adding the above and restarting the snmptrapd we are observing below error

Jan 30 18:35:11 a0410tcmpstgsrv03 systemd[1]: Starting Simple Network Management Protocol (SNMP) Trap Daemon....
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: MIB search path: $HOME/.snmp/mibs:/usr/share/snmp/mibs
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: Cannot find module (ACISION-OAM-CONFIGURATION-MIB): At line 10 in /usr/share/snmp/mibs/ACISION-OAM-MONITOR-MIB.txt
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: Did not find 'configurationCparamScalarSystemName' in module #-1 (/usr/share/snmp/mibs/ACISION-OAM-MONITOR-MIB.txt)
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: Cannot find module (ACISION-OAM-CONFIGURATION-MIB): At line 10 in /usr/share/snmp/mibs/ACISION-OAM-STATS-MIB.txt
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: Did not find 'configurationCparamScalarSystemName' in module #-1 (/usr/share/snmp/mibs/ACISION-OAM-STATS-MIB.txt)
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: Cannot find module (acision-smi.txt): At line 0 in (none)
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: NET-SNMP version 5.7.2
Jan 30 18:35:12 a0410tcmpstgsrv03 systemd[1]: Started Simple Network Management Protocol (SNMP) Trap Daemon..

[kloczek]

Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: MIB search path: $HOME/.snmp/mibs:/usr/share/snmp/mibs
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: Cannot find module (ACISION-OAM-CONFIGURATION-MIB): At line 10 in /usr/share/snmp/mibs/ACISION-OAM-MONITOR-MIB.txt
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: Did not find 'configurationCparamScalarSystemName' in module #-1 (/usr/share/snmp/mibs/ACISION-OAM-MONITOR-MIB.txt)
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: Cannot find module (ACISION-OAM-CONFIGURATION-MIB): At line 10 in /usr/share/snmp/mibs/ACISION-OAM-STATS-MIB.txt
Jan 30 18:35:12 a0410tcmpstgsrv03 snmptrapd[40480]: Did not find 'configurationCparamScalarSystemName' in module #-1 (/usr/share/snmp/mibs/ACISION-OAM-STATS-MIB.txt)

In above lines you have exact file names with paths in which MIB files should be present in your system however looks like something is wrong with your MIB files.

[vnoc]

After giving the correct files also still giving the error


Jan 30 19:25:48 a0410tcmpstgsrv03 systemd[1]: Starting Simple Network Management Protocol (SNMP) Trap Daemon....
Jan 30 19:25:48 a0410tcmpstgsrv03 snmptrapd[41736]: MIB search path: $HOME/.snmp/mibs:/usr/share/snmp/mibs
Jan 30 19:25:48 a0410tcmpstgsrv03 snmptrapd[41736]: Cannot find module (acision-smi): At line 1 in (none)
Jan 30 19:25:48 a0410tcmpstgsrv03 snmptrapd[41736]: NET-SNMP version 5.7.2
Jan 30 19:25:48 a0410tcmpstgsrv03 systemd[1]: Started Simple Network Management Protocol (SNMP) Trap Daemon..

[kloczek]

Can you put somewhere public ally those MIB files with above issue?

[vnoc]

_{Do you mean I need to change the rocommunity to public and then try}

[vnoc]

at present I am not observing the issue but in the tmp path Zabbix_trap.tmp file is created but in the UI I am unable to find that trap and in the

Zabbix_trap.tmp file it is not in correct format

PDU INFO:
notificationtype TRAP
version 1
receivedfrom UDP: [x.x.x.x]:59323->[x.x.x.x]:162
errorstatus 0
messageid 0
community aciprivate
transactionid 2
errorindex 0
requestid 515419141
VARBINDS:
DISMAN-EVENT-MIB::sysUpTimeInstance type=67 value=Timeticks: (533636) 1:28:56.36
SNMPv2-MIB::snmpTrapOID.0 type=6 value=OID: SNMPv2-MIB::authenticationFailure
SNMPv2-MIB::snmpTrapEnterprise.0 type=6 value=OID: NET-SNMP-MIB::netSnmpAgentOIDs.10
14:19:10 2019/01/31 ZBXTRAP x.x.x.x
PDU INFO:
notificationtype TRAP
version 1
receivedfrom UDP: [x.x.x.x]:59323->[x.x.x.x]:162
errorstatus 0
messageid 0
community aciprivate
transactionid 3
errorindex 0
requestid 515419414
VARBINDS:
DISMAN-EVENT-MIB::sysUpTimeInstance type=67 value=Timeticks: (535636) 1:29:16.36
SNMPv2-MIB::snmpTrapOID.0 type=6 value=OID: SNMPv2-MIB::authenticationFailure
SNMPv2-MIB::snmpTrapEnterprise.0 type=6 value=OID: NET-SNMP-MIB::netSnmpAgentOIDs.10
14:19:30 2019/01/31 ZBXTRAP x.x.x.x
PDU INFO:
notificationtype TRAP
version 1
receivedfrom UDP: [x.x.x.x]:59323->[x.x.x.x]:162
errorstatus 0
messageid 0
community aciprivate
transactionid 4
errorindex 0
requestid 515419687
VARBINDS:
DISMAN-EVENT-MIB::sysUpTimeInstance type=67 value=Timeticks: (537637) 1:29:36.37
SNMPv2-MIB::snmpTrapOID.0 type=6 value=OID: SNMPv2-MIB::authenticationFailure
SNMPv2-MIB::snmpTrapEnterprise.0 type=6 value=OID: NET-SNMP-MIB::netSnmpAgentOIDs.10
14:19:50 2019/01/31 ZBXTRAP x.x.x.x

[vnoc]

can you please help me in sorting out this

[Evgeniy]

I'm using snmptrapd + SNMPTT to pass traps to Zabbix server

https://www.zabbix.com/documentation/3.4/manual/config/items/itemtypes/snmptrap

[kloczek]

can you please help me in sorting out this

Again .. could you please put your MIBs which generates some errors on loadingby libnetsnmp library somewhere publically to allow me have look what is wrong with those MIBs?

[vnoc]

Hi Kloczek,


I have placed the correct file and the reported problem got sorted out . After that again I am getting below error. Could you please help me on this

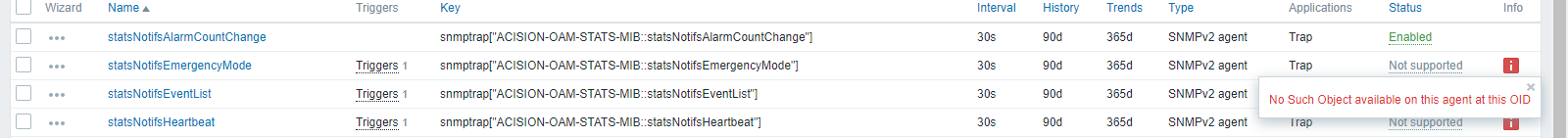

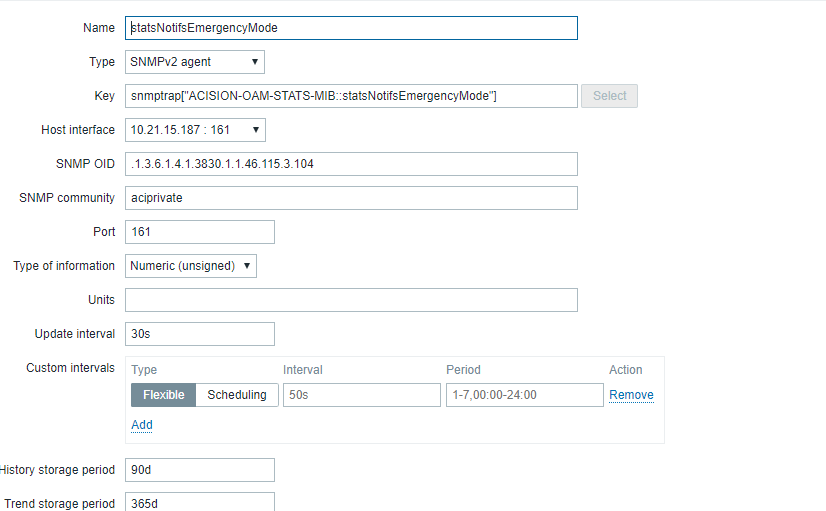

After uploading the mibs to the path I have added a trap item with OID and after saving it is giving me an error as below (Both the screenshots are attached). Could you please look into this and help me in fixing this.plz.....

[kloczek]

Hi Kloczek,


I have placed the correct file and the reported problem got sorted out . After that again I am getting below error. Could you please help me on this

After uploading the mibs to the path I have added a trap item with OID and after saving it is giving me an error as below (Both the screenshots are attached). Could you please look into this and help me in fixing this.plz.....

And what happens when you are trying to get data using snmpget/snmpwalk command?

[vnoc]

Its just giving error I have not done any snmpget/snmpwalk command.


If it is compulsory to perform those commands . kindly let me know where should I perform that

[kloczek]

Its just giving error I have not done any snmpget/snmpwalk command.


If it is compulsory to perform those commands . kindly let me know where should I perform that

Zabbix and snmp-net commands like snmpget/snpwalk commands are using exactly the same libsnmp library which is responsible for OIDs resolution and communication with remote SNMP agent).
Using those commands is base technique on resolving any issues with SNMP.
As long as those commands are working collectedly zabbix will be OK as well.
