Exclude bind mounts

[maxxer]

Hi.
I've googled around and seems an old topic, but couldn't find the correct way to handle it.
I'd like to monitor an ISPConfig host which has a *lot* of bind mount points for local directories. Like this (from mtab):

/var/log/ispconfig/httpd/domain.com /var/www/clients/client207/web243/log none rw,bind 0 0

I found I should change the "File system auto discovery" rule in order to exclude mount types I'd like to remove. So this is the default regexp in Zabbix 2.2:

^(btrfs|ext2|ext3|ext4|jfs|reiser|xfs|ffs|ufs|jfs|jfs2|vxfs|hfs|ntfs|fat32|zfs)$

which should already exclude bind mounts, which have mount type=none. In fact if I make a test with the regexp tester built into Zabbix webui the none value returns FALSE.
So why is it still showing all those mountpoints?

thanks

[aib]

Correct me if I'm wrong - you tested only regexp with internal tester But you didn't try to create any LLD to discover the mounted filesystems on real server?

[maxxer]

Correct me if I'm wrong - you tested only regexp with internal tester But you didn't try to create any LLD to discover the mounted filesystems on real server?

you're right...

[aib]

There is my server.
[root@server-13] ~# mount

/dev/ufs/FreeNASs2a on / (ufs, local, read-only)
[B]devfs on /dev (devfs, local, multilabel)[/B]
/dev/md0 on /etc (ufs, local)
/dev/md1 on /mnt (ufs, local)
/dev/md2 on /var (ufs, local)
/dev/ufs/FreeNASs4 on /data (ufs, local, noatime, soft-updates)
syspool on /mnt/syspool (zfs, local, nfsv4acls)
syspool/.system on /mnt/syspool/.system (zfs, local, nfsv4acls)
syspool/.system/cores on /mnt/syspool/.system/cores (zfs, local, nfsv4acls)
syspool/.system/samba4 on /mnt/syspool/.system/samba4 (zfs, local, nfsv4acls)
syspool/.system/syslog on /mnt/syspool/.system/syslog (zfs, local, nfsv4acls)
pool-0 on /mnt/pool-0 (zfs, local, nfsv4acls)
pool-0/dedup on /mnt/pool-0/dedup (zfs, local, nfsv4acls)
pool-1 on /mnt/pool-1 (zfs, local, nfsv4acls)
pool-1/dedup on /mnt/pool-1/dedup (zfs, local, nfsv4acls)

Regular expression:

^(btrfs|ext2|ext3|ext4|jfs|reiser|xfs|ffs|[B]ufs[/B]|jfs|jfs2|vxfs|hfs|ntfs|fat32|[B]zfs[/B]|nfs)$

You can see that there is both UFS and ZFS, but DEVFS doesn't exist in my regexp.

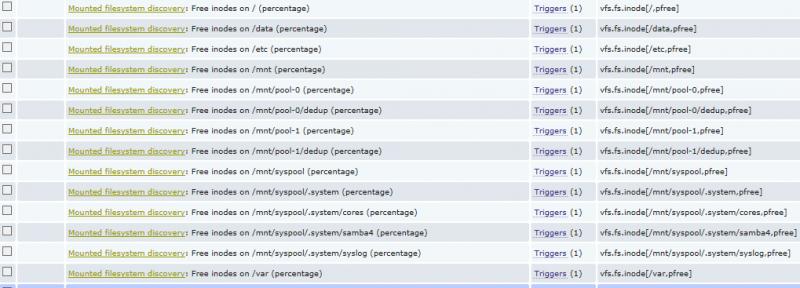

And the list of discovered items also contains all mounted filesystems exclude DEVFS:

[filipp.sudanov]

If zabbix_agent is configured in passive mode, you can try to use zabbix_get tool to see the actual JSON with file system discovery data:

zabbix_get -s <server_address> -k vfs.fs.discovery

Please check, if it outputs "{#FSTYPE}":"none" for your file systems.

UPD: just tryed to create a bind mount on my system, it reports the file system as ext3:

{"{#FSNAME}":"/tmp/bind_mount_test/binded_folder","{#FSTYPE}":"ext3"}

I am not sure, if it's a correct behaviour for the agent, or not.

[maxxer]

UPD: just tryed to create a bind mount on my system, it reports the file system as ext3:

{"{#FSNAME}":"/tmp/bind_mount_test/binded_folder","{#FSTYPE}":"ext3"}

I am not sure, if it's a correct behaviour for the agent, or not.

Yes, it's returned as ext4!
Can I exclude all paths with a certain regexp?

			"{#FSNAME}":"\/var\/www\/clients\/client76\/web85\/log",
			"{#FSTYPE}":"ext4"},

I should exclude all paths /var/www/clients/?/?/log
