Hello!
Please tell me what am I doing wrong trying to monitor the switch port (40) my computer is connected to - here are my steps:

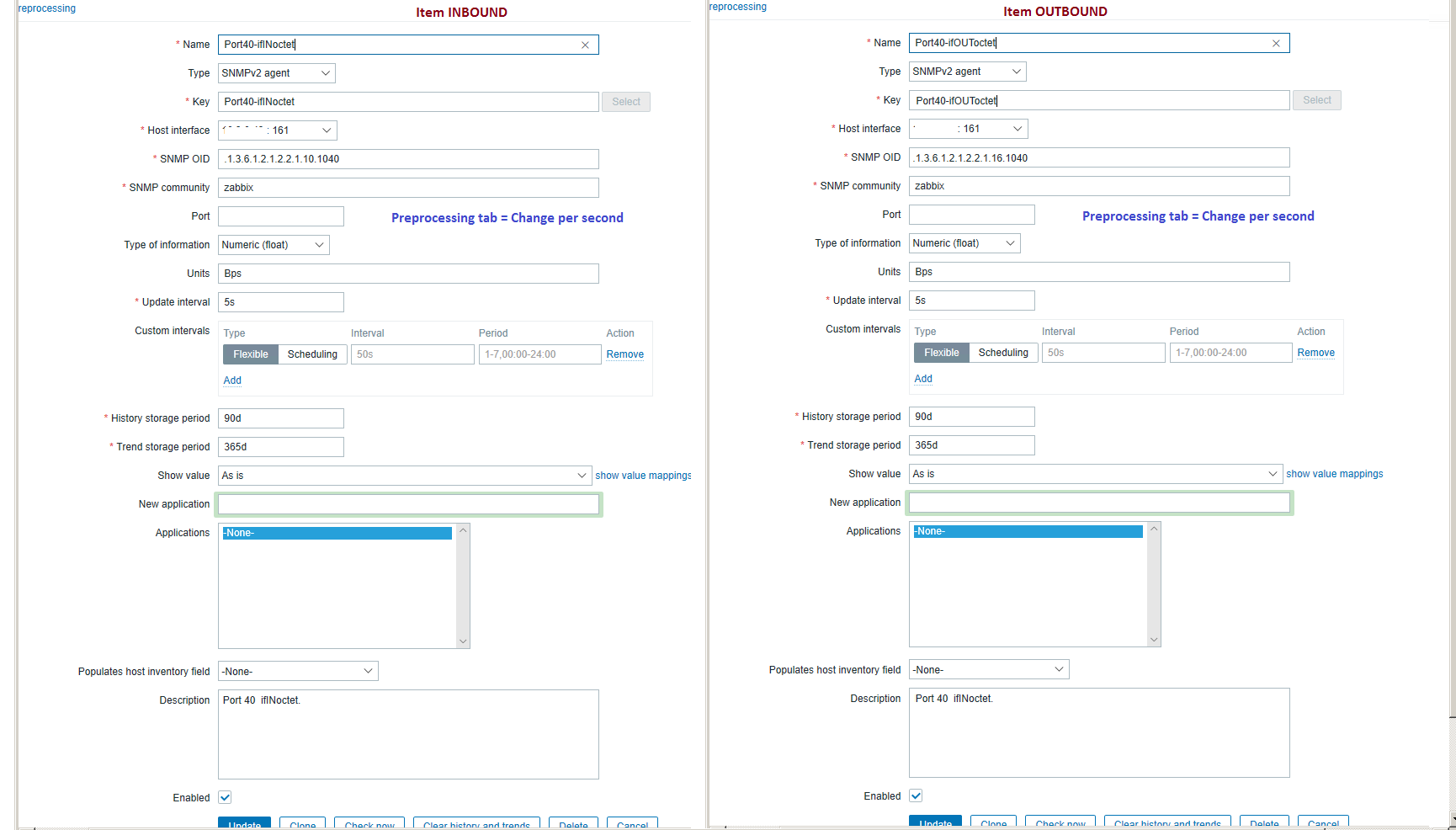

1) Create the snmp item for the incoming traffic (1.3.6.1.2.1.2.2.1.10.40):
2) Create the snmp item for the outgoing traffic (1.3.6.1.2.1.2.2.1.16.40):

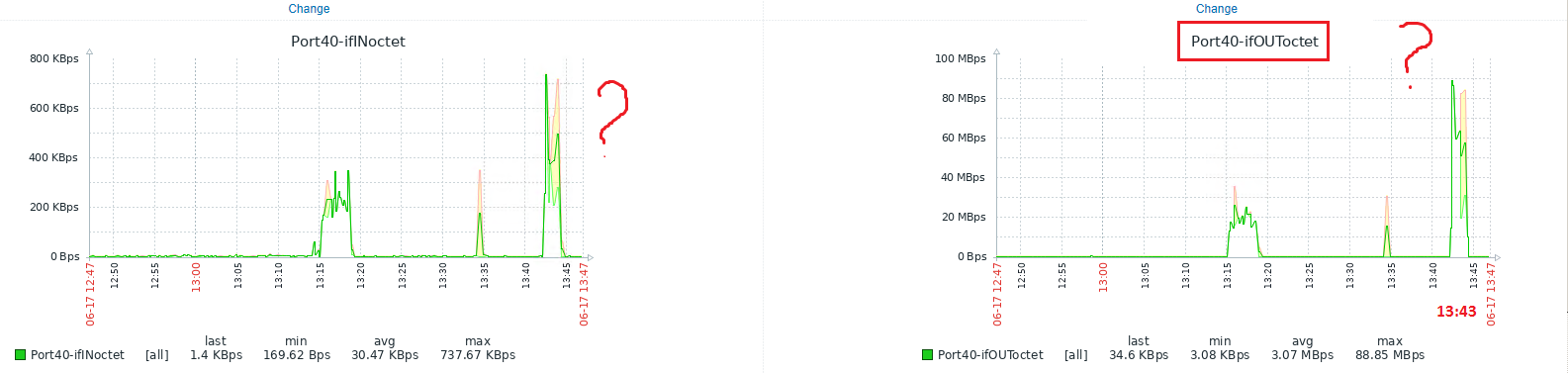

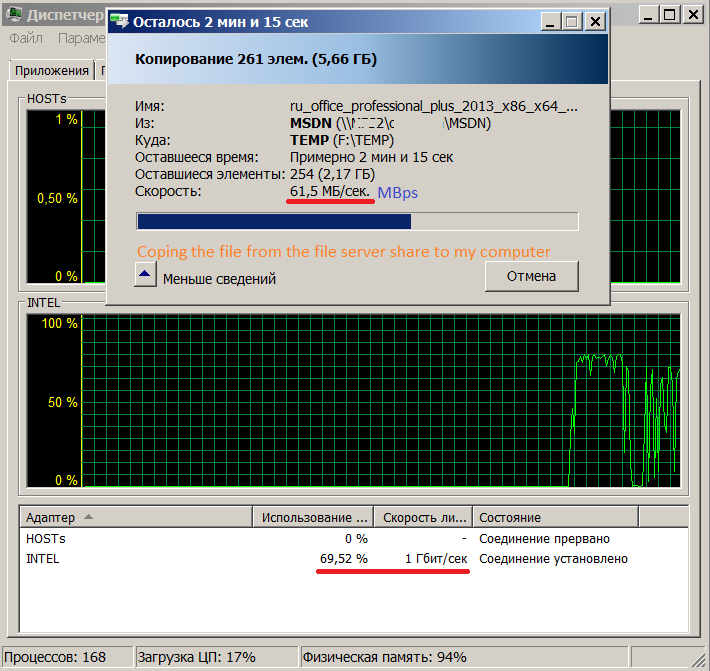

Test: I download a file to my computer and expect to see the first item climbing up but instead it is the second one which starts growing - as if I'm uploading this file, not Downloading - please see the attachments.
Thank you in advance,
Michael
Please tell me what am I doing wrong trying to monitor the switch port (40) my computer is connected to - here are my steps:
1) Create the snmp item for the incoming traffic (1.3.6.1.2.1.2.2.1.10.40):
| ifInOctets | 1.3.6.1.2.1.2.2.1.10 | The total number of octets received on the interface, including framing characters. |
| ifOutOctets | 1.3.6.1.2.1.2.2.1.16 | The total number of octets transmitted out of the interface, including framing characters. |
Thank you in advance,
Michael
