    [server 4.0][agent 2.2][active proxy 4.0] 3700+ NVPS seen but not as much measured

    Hi all,

    I have a zabbix server (4.0.8), 3 active proxies(4.0.8) and a bunch of agents (roughly 1500, 2.2).
    I wanted to get a high NVPS load on a proxy, so I reduced the frequency of my polling to 20 seconds, and had 1000 of them monitored by one proxy.

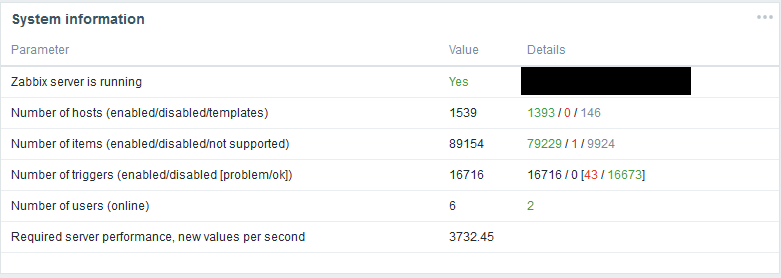

    The web GUI tells my I am over 3700 NVPS on the server:
    Click image for larger version

Name:	dash_monitoring.PNG
Views:	111
Size:	16.7 KB
ID:	385397

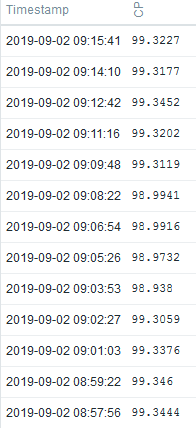

    but when I check the data, I don't have a polling every 20 seconds but rather between 60 and 90 seconds.:
    Click image for larger version

Name:	measurements_frequency.PNG
Views:	124
Size:	8.2 KB
ID:	385396

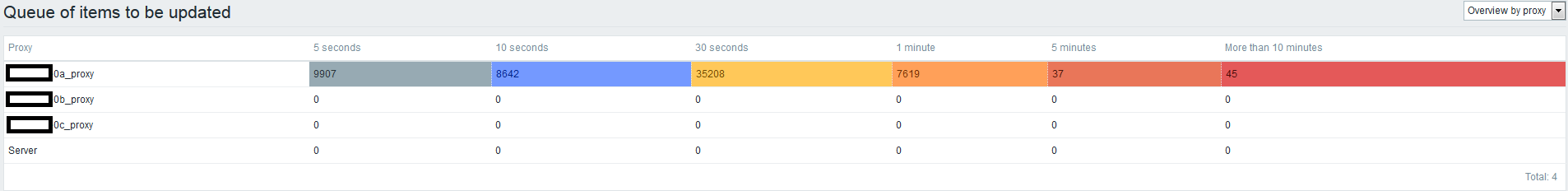

    Also I have a huge queue, but not so many measurements that are delayed over 5 minutes (although more than 7000 delayed by more than 1 minute is quite a drawback):
    Click image for larger version

Name:	adm_queue_by_proxy.PNG
Views:	93
Size:	18.1 KB
ID:	385399
    Migrating the agents right away is not an option as I have a grand total of over 20,000 nodes and it is planned for next year.

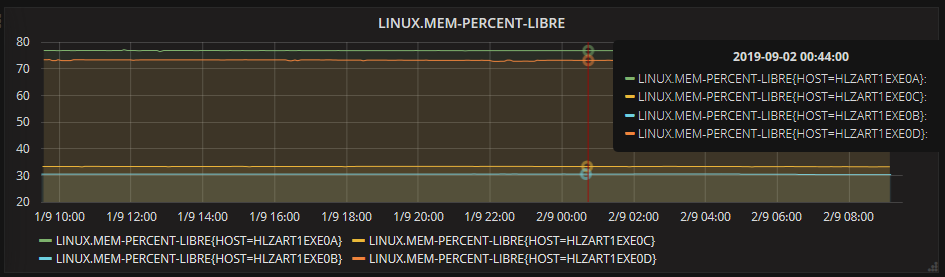

    So far, proxy measurements don't seem off (values for the loaded proxy are in green):
    Click image for larger version

Name:	ram_measurement.PNG
Views:	91
Size:	35.6 KB
ID:	385398Click image for larger version

Name:	cpu_measurement.PNG
Views:	84
Size:	43.6 KB
ID:	385400


    Can you help me find out why so many values are discarded ?
  • eljibe
    Member
    • Apr 2014
    • 31

    #2

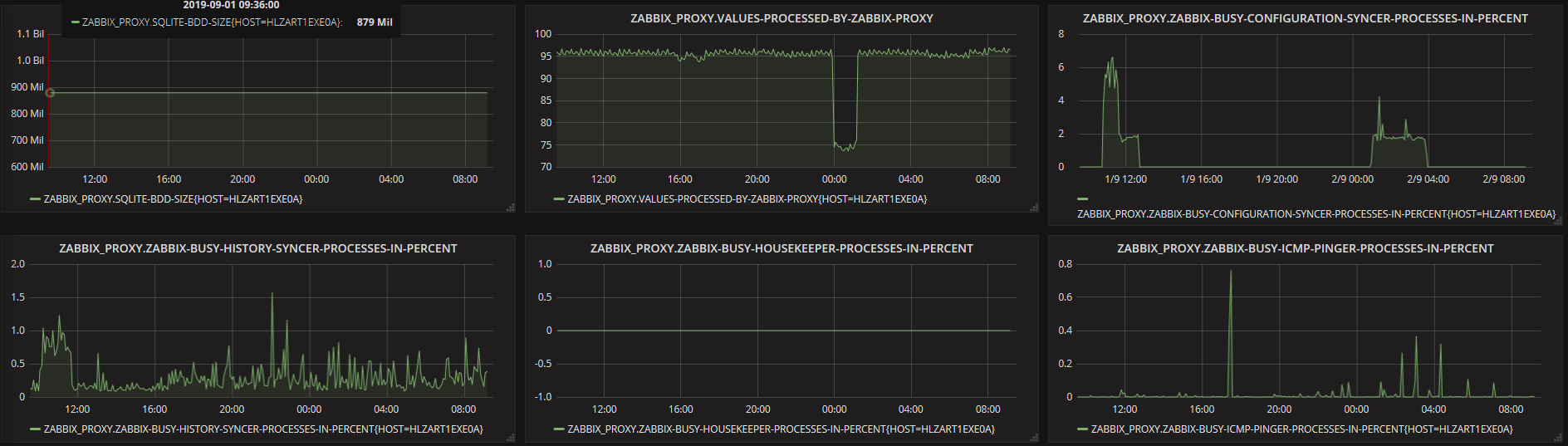

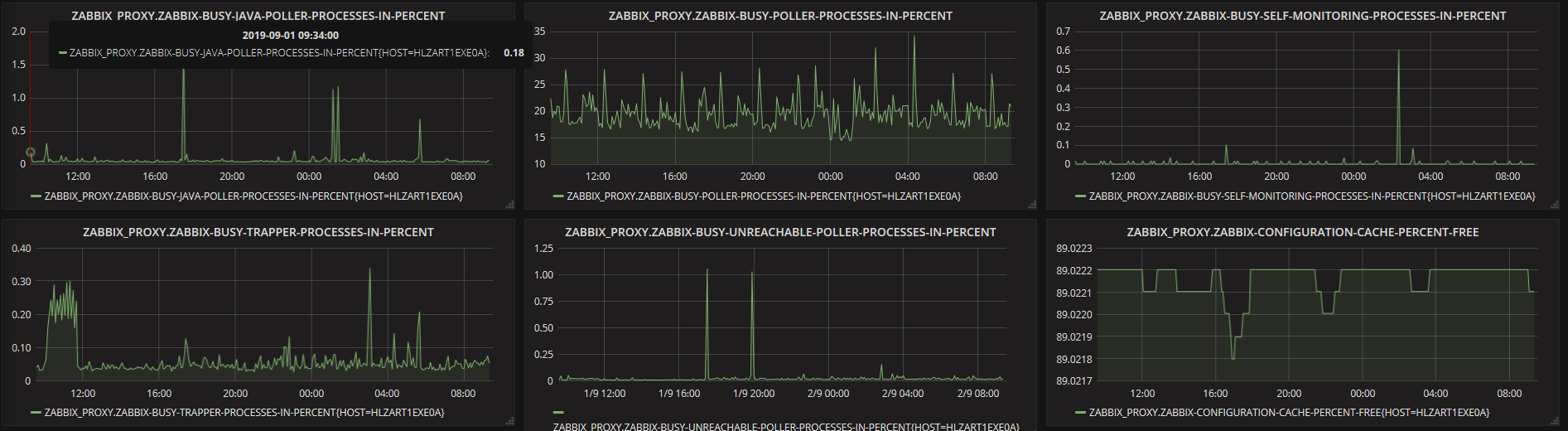

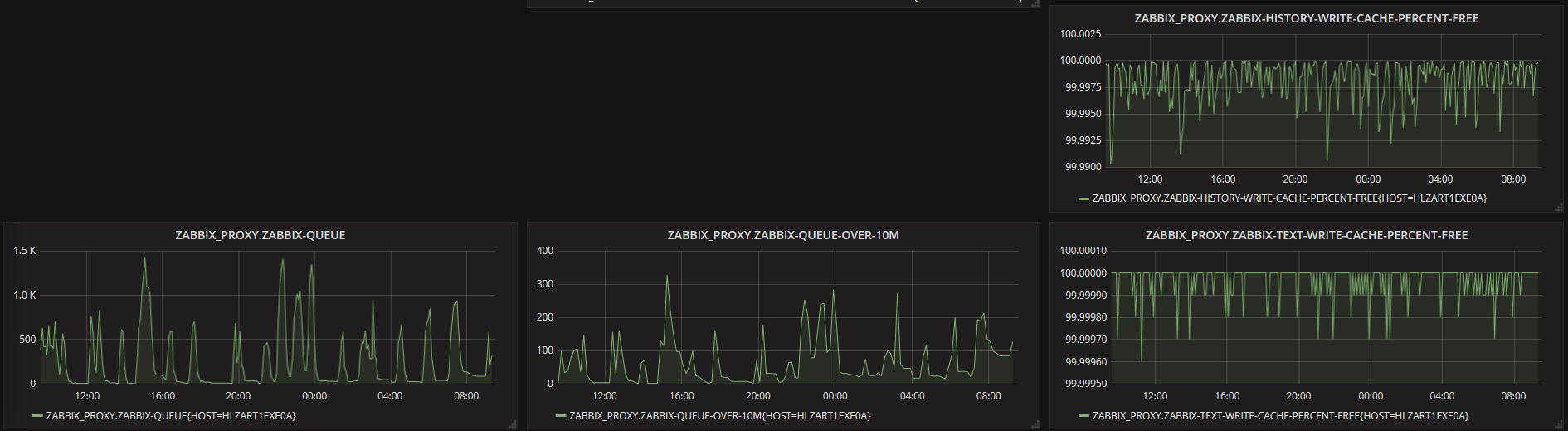

    We have agrafana setup and here are the proxy related values for the items:
    Click image for larger version

Name:	proxy_monitor_1_3.PNG
Views:	90
Size:	125.8 KB
ID:	385402Click image for larger version

Name:	proxy_monitor_2_3.PNG
Views:	87
Size:	154.3 KB
ID:	385403Click image for larger version

Name:	proxy_monitor_3_3.PNG
Views:	90
Size:	149.9 KB
ID:	385404
