How to monitor NTP Diff

[bacteria666]

Hi everybody,

Firstly this is my first post, Secondly my English is a little bit rusty.


My doubt is simple: "HOWTO check if a host has time difference compared with Zabbix server".

A long time ago I used nagios3, nowadays I am using zabbix, however I used a plugin check_snmp_time ( https://github.com/mludvig/nagios-pl...k_snmp_time.pl ) which simplily get a host time by SNMP and do a calc to show the time difference between host and zabbix server.

Anyone could help or give the way to develop that solution ?

thanks 2 take ur time to read me.

[bacteria666]

Interested in the template, did you end up posting it somewhere?

Hi tserreyn

I uploaded to share zabix, please check the link below and please, try and vote.

Any questions, just call me.

Thanks.

[tserreyn]

Downloaded installed and tested:

definately detected my local host that was off by 10 minutes and triggered alert.

However it also alerted on hosts in a different timezone that were in sync, just in a timezone two hours earlier than mine.

I think the pre-processing isn't taking into account the timezone field if it exists, which means if the time is in local timezone, the epoch time is being calculated wrong because it is based on UTC not localtimezone.

[bacteria666]

I really appreciate your feedback and I will revise about the timezones.

Im my case I use the same timezone on zabbix server and monitored hosts and works fine for me.

Could you send me the output results of "date" command on your zabbix server and the host.

Thanks.

[bacteria666]

hi tserreyn, do you have this template ?
Once the old share zabbix has gone I am working to build a new one

[Hamardaban]

https://www.zabbix.com/documentation...gers/functions --> fuzzytime

[bacteria666]

looks great, but via SNMP I get 2019-11-28,14:48:5.0,-3:0 .... not unix epoch time

[bacteria666]

fuzzytime seens great, however, I got date im this format "2019-11-28,14:48:5.0,-3:0" .... and my problem is .... I have no idea how to process the data to store and after that compare with now()

I am getting this value through SNMP oid:
.1.3.6.1.2.1.25.1.2.0 = STRING: 2019-11-28,14:51:5.0,-3:0

Thanks.

[Hamardaban]

You can use preprocessing (JS) at data item to convert string "2019-11-28,14:51:5.0,-3:0" to epoch (by JS script).

[bacteria666]

by JS ? really ? how ? hahahahah I'm gonna search that

[Hamardaban]

https://www.zabbix.com/documentation...fig/items/item >> Item value preprocessing >>

	Javascript	Enter JavaScript code in the block that appears when clicking in the parameter field or on Open. Note that available JavaScript length depends on the database used. For more information, see: Javascript preprocessing.

[bacteria666]

You can use preprocessing (JS) at data item to convert string "2019-11-28,14:51:5.0,-3:0" to epoch (by JS script).

This is exactly the thing I was searching.

ps.: I really appreciate UR help. thanks


[SOLUTION] =>

var p2 = value.split(',', 2).join(',').length;  // find 2nd ocurr of comma
var dt = value.substr(0,p2);                    // to remove after that
dt = dt.replace(',', ' ');                      // replace 1st comma to space
dt = Date.parse(dt)/1000;                       // get time in unix epoch
return  dt;                                     // output

[tserreyn]

hmm, converting to epoch using code above gives different epoch values depending on the timezone, maybe timezone offset is being ignored.

2021-1-16,17:37:4.0,-8:0 ---> 1610818684
2021-1-16,19:38:10.0,-6:0 ---> 1610825890

of course the difference is 120 minutes, which is the difference in time zones.

[bacteria666]

Well, I did in another way in the follow steps below:

• Get timedate via SNMP;
• Convert datetime to unixepoch via javascript
• Get time difference subtracting the remove date/time with local server date/time;
• return the difference;

After that I create two triggers with Average and Warning severity.


I created a template also and I would like to know how to upload to share zabbix.

Thanks.

[tserreyn]

Interested in the template, did you end up posting it somewhere?

[bacteria666]

Interested in the template, did you end up posting it somewhere?

Hi tserreyn

I uploaded to share zabix, please check the link below and please, try and vote.

Any questions, just call me.

Thanks.

[tserreyn]

Downloaded installed and tested:

definately detected my local host that was off by 10 minutes and triggered alert.

However it also alerted on hosts in a different timezone that were in sync, just in a timezone two hours earlier than mine.

I think the pre-processing isn't taking into account the timezone field if it exists, which means if the time is in local timezone, the epoch time is being calculated wrong because it is based on UTC not localtimezone.

[bacteria666]

I really appreciate your feedback and I will revise about the timezones.

Im my case I use the same timezone on zabbix server and monitored hosts and works fine for me.

Could you send me the output results of "date" command on your zabbix server and the host.

Thanks.

[bacteria666]

hi tserreyn, do you have this template ?
Once the old share zabbix has gone I am working to build a new one

[bacteria666]

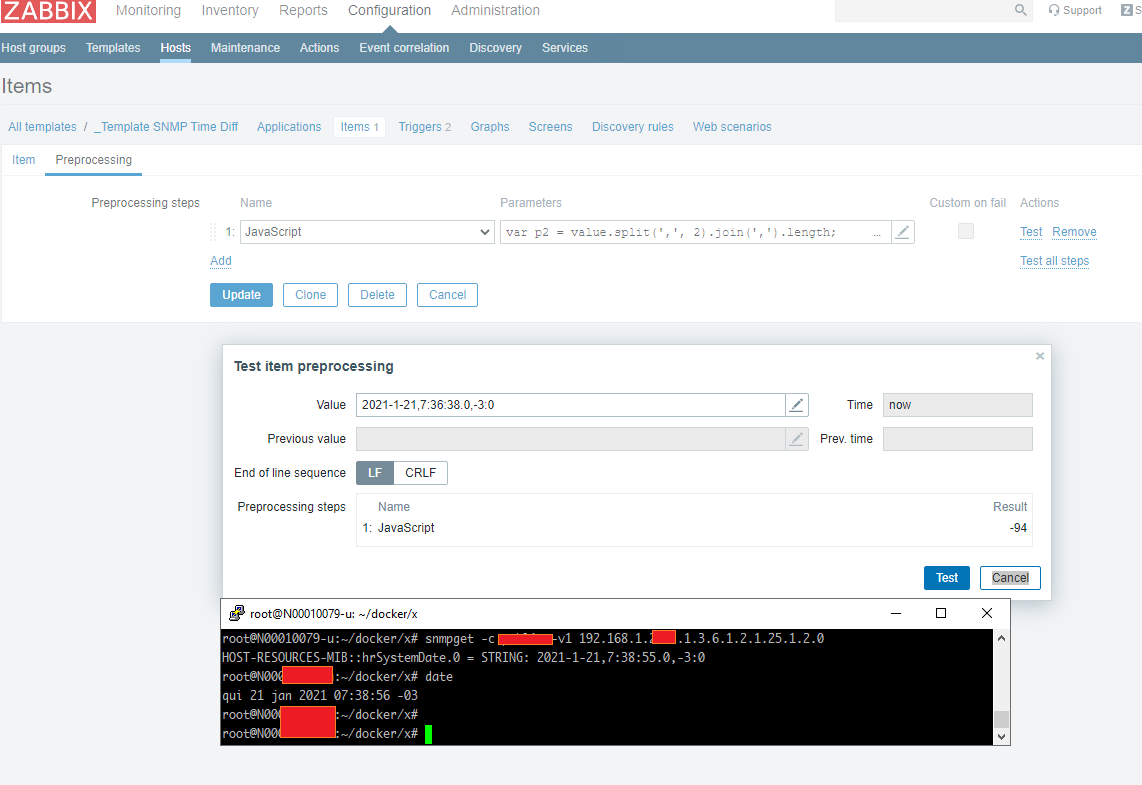

Here is my scrren with tests.

I'm using the same timezone in both, server and host

[leonardogyn]

Hi tserreyn

I uploaded to share zabix, please check the link below and please, try and vote.

Any questions, just call me.

Thanks.

Couldn't find the template on Zabbix Integrations, the new platform for the old share.zabbix.com. Would you mind sharing it again? Thanks! (abraço, BR aqui também)
