Weblogic monitoring template (JMX). No data returned for some mbeans.

[rindbaek]

I am working on setting up a weblogic template. We use zabbix 4.4 with a java gateway 4.4.1 and connect to a weblogic 12.2.1.3.
My problem is that i cant see data/attrubutes for all the mbeans. through zabbix. I see them fine in jconsole.


I zabbix i can see the java.lang for instance the Garbeag collector. but i dont get data for data in the com.bea part.

My garbage collector discovery rule is configured like this:
key: jmx.discovery[beans,"*:type=GarbageCollector,name=*"]
jmx endpoint: service:jmx:rmi:///jndi/iiop://{HOST.CONN}:{HOST.PORT}/weblogic.management.mbeanservers.domainruntime

and i have an Item prototype like this:
Name: GC {#JMXLOCATION} {#JMXNAME} CollectionCount
Key: jmx[{#JMXOBJ},CollectionCount]
Jmx endpoint: service:jmx:rmi:///jndi/iiop://{HOST.CONN}:{HOST.PORT}/weblogic.management.mbeanservers.domainruntime


This works fine and i see the data.


But im also interestet in things like the state of my managed servers (in the com.bea)...

So i create a discovery rule for that

key: jmx.discovery[beans,"*:type=Server,name=*"]
jmx endpoint: service:jmx:rmi:///jndi/iiop://{HOST.CONN}:{HOST.PORT}/weblogic.management.mbeanservers.domainruntime

and i have an Item prototype like this:
Name: MS {#JMXLOCATION} {#JMXNAME} State
Key: jmx[{#JMXOBJ},StartupMode]
Jmx endpoint: service:jmx:rmi:///jndi/iiop://{HOST.CONN}:{HOST.PORT}/weblogic.management.mbeanservers.domainruntime

I dont get any data. for this and in the java gateway log i se this:

2019-11-28 13:32:26.235 [pool-1-thread-2] DEBUG com.zabbix.gateway.ItemChecker - getting value for item 'jmx.discovery[beans,"*:type=Server,name=*"]'
2019-11-28 13:32:26.239 [pool-1-thread-2] DEBUG com.zabbix.gateway.ItemChecker - received value '{"data":[]}' for item 'jmx.discovery[beans,"*:type=Server,name=*"]'

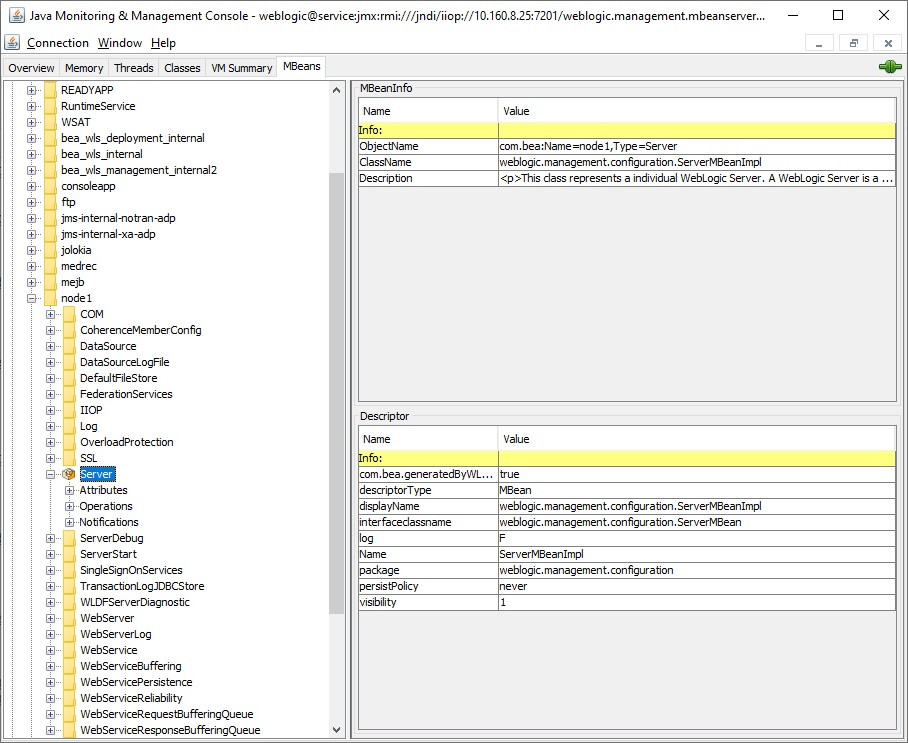

This is one of the mbean's i try to hit...

[Purnima Upadhyaya]

Hi Rindbaek, were you able to figure out how to see data for managed server, I also trying same but no luck yet
