Graph for temperature not working

[RodrigoH]

Hi all,

I`m new in Zabbix and currently I`m struggling with temperature graphs, I cannot make them to work.

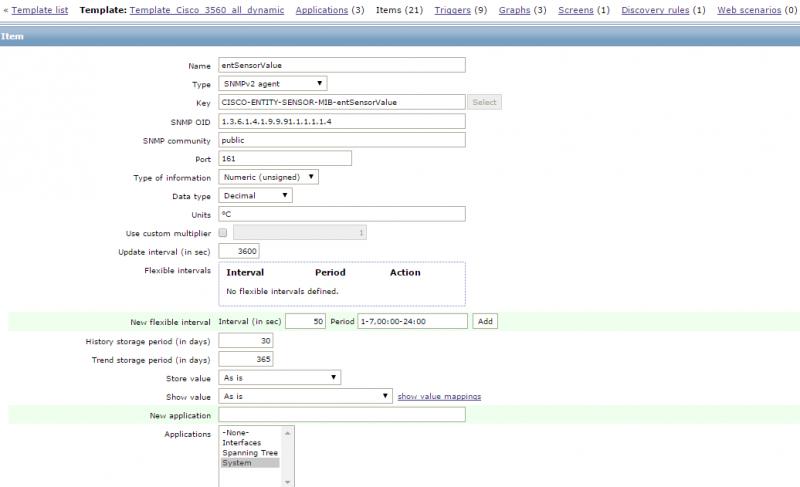

The template I`m using is "Template_Cisco_3560_all_dynamic" and the item I`m using to get the data from is "entSensorValue" (pls correct me if I`m not using the "correct" language)

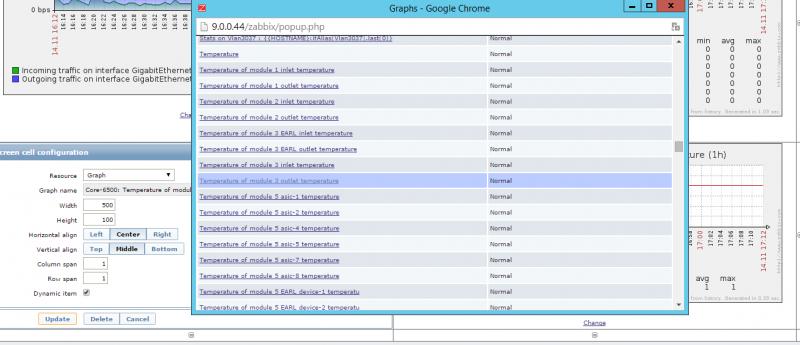

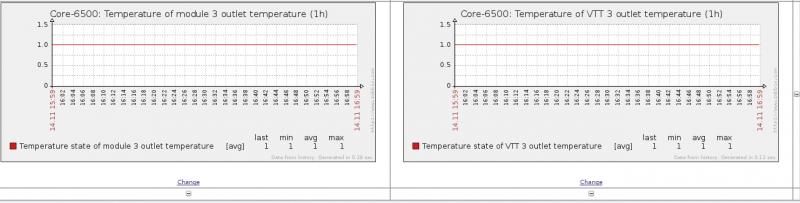

When creating a new screen and trying to add a new graph, for example "Temperature of module 3 outlet temperature", I`m getting a value of 1, always.
I`m attaching a few images to help you understand.

Many thanks !!!
Rodrigo

[Colttt]

Hello,

did you get a Value if you use the OID with snmpget/snmpwalk?

[harmonica]

Hi,

Apparently you are getting data from ciscoEnvMonTemperatureState

1 ⇒ normal
2 ⇒ warning
3 ⇒ critical
4 ⇒ shutdown
5 ⇒ notPresent
6 ⇒ notFunctioning

[RodrigoH]

Thanks a lot for your replies.

Colttt: I ran the command snmpwalk with that OID (1.3.6.1.4.1.9.9.91.1.1.1.1.4) and the result was a lot of lines likes this:
SNMPv2-SMI::enterprises.9.9.91.1.1.1.1.4.9 = INTEGER: 2
Anyways, I could find out what those numbers mean: they represent the different temperatures of each module (in and out).

Now I`ve tried a different thing: instead of adding a graph to my screen, I added a "plain text object" with item entSensorValue (OID 1.3.6.1.4.1.9.9.91.1.1.1.1.4) and the outcome was the number 21. I`m not sure what this number refers to.

harmonica: Should I change the OID for my item? How can I fix that?

Thanks !!

[Colttt]

so snmpwalk for the OID 1.3.6.1.4.1.9.9.91.1.1.1.1.4 get much more values right? so zabbix dont use snmpwalk (only in LLD) it use snmpget also you must use the complete OID, in you example: 1.3.6.1.4.1.9.9.91.1.1.1.1.4.9

take a loom at this too: http://www.circitor.fr/Mibs/Html/CIS...entSensorValue http://tools.cisco.com/Support/SNMP/...lue#oidContent
