    Calculate two items with values from SNMP

    I'm working on a template that is for Netgear ReadyNAS OS 4 and want to calculate the result from two items, one is getting total disk size (volumeSize) and one is getting free disk space (volumeFreeSpace). So I tried to create a new item that is doing the calculation.

    Formula:
    last("volumeFreeSpace")/last("volumeSize")

    But when I'm running the test I get this:
    • Cannot evaluate function "last()": item "Template SNMP ReadyNAS RAIDAR:volumeFreeSpace" does not exist.
    My plan is to based on the results create a trigger that notify me if it exceeds e.g. 20%

    I'm aware that this is an easy task but I'm just a beginner and need some help to get the basics.

    #2
    Click image for larger version

Name:	calculated freestorage.PNG
Views:	17
Size:	15.7 KB
ID:	401759

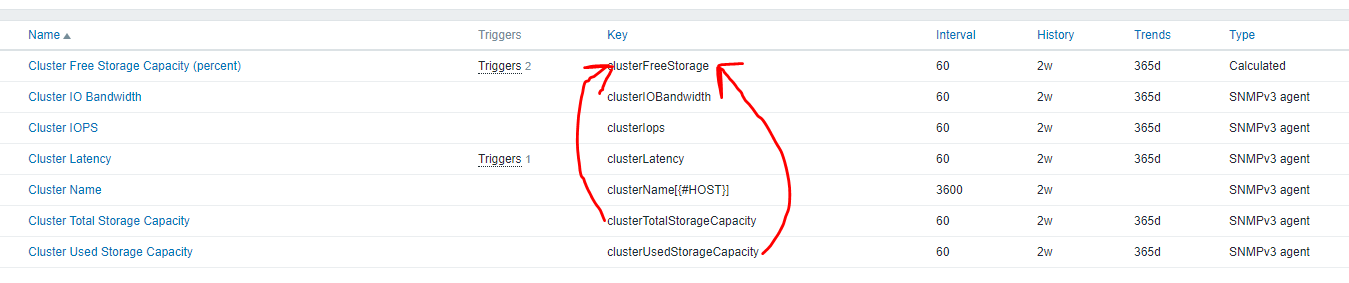

    Click image for larger version

Name:	calculated freestorage - sources.PNG
Views:	16
Size:	37.7 KB
ID:	401760
    Sincerely yours,
    Aleksey

    Comment


      #3
      Thanks Aleksey,

      Now I get it

      Comment
