    Discovery Instructions on Site Don't Match Software

    I'm trying to follow the article to automate system discovery. While following the article the screenshots do not match what I'm seeing at all. Can someone tell me what I'm missing?

    https://www.zabbix.com/documentation...discovery/rule

    I'm stuck on step 2. I don't see anything even resembling the screenshot.

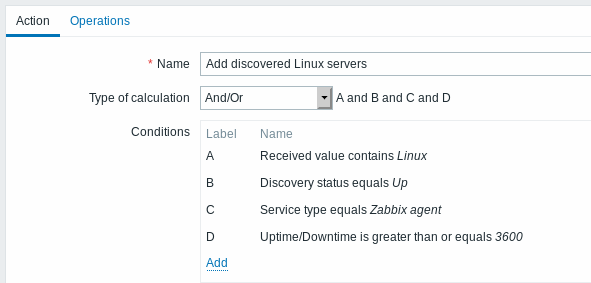

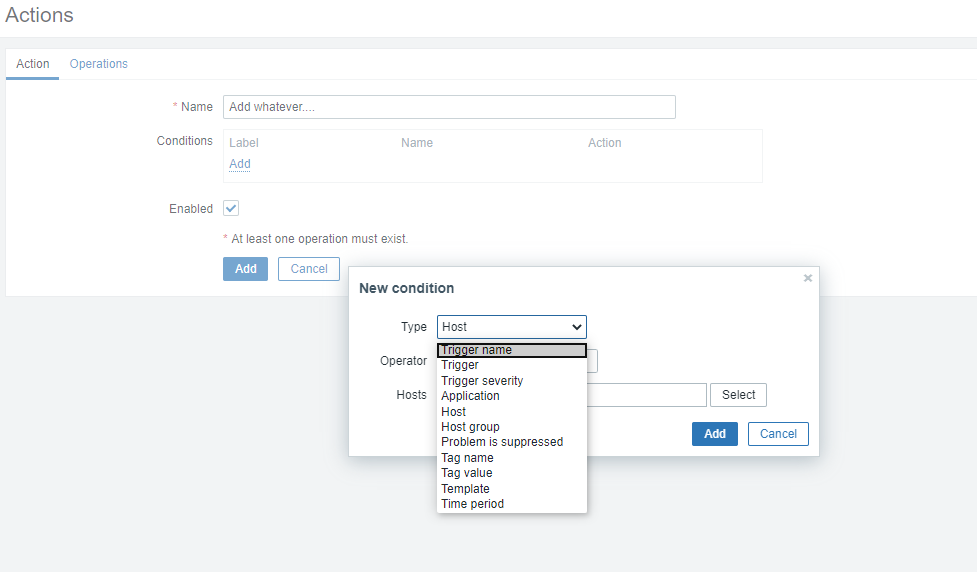

    From Online Documentation From my server
    Click image for larger version

Name:	discov_action.png
Views:	130
Size:	22.1 KB
ID:	402657 Click image for larger version

Name:	Annotation 2020-06-04 134451.png
Views:	118
Size:	38.4 KB
ID:	402658
  • ComputerHabit
    Member
    • Jun 2020
    • 46

    #2
    I'm still hoping someone can please tell me what I'm doing wrong here. The instructions are not clear.

    https://www.zabbix.com/documentation...discovery/rule

    How do I make this RULE? Please.

    Comment

    • ComputerHabit
      Member
      • Jun 2020
      • 46

      #3
      I keep looking for these update rules. Where are they?

      https://www.zabbix.com/documentation...tion/operation
      This doesn't help. Where's the details? Help.

      Comment

      • Hamardaban
        Senior Member
        Zabbix Certified SpecialistZabbix Certified Professional
        • May 2019
        • 2713

        #4
        A listing of existing actions with their details is displayed. The actions displayed are actions assigned to the selected event source (trigger, discovery, autoregistration actions).
        https://www.zabbix.com/documentation...ration/actions

        You are shown options for the "trigger" source . Select the source -
        discovery.
        Last edited by Hamardaban; 08-06-2020, 16:37.

        Comment


        • ComputerHabit
          ComputerHabit commented
          Editing a comment
          I don't understand what you mean. Could you please at least give me breadcrumbs to where?
      • ComputerHabit
        Member
        • Jun 2020
        • 46

        #5
        It seems that none of the Discovery or Autoregistration conditions are there.

        https://www.zabbix.com/documentation...ion/conditions

        Is there a secret to showing them? Do I need a permission?

        Comment

        • ComputerHabit
          Member
          • Jun 2020
          • 46

          #6
          I finally found it. Hey Zabbix documentation control Draw a freaking arrow where to go!!!! Took me so long to notice that field.

          Click image for larger version

Name:	Annotation 2020-06-08 095552.png
Views:	107
Size:	63.0 KB
ID:	402923

          Comment


          • Hamardaban
            Hamardaban commented
            Editing a comment
            You didn't specify the version you are using. In version 4, the interface part was different, but the principle is the same.

          • zoldmaster
            zoldmaster commented
            Editing a comment
            OMG Thank you. I registered here just to say so. I've been poking at the web interface for 2 days now trying to figure out why "Create action" wasn't working like the documentation!
        • cyber
          Senior Member
          Zabbix Certified SpecialistZabbix Certified Professional
          • Dec 2006
          • 4807

          #7
          in version 4, its right upper corner
