Unit conversion - wrong graph

[hacknisty]

Hi all,

I've got a small problem monitoring windows 2008 R2 Server.

I'm using the "\Memory\Available MBytes" performance counter to monitor available RAM.

This performance counter reports available memory in MBytes. And i have thousands of MBytes (let's say 2150 MBytes) memory available.

Here is a trace of what this performance counter report :

"03/03/2015 09:44:32.051","2152.000000"
"03/03/2015 09:44:33.052","2152.000000"
"03/03/2015 09:44:34.053","2152.000000"
"03/03/2015 09:44:35.054","2152.000000"
"03/03/2015 09:44:36.055","2152.000000"
"03/03/2015 09:44:37.057","2152.000000"
"03/03/2015 09:44:38.060","2152.000000"
"03/03/2015 09:44:39.061","2152.000000"
"03/03/2015 09:44:40.062","2152.000000"
"03/03/2015 09:44:41.063","2152.000000"
"03/03/2015 09:44:42.064","2152.000000"

and here is my graph conf :

<graph>
            <name>Windows 2012 R2 Memory Available and Cache</name>
            <width>900</width>
            <height>200</height>
            <yaxismin>0.0000</yaxismin>
            <yaxismax>100.0000</yaxismax>
            <show_work_period>1</show_work_period>
            <show_triggers>1</show_triggers>
            <type>0</type>
            <show_legend>1</show_legend>
            <show_3d>0</show_3d>
            <percent_left>0.0000</percent_left>
            <percent_right>0.0000</percent_right>
            <ymin_type_1>0</ymin_type_1>
            <ymax_type_1>0</ymax_type_1>
            <ymin_item_1>0</ymin_item_1>
            <ymax_item_1>0</ymax_item_1>
            <graph_items>
                <graph_item>
                    <sortorder>0</sortorder>
                    <drawtype>0</drawtype>
                    <color>FF3333</color>
                    <yaxisside>0</yaxisside>
                    <calc_fnc>2</calc_fnc>
                    <type>0</type>
                    <item>
                        <host>Template Windows 2012 R2 Server</host>
                        <key>perf_counter[&quot;\Memory\Available MBytes&quot;,300]</key>
                    </item>
                </graph_item>
                <graph_item>
                    <sortorder>1</sortorder>
                    <drawtype>0</drawtype>
                    <color>00C800</color>
                    <yaxisside>0</yaxisside>
                    <calc_fnc>2</calc_fnc>
                    <type>0</type>
                    <item>
                        <host>Template Windows 2012 R2 Server</host>
                        <key>perf_counter[&quot;\Memory\Cache Bytes&quot;,300]</key>
                    </item>
                </graph_item>
            </graph_items>
        </graph>

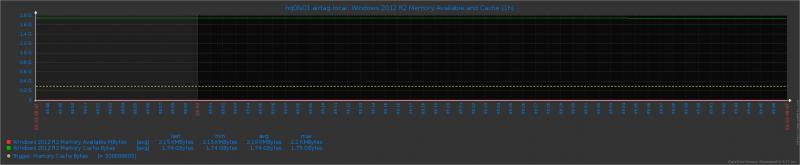

But it seems that zabbix convert this value in K (because it's thousands) and obviously my graph are wrong. (as you can see in the attached image value is KMBytes instead of GBytes)

Do you have any clue on how i get around this ?

[ingus.vilnis]

Hello and welcome to Zabbix forums!

You should be gathering data with the base units which is Bytes.

perf_counter["\Memory\Available Bytes"]

And then in item settings specify Units: B which will then convert your data automatically to KB, MB or GB.

Hope this helps!

Best Regards,
Ingus

[hacknisty]

[SOLVED] Unit conversion - wrong graph

It works great.
Thanks a lot for that tip. I should always retrieve the base unit.

[Johan Luna]

Hello and welcome to Zabbix forums!

You should be gathering data with the base units which is Bytes.

perf_counter["\Memory\Available Bytes"]

And then in item settings specify Units: B which will then convert your data automatically to KB, MB or GB.

Hope this helps!

Best Regards,
Ingus

En el caso de SQL Server, el typeperf, me obliga a que lea en KB
SQLServeratabases(tempdb)\Data File(s) Size (KB) Como podria solucionarlo?
