Template MSSQL and FAILED cannot extract value from json by path

[sysadm.es]

Greetings.

I'm using this official template with zabbix version 5.0.4

https://www.zabbix.com/la/integrations/microsoft_sql

After configure the ODBC connection and verify is working fine, auto discovery can retrieve databases but each value

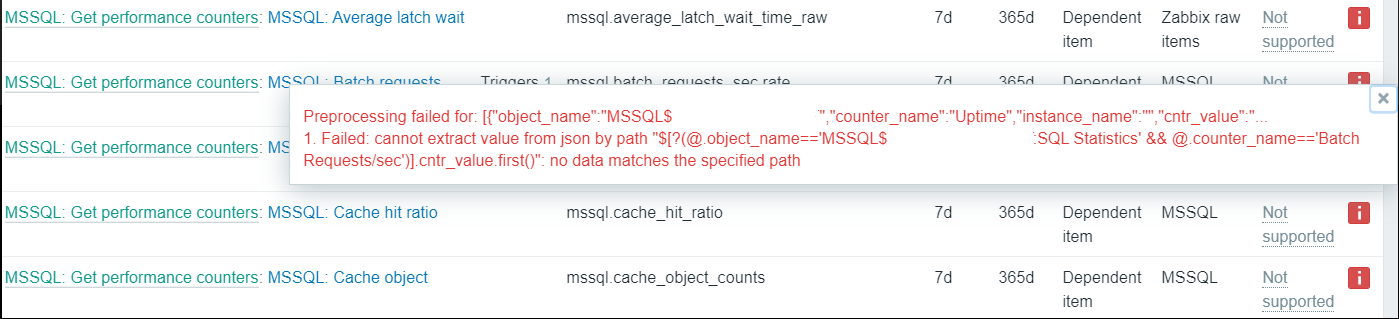

Preprocessing failed for: [{"object_name":"MSSQL$ISNTANCENAME","counter_na me":"Uptime","instance_name":"","cntr_value":".. .
1. Failed: cannot extract value from json by path "$[?(@.object_name=='MSSQL$ISNTANCENAME:SQL Statistics' && @.counter_name=='Batch Requests/sec')].cntr_value.first()": no data matches the specified path

Usually i use other kinds of template, but this one as be official template was testing. What are wrong with this? Anyone tried to work with this ?

Found this thread in the community but didn't understand the solution given

https://www.zabbix.com/forum/zabbix-troubleshooting-and-problems/404455-mssql-by-odbc-cannot-extract-value-from-json

[AVP.Riga]

Good day,

Did you install ODBC drivers for zabbix? Please check /etc/odbcinst.ini and /etc/odbc.ini files. (dnf install unixODBC - if you want install them)
Fist file must contain something like that:

# Driver from the freetds-libs package
# Setup from the unixODBC package
[FreeTDS]
Description = Free Sybase & MS SQL Driver
Driver = /usr/lib/libtdsodbc.so
Setup = /usr/lib/libtdsS.so
Driver64 = /usr/lib64/libtdsodbc.so
Setup64 = /usr/lib64/libtdsS.so
Port = 1433

second one can(or not) contain:

[mssql01]
Description = mssql01.test.com database
Driver = FreeTDS
Server = x.x.x.x

[sysadm.es]

Good day,

Did you install ODBC drivers for zabbix? Please check /etc/odbcinst.ini and /etc/odbc.ini files. (dnf install unixODBC - if you want install them)
Fist file must contain something like that:

# Driver from the freetds-libs package
# Setup from the unixODBC package
[FreeTDS]
Description = Free Sybase & MS SQL Driver
Driver = /usr/lib/libtdsodbc.so
Setup = /usr/lib/libtdsS.so
Driver64 = /usr/lib64/libtdsodbc.so
Setup64 = /usr/lib64/libtdsS.so
Port = 1433

second one can(or not) contain:

[mssql01]
Description = mssql01.test.com database
Driver = FreeTDS
Server = x.x.x.x

Greetings AVP.Riga, thanks for your answer.

it's not a problem related with the ODBC, the ODBC is running fine.

I'm using directly the ODBC driver from Microsoft not FReeTDS.

https://docs.microsoft.com/en-us/sql...l-server-ver15

The connection from zabbix to the MSSQLServer through Microsoft ODBC Driver is working fine.

The problem is related with the XML template and how retrieve the patterns through the regex.

[sysadm.es]

I found where the problem and a workaround

explained here:

https://support.zabbix.com/projects/ZBX/issues/ZBX-18554
