ICMP Response time in zabbix

[mansourh12120]

Hi every one
i'm trying to undrestand how macro {ICMP_RESPONSE_TIME_WARN} in zabbix is working and what is means

[Atsushi]

Probably the macro set in the template. Try opening the settings for the appropriate template and clicking the Macros tab. I think the value of that macro is set.

ex. Template Module ICMP Ping

[mansourh12120]

Thanks dear!

[mansourh12120]

hello every body!
i created a file in externalscript and wrote below script in it

#!/bin/bash
packetloss= 'ping -q -i0.30 -n -s 50 -c5 ${1} | grep "packet loss" | cut -d " " -f6 | cut -d "%" -f1
[ -z "$ {packetloss}" ] && packetloss=100
echo "${packetloss}"

now i create an item with key packetloss(script file name) but i get this error" value of type "string" is not suitable for value type(float)".value "connect:invalid argument
thanks

[derli1988]

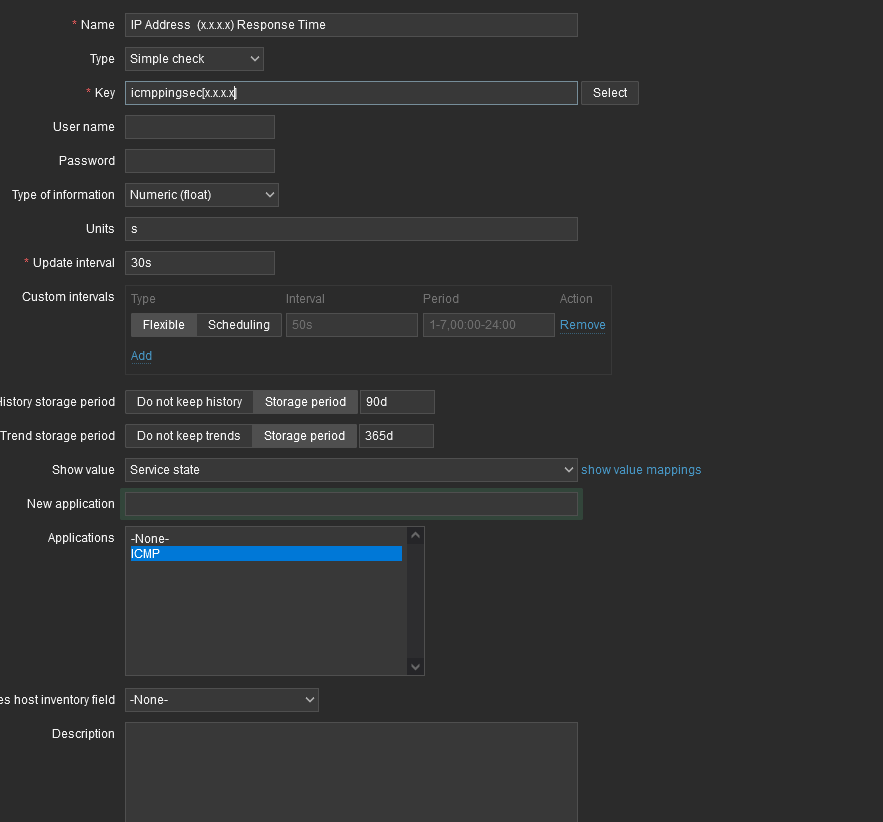

Just create an item on the host you want to monitor, the item should be exactly like the one on the screenshot

Change the x.x.x.x with the IP you want to to get response times.
