Issues getting text output from UserParameters

[shaun666]

Hi,

We are currently using Zabbix v2.0 and we have a number of UserParameter definitions which emit integers perfectly.

Today I would like one to emit a text string instead: a Yes or a No:

UserParameter=mysql.slave_status[*],mysql -u XXX -XXX -Bse "show slave status\G" | awk -F: -v var=$1 '{ if ( $1 ~ var ) {print "data:"$$2} }'

If I run this in the command (with $1 as Slave_IO_Running) I get:
data:Yes

However if I execute zabbix_get -s testhost -k mysql.slave_status["Slave_IO_Running"] on my Zabbix server I get no output

On the client I get this:

[root@ams-mysqlwell-03 zabbix_agentd.d]# zabbix_agent -t mysql.slave_status[Slave_IO_Running]
mysql.slave_status[Slave_IO_Running] [t|]

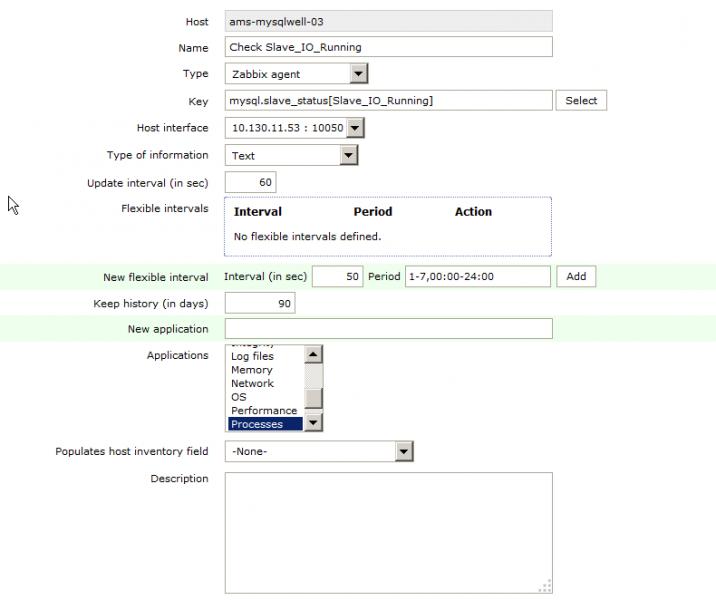

My item configuration looks like this:


Please could someone explain what I am doing wrong?

[Atsushi]

Please try change second $1 to $$1.

UserParameter=mysql.slave_status[*],mysql -u XXX -XXX -Bse "show slave status\G" | awk -F: -v var=$1 '{ if ( $$1 ~ var ) {print "data:"$$2} }'

[shaun666]

Hi,

First of thanks for your advice...

I tried your suggestion but still no luck.... There is still no response.

For completeness here is the debug log output

21984:20150929:171154.500 In zbx_popen() command:'mysql -u zabbix -pjku8765 -Bse "show slave status\G" | awk -F: -v var=Slave_IO_Running '{ if ( Slave_IO_Running ~ var ) {print "data:"$2} }''
21984:20150929:171154.501 End of zbx_popen():7
22444:20150929:171154.501 zbx_popen(): executing script
21984:20150929:171154.507 In zbx_waitpid()
21984:20150929:171154.507 zbx_waitpid() exited, status:0 # NB Here we can see the command terminated normally i.e. it was successful.
21984:20150929:171154.508 End of zbx_waitpid():22444

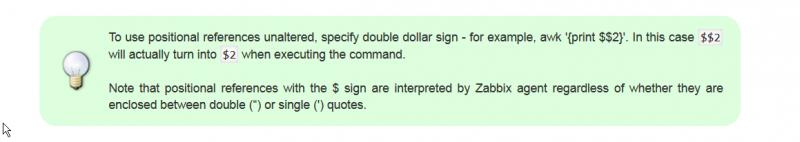

Here is why I used two dollar symbols:
(From https://www.zabbix.com/documentation...userparameters)

[shaun666]

I've written a much simpler expressions which works fine:

UserParameter=mysql.slave_status[*],mysql -u XXXXX -pXXXXX -Bse "show slave status\G" | grep -m 1 $1 | awk '{ print $$2 }'

This produces a nice text string

zabbix_get -s testhost -k mysql.slave_status["Last_IO_Errno"]
Last_IO_Errno: 0

This is sufficient for my purposes but could someone explain why the whole line is printed rather than the last field, which is what my awk snippet does when used on the command line. NB I get the same result with one dollar symbol

TIA

Shaun
