Monitoring port security voilations on Cisco switches over SNMP

[sf-it]

Hello there,

so we are running some Cisco switches (sg350x-48p), where port security is configured and we would like to monitor if someone caused a port violation. We already do have a existing template but would like to add these OIDs

portAdditionalOperStatus 1.3.6.1.4.1.9.5.1.4.1.1.23
or
cpsIfPortSecurityStatus 1.3.6.1.4.1.9.9.315.1.2.1.1.2

to the Item prototypes but i've got no idea how. Do I have to create a new discovery list or edit an existing one? Iam fairly new to this topic and on how the discoverylist exactly works and if the key always need to be a specific one. I couldnt find any clues on the internet on how i could get these SNMP OIDs
queried.

Big thanks in advance for any help.

Here are some screenshots of how the Template looks:

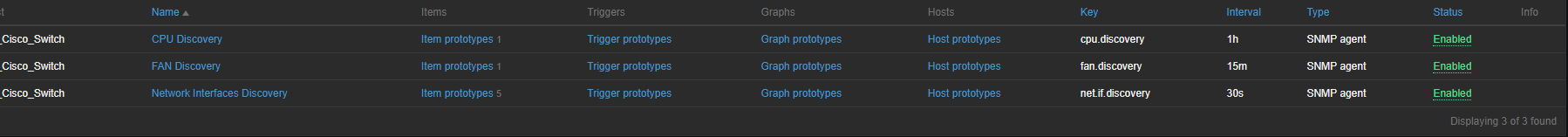

Discovery List:


Network interfaces Discovery:

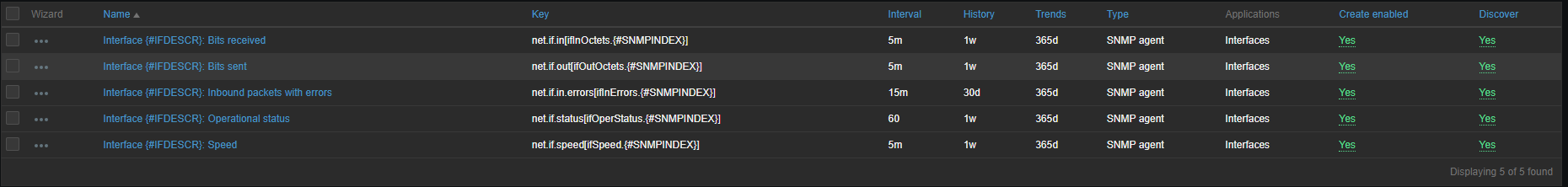

Item Prototypes:



Best regards,

[tomdom]

Hey st-it did you fix the problem? Also wants to monitor port-security status

[ISiroshtan]

Just add new item prototypes under same discovery.

For example you can go with following for port Additional Operational Status: key like net.if.adStatus[portAdditionalOperStatus.{#SNMPINDEX}], making sure to set data type corresponding to data that is actually returned(not sure data type for said OID. Can start with string and see what is actually returned).

[Regie Quinio]

Hi sf-it

Did you successfully monitored port secuirty violations ? can you share ? I already added the same config just like on your photos but still unable to monitor port sec violations on my cisco switches. TIA.
