[5.4.6] SNMP traps with containerised Zabbix

[AdamR]

I have turned to the hive for help as apart from being still a novice when it comes to Zabbix, I've been trying to figure this out for last couple of days.
The SNMP traps are not showing in the GUI for some reason.

I have deployed Zabbix-5.4.6 with podman on Rocky Linux 8 with:

podman pod create --name zabbix -p 80:8080 -p 10051:10051 -p 162:1162/udp -p 3000:3000

podman run -d --name=grafana -p 3000:3000 docker.io/grafana/grafana-enterprise

podman run --name zabbix-snmptraps -t \
-v /zbx_instance/snmptraps:/var/lib/zabbix/snmptraps:rw \
-v /var/lib/zabbix/mibs:/usr/share/snmp/mibs:ro \
--pod=zabbix \
--restart unless-stopped \
-d docker.io/zabbix/zabbix-snmptraps:latest


podman run --name zabbix-agent \
-e ZBX_SERVER_HOST="127.0.0.1,localhost" \
--restart=always \
--pod=zabbix \
-d docker.io/zabbix/zabbix-agent:latest


podman run --name zabbix-server-pgsql -t \
-e DB_SERVER_HOST="192.168.70.15" \
-e POSTGRES_DATABASE="zabbix7" \
-e POSTGRES_USER="zabbix7" \
-e POSTGRES_PASSWORD="zabbix7" \
-e ZBX_ENABLE_SNMP_TRAPS="true" \
-v /zbx_instance/snmptraps:/var/lib/zabbix/snmptraps:rw \
-v /var/lib/zabbix/mibs:/usr/share/snmp/mibs:ro \
--restart=always \
--pod=zabbix \
-d docker.io/zabbix/zabbix-server-pgsql:latest

podman run --name zabbix-web-nginx-pgsql -t \
-e ZBX_SERVER_HOST="127.0.0.1" \
-e DB_SERVER_HOST="192.168.70.15" \
-e POSTGRES_DATABASE="zabbix7" \
-e POSTGRES_USER="zabbix7" \
-e POSTGRES_PASSWORD="zabbix7" \
-e ZBX_ENABLE_SNMP_TRAPS="true" \
--restart=always \
--pod=zabbix \
-d docker.io/zabbix/zabbix-web-nginx-pgsql:latest


podman generate systemd --restart-policy=always -t 1 -f --name zabbix

cp pod-zabbix.service container-zabbix-* /etc/systemd/system/

systemctl enable --now pod-zabbix.service

Had to disable Selinux as zabbix-smtptraps container couldn't write to /var/lib/zabbix/snmptraps. If someone knows solution please feel free to chip in.

When I sent the trap with

[root@podman ~]# snmptrap -v 1 -c public 192.168.70.240 '.1.3.6.1.6.3.1.1.5.3' '0.0.0.0' 6 33 '55' .1.3.6.1.6.3.1.1.5.3 s "zmzmzmzmzmzmzmz"

I can see the trap being received by zabbix-snmptraps container

2021-10-31 22:12:36 0.0.0.0(via UDP: [10.88.0.1]:49645->[10.88.0.14]:1162) TRAP, SNMP v1, community public
iso.3.6.1.6.3.1.1.5.3 Enterprise Specific Trap (33) Uptime: 55
iso.3.6.1.6.3.1.1.5.3 = STRING: "qpqpqpqpqpqpqpqpq"
2021-10-31 22:14:26 0.0.0.0(via UDP: [10.88.0.1]:36369->[10.88.0.14]:1162) TRAP, SNMP v1, community public
iso.3.6.1.6.3.1.1.5.3 Enterprise Specific Trap (33) Uptime: 55
iso.3.6.1.6.3.1.1.5.3 = STRING: "zmzmzmzmzmzmzmz"
2021-10-31 22:30:55 0.0.0.0(via UDP: [192.168.70.240]:44643->[10.88.0.14]:1162) TRAP, SNMP v1, community public
iso.3.6.1.6.3.1.1.5.3 Enterprise Specific Trap (33) Uptime: 55
iso.3.6.1.6.3.1.1.5.3 = STRING: "zmzmzmzmzmzmzmz"

and read by the zabbix-server

 190:20211031:223056.778 unmatched trap received from "192.168.70.240": 20211031.223055 UDP: [192.168.70.240]:44643->[10.88.0.14]:1162
iso.3.6.1.2.1.1.3.0 = 55
iso.3.6.1.6.3.1.1.4.1.0 = iso.3.6.1.6.3.1.1.5.3.0.33
iso.3.6.1.6.3.1.1.5.3 = "zmzmzmzmzmzmzmz"
iso.3.6.1.6.3.18.1.4.0 = "public"
iso.3.6.1.6.3.1.1.4.3.0 = iso.3.6.1.6.3.1.1.5.3

The snmptraps.log file contains the traps as expected.

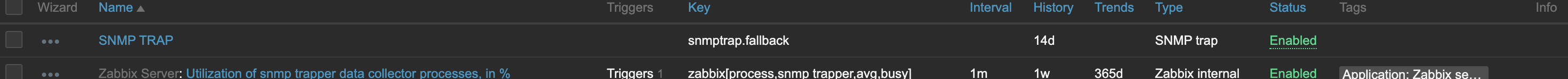

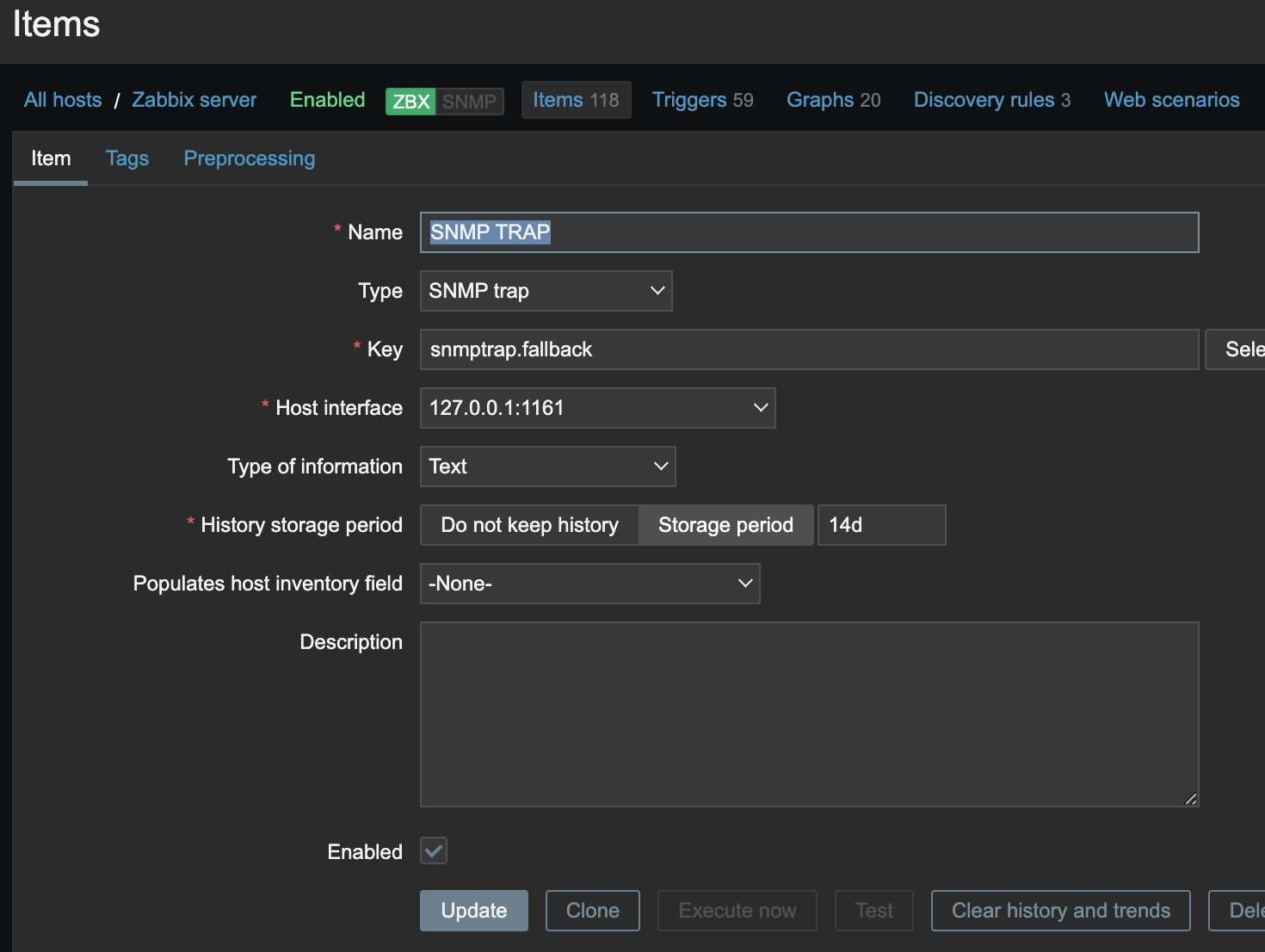

Zabbix is configured as follows:





zabbix_server.conf from server container

...
...
### Option: SNMPTrapperFile
# Temporary file used for passing data from SNMP trap daemon to the server.
# Must be the same as in zabbix_trap_receiver.pl or SNMPTT configuration file.
#
# Mandatory: no
# Default:
# SNMPTrapperFile=/tmp/zabbix_traps.tmp
SNMPTrapperFile=/var/lib/zabbix/snmptraps/snmptraps.log

### Option: StartSNMPTrapper
# If 1, SNMP trapper process is started.
#
# Mandatory: no
# Range: 0-1
# Default:
# StartSNMPTrapper=0
StartSNMPTrapper=1
...
...

snmptrap.conf from zabbix-snmptraps container

bash-5.1$ cat /etc/snmp/snmptrapd.conf

# A list of listening addresses, on which to receive incoming SNMP notifications

snmpTrapdAddr udp:1162

snmpTrapdAddr udp6:1162


# Do not fork from the calling shell

doNotFork yes

# File in which to store the process ID of the notification receiver

pidFile /tmp/snmptrapd.pid

# Disables support for the NOTIFICATION-LOG-MIB

doNotRetainNotificationLogs yes


authCommunity log,execute,net public

disableAuthorization yes

ignoreAuthFailure yes


# Specify the format used for trap handle location

#format execute %B\n%b\n%V\n%v\n


# o - Log messages to the standard output stream.

# logOption o


# S - Display the name of the MIB, as well as the object name (This is the default OID output format)

# T - If values are printed as Hex strings, display a printable version as well

# t - Display TimeTicks values as raw numbers

# e - Removes the symbolic labels from enumeration values

#

outputOption STte


# Invokes the specified program (with the given arguments) whenever a notification

# is received that matches the OID token

traphandle default /bin/bash /usr/sbin/zabbix_trap_handler.sh

Could any one throw me a bone here and point me in the right direction please.

[AdamR]

For those who end up in the same situation the answer is selinux context. You need to append "z" option to the shares that
both zabbix server and snmp traps access together with couple minor changes to adjust docker instructions to podman accross all contaioners.

So

podman run --name zabbix-snmptraps -t \
-v /zbx_instance/snmptraps:/var/lib/zabbix/snmptraps:rw \
-v /var/lib/zabbix/mibs:/usr/share/snmp/mibs:ro \
--network=zabbix-net \
-p 162:1162/udp \
--restart unless-stopped \
-d zabbix/zabbix-snmptraps:alpine-5.4-latest


podman run --name zabbix-server-pgsql -t \
-e DB_SERVER_HOST="192.168.70.15" \
-e POSTGRES_USER="zabbix" \
-e POSTGRES_PASSWORD="zabbix" \
-e POSTGRES_DB="zabbix2" \
-e ZBX_ENABLE_SNMP_TRAPS="true" \
--network=zabbix-net \
-p 10051:10051 \
--volumes-from zabbix-snmptraps \
--restart unless-stopped \
-d zabbix/zabbix-server-pgsql:alpine-5.4-latest

becomes

podman run --name zabbix-snmptraps -t \
-v /zbx_instance/snmptraps:/var/lib/zabbix/snmptraps:z \
-v /var/lib/zabbix/mibs:/usr/share/snmp/mibs:z \
--pod=zabbix \
--restart=always \
-d zabbix/zabbix-snmptraps:alpine-5.4-latest


podman run --name zabbix-server-pgsql -t \
-e DB_SERVER_HOST="192.168.70.15" \
-e POSTGRES_USER="zabbix" \
-e POSTGRES_PASSWORD="zabbix" \
-e POSTGRES_DB="zabbix2" \
-e ZBX_ENABLE_SNMP_TRAPS="true" \
--pod=zabbix \
-v /zbx_instance/snmptraps:/var/lib/zabbix/snmptraps:z \
-v /var/lib/zabbix/mibs:/usr/share/snmp/mibs:z \
--restart=always \
-d zabbix/zabbix-server-pgsql:alpine-5.4-latest

Good luck

[lmonasterio]

Hi AdamR! As i understand, you need to modify snmptrapd.conf to accept communities other than public. But how can you do that if you need to persist that file? How can you edit it? Thanks!

[AdamR]

Hi AdamR! As i understand, you need to modify snmptrapd.conf to accept communities other than public. But how can you do that if you need to persist that file? How can you edit it? Thanks!

You need to redirect configs to your host aka create persistent volumes.

[lmonasterio]

Thanks AdamR ! And one more thing... The container does not come with snmtrap bin file. How can i test so?
