Problem showing full value on map label

[s.gasca]

Hi,

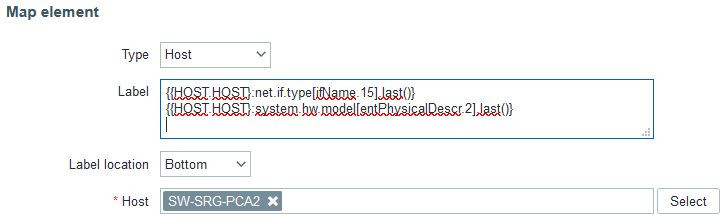

I have done a Map Element where my label uses macro to show an Interface Name and hardware Model of a Network Switch.

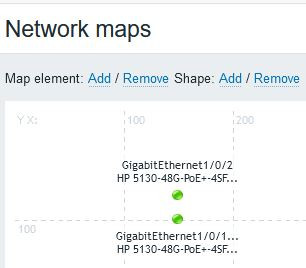

it works for interface number 1/0/1 to 1/0/9 but when i have a value 1/0/10 i have 1/0/1...
Also for the hardware model i don't have the full value also finishing with ...


How can i have the full text value ?

Thanks.

[niveastn]

Hey there.

Natively I dont think you can, but maybe the workarounds in this other forum post can help you https://www.zabbix.com/forum/zabbix-...max-label-size

[s.gasca]

Thanks a lot i found it on '/usr/share/zabbix/include/items.inc.php'

change 20 to 100 on this part :

 // apply value mapping
switch ($item['value_type']) {
case ITEM_VALUE_TYPE_STR:
$mapping = getMappedValue($value, $item['valuemapid']);
// break; is not missing here

case ITEM_VALUE_TYPE_TEXT:
case ITEM_VALUE_TYPE_LOG:
if ($trim && mb_strlen($value) > 20) {
$value = mb_substr($value, 0, 20).'...';
}

if ($mapping !== false) {
$value = $mapping.' ('.$value.')';
}

break;

default:
$value = applyValueMap($value, $item['valuemapid']);
}

return $value;
}
