Hi,
We use Zabbix to monitor OSPF and BGP on our FortiGate firewalls using SNMP. The Firewalls are using Virtual Domains (VDOM) to isolate traffic and as per FortiGate's instruction to be able to access data within a VDOM, you have to change the SNMP community string to the format "CommunitySting-VDOM" by appending the name of the VDOM to the Community String, so to access the VDOM called "AWS" via SNMP, I need to pass a community string to "MyCommunityString-AWS".
Zabbix has a Host item for the Firewall with multiple SNMP interfaces, one for each community string that requires access to a VDOM, E.g. "MyCommunityString-AWS"
In Zabbix 5.4 I was able to create Discovery Rules and Item Prototypes and change the SNMP Interface on the Discovery Rule and on the Item Prototype.
In Zabbix 6.0.6 I am able to change the Host Interface on the Discovery Rule, but the drop down on the Item Prototype does not work.
Please see attached for examples of the issue.

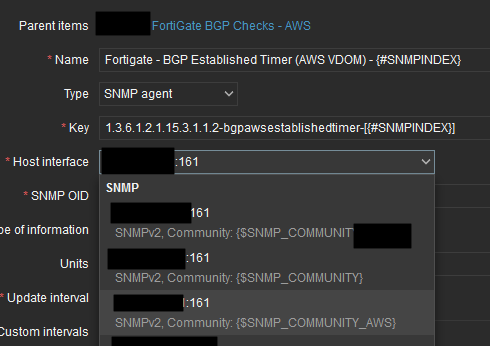

Zabbix 5.4, I'm able to change the Host Interface on both the Discovery Rule and the Item Prototype

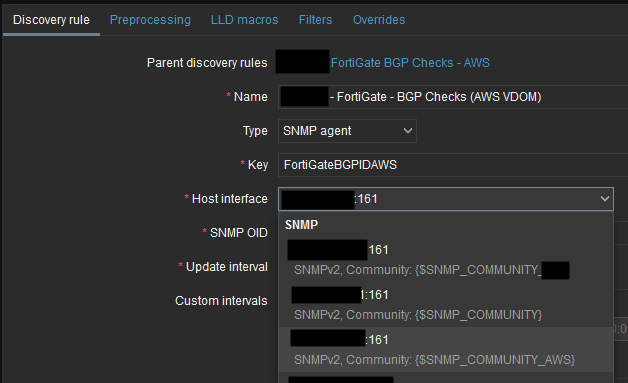

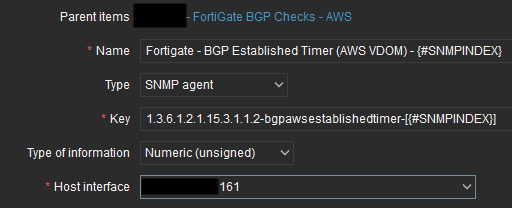

Zabbix 6.0, I'm able to change the Host Interface on the Discovery Rule, however, the Host Interface on the Item Prototype does not allow me to drop down and select the appropriate SNMP Host Interface
Has anyone managed to work around this?
We use Zabbix to monitor OSPF and BGP on our FortiGate firewalls using SNMP. The Firewalls are using Virtual Domains (VDOM) to isolate traffic and as per FortiGate's instruction to be able to access data within a VDOM, you have to change the SNMP community string to the format "CommunitySting-VDOM" by appending the name of the VDOM to the Community String, so to access the VDOM called "AWS" via SNMP, I need to pass a community string to "MyCommunityString-AWS".
Zabbix has a Host item for the Firewall with multiple SNMP interfaces, one for each community string that requires access to a VDOM, E.g. "MyCommunityString-AWS"
In Zabbix 5.4 I was able to create Discovery Rules and Item Prototypes and change the SNMP Interface on the Discovery Rule and on the Item Prototype.
In Zabbix 6.0.6 I am able to change the Host Interface on the Discovery Rule, but the drop down on the Item Prototype does not work.
Please see attached for examples of the issue.
Zabbix 5.4, I'm able to change the Host Interface on both the Discovery Rule and the Item Prototype
Zabbix 6.0, I'm able to change the Host Interface on the Discovery Rule, however, the Host Interface on the Item Prototype does not allow me to drop down and select the appropriate SNMP Host Interface
Has anyone managed to work around this?
