Zabbix Agent2 on Windows can't get hdd smart data.

[akong77]

Hello,
I have installed zabbix agent2 on windows server and setup smartctl done.One windows smart data always show no data on zabbix server.

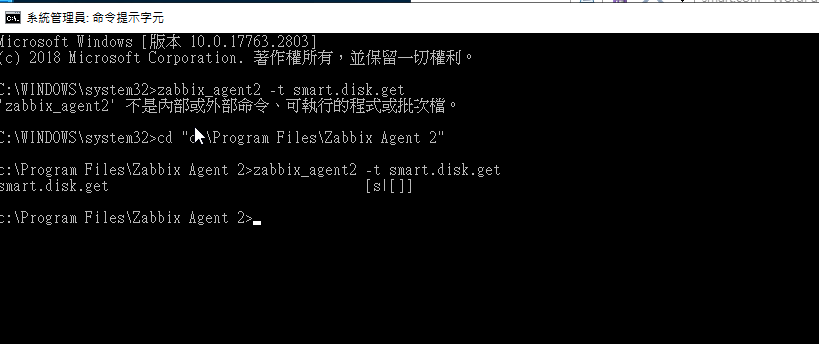

I test command on windows.

zabbix_agent2 -t smart.disk.get

It's got message like follow

smart.disk.get [s|[]]

I don't know what is mean.I have test another windows server.It's will get more information.How to fix it?

[vladimir_lv]

Hi!

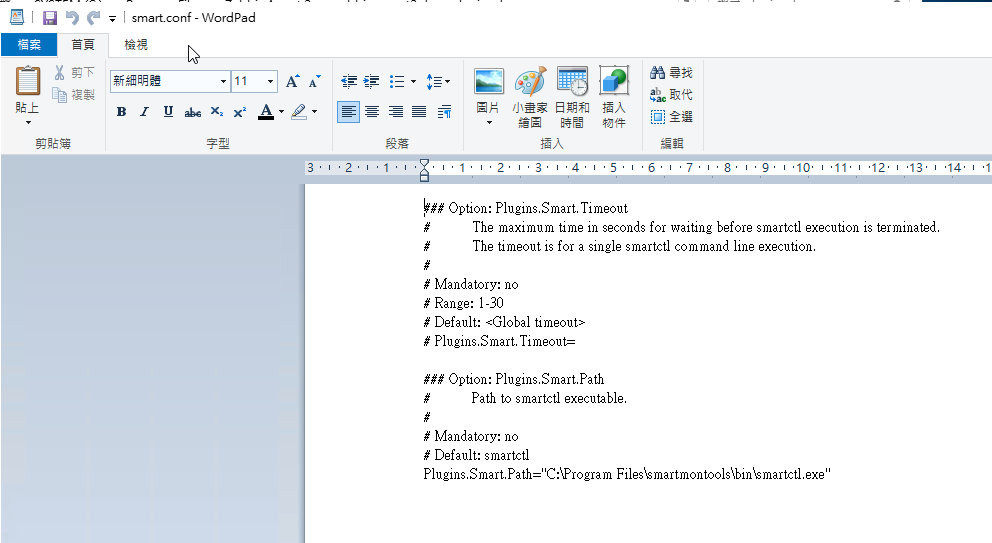

You have to install smartmontools and then add the line to C:\Program Files\Zabbix Agent 2\zabbix_agent2.d\plugins.d\smart.conf

 Plugins.Smart.Path="C:\Program Files\smartmontools\bin\smartctl.exe"

Restart agent.
The command zabbix_agent2 -t smart.disk.get still shows an error but if you use the template SMART by Zabbix agent 2 or SMART by Zabbix agent 2 active, everything will work fine

[akong77]

Yes,I has installed smartmontools and add the line to C:\Program Files\Zabbix Agent 2\zabbix_agent2.d\plugins.d\smart.conf





I don't know what is this problem.I has restart zabbix agent2.I have another windows machine.It's the same settings.It's all ok.

[vladimir_lv]

Ups... I am stupid, of course, you need to use your config file:

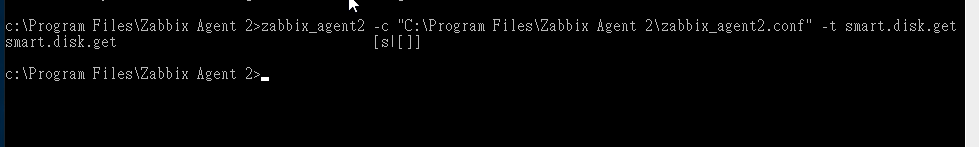

zabbix_agent2 -c "C:\Program Files\Zabbix Agent 2\zabbix_agent2.conf" -t smart.disk.get

[akong77]

I test it.



It's the same error.

[vladimir_lv]

But you get output from the command?

smartctl.exe -a /dev/sda

[akong77]

It's have harddisk information.

[markosa]

Does Zabbix agent have sufficient rights to run smartctl ? I can see that you are running that cmd with admin rights... Any errors related to agent/smartctl in Windows events?

[akong77]

I run

zabbix_agent2 -c "C:\Program Files\Zabbix Agent 2\zabbix_agent2.conf" -t smart.disk.get

this command is use admin permission.

[dimir]

Could you enable logging (DebugLevel=5), run zabbix_agent2 again and attach the log output?

[akong77]

OK,I try it.

[akong77]

I have two windows server.One is Intel cpu and zabbix agent2 can get it.Can't get data is amd cpu.Is this question?

[akong77]

I attach my log file.Please check it.Thanks a lot.
Because upload file size limit.So I compress to zip file.

[vladimir_lv]

I see the requests and answers for 'smart.disk.discovery' only. Could you run zabbix_agent2 -c "C:\Program Files\Zabbix Agent 2\zabbix_agent2.conf" -t smart.disk.get and attach the log once again?

[akong77]

Hello,
First I clean the log and restart zabbix agent2.Then I run this command.But it's only show zabbix agent start log.

2022/08/03 13:58:19.410101 Starting Zabbix Agent 2 (6.0.7)
2022/08/03 13:58:19.421426 OpenSSL library (OpenSSL 1.1.1k 25 Mar 2021) initialized
2022/08/03 13:58:19.421947 default context ciphersuites: TLS_CHACHA20_POLY1305_SHA256 TLS_AES_128_GCM_SHA256 ECDHE-PSK-AES128-CBC-SHA256 ECDHE-PSK-AES128-CBC-SHA PSK-AES128-GCM-SHA256 PSK-AES128-CCM8 PSK-AES128-CCM PSK-AES128-CBC-SHA256 PSK-AES128-CBC-SHA
2022/08/03 13:58:19.421947 psk context ciphersuites: TLS_CHACHA20_POLY1305_SHA256 TLS_AES_128_GCM_SHA256 ECDHE-PSK-AES128-CBC-SHA256 ECDHE-PSK-AES128-CBC-SHA PSK-AES128-GCM-SHA256 PSK-AES128-CCM8 PSK-AES128-CCM PSK-AES128-CBC-SHA256 PSK-AES128-CBC-SHA
2022/08/03 13:58:19.422459 using configuration file: C:\Program Files\Zabbix Agent 2\zabbix_agent2.conf
2022/08/03 13:58:19.422459 using plugin 'Agent' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.422459 using plugin 'Ceph' (built-in) providing following interfaces: exporter, runner, configurator
2022/08/03 13:58:19.422459 using plugin 'Cpu' (built-in) providing following interfaces: exporter, collector, runner
2022/08/03 13:58:19.422459 using plugin 'DNS' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.422980 using plugin 'File' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.422980 using plugin 'Log' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.422980 using plugin 'MQTT' (built-in) providing following interfaces: watcher, configurator
2022/08/03 13:58:19.422980 using plugin 'Memcached' (built-in) providing following interfaces: exporter, runner, configurator
2022/08/03 13:58:19.422980 using plugin 'Memory' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.422980 using plugin 'Modbus' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.422980 using plugin 'Mysql' (built-in) providing following interfaces: exporter, runner, configurator
2022/08/03 13:58:19.422980 using plugin 'NetIf' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.422980 using plugin 'Oracle' (built-in) providing following interfaces: exporter, runner, configurator
2022/08/03 13:58:19.422980 using plugin 'Postgres' (built-in) providing following interfaces: exporter, runner, configurator
2022/08/03 13:58:19.422980 using plugin 'Proc' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.422980 using plugin 'Redis' (built-in) providing following interfaces: exporter, runner, configurator
2022/08/03 13:58:19.422980 using plugin 'Smart' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.422980 using plugin 'Swap' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.423491 using plugin 'SystemRun' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.423491 using plugin 'TCP' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.423491 using plugin 'UDP' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.423491 using plugin 'Uname' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.423491 using plugin 'Uptime' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.423491 using plugin 'Users' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.423491 using plugin 'VFSDir' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.423491 using plugin 'VMemory' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.423491 using plugin 'VfsFs' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.423491 using plugin 'WebCertificate' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.423491 using plugin 'WebPage' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.423491 using plugin 'WindowsEventlog' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.423491 lowering the plugin WindowsPerfInstance capacity to 1 as the configured capacity 100 exceeds limits
2022/08/03 13:58:19.423491 using plugin 'WindowsPerfInstance' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.423994 using plugin 'WindowsPerfMon' (built-in) providing following interfaces: exporter, collector, runner
2022/08/03 13:58:19.424012 using plugin 'WindowsServices' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.424012 using plugin 'Wmi' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.424012 using plugin 'ZabbixAsync' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.424012 using plugin 'ZabbixStats' (built-in) providing following interfaces: exporter, configurator
2022/08/03 13:58:19.424012 lowering the plugin ZabbixSync capacity to 1 as the configured capacity 100 exceeds limits
2022/08/03 13:58:19.424012 using plugin 'ZabbixSync' (built-in) providing following interfaces: exporter
2022/08/03 13:58:19.424012 [Modbus] Config is valid
2022/08/03 13:58:20.117136 Plugin support version 1.0
2022/08/03 13:58:20.117136 Zabbix Agent2 hostname: [LT-TP NEW-ERP-Agent2]
2022/08/03 13:58:20.117136 starting manager
2022/08/03 13:58:20.117669 [0] starting listener for '0.0.0.0:10052'
2022/08/03 13:58:20.117669 listening for control connections on \\.\pipe\agent.sock

[vladimir_lv]

1. Set the parameter in your config file:

    DebugLevel=4

2. Restart agent
3. Run the command

    zabbix_agent2 -c "C:\Program Files\Zabbix Agent 2\zabbix_agent2.conf" -t smart.disk.get

   Make sure that the path for the config file is correct
4. Check the log

The log should look like:

2022/08/03 09:09:30.355310 [1] processing update request (1 requests)
2022/08/03 09:09:30.355915 [1] adding new request for key: 'smart.disk.get[/dev/sda,""]'
2022/08/03 09:09:30.355915 [1] created direct exporter task for plugin 'Smart' itemid:0 key 'smart.disk.get[/dev/sda,""]'
2022/08/03 09:09:30.355915 executing direct exporter task for key 'smart.disk.get[/dev/sda,""]'
2022/08/03 09:09:30.478884 executed direct exporter task for key 'smart.disk.get[/dev/sda,""]'
