proxy_history

[fiddletwix]

Can someone better explain what the proxy_history table is used for? All metrics on the proxy and zabbix server look fine but the number of rows in proxy_history vary from 100000-900000. Is this something I should be worried about?

Here's my proxy config


Server=zabbix-server
ServerPort=10051
Hostname=proxy01
ListenPort=10051
LogFile=/var/log/zabbix_proxy.log
LogFileSize=0
PidFile=/var/run/zabbix/zabbix_proxy.pid
ProxyOfflineBuffer=1
ConfigFrequency=300
DataSenderFrequency=3
StartPollers=600
StartTrappers=200
StartPingers=40
StartHTTPPollers=20
CacheSize=8G
StartDBSyncers=40
HistoryCacheSize=2G
HistoryIndexCacheSize=2G
Timeout=15
ExternalScripts=/usr/lib/zabbix/externalscripts
LogSlowQueries=3000
Include=/etc/zabbix/zabbix_proxy.conf.d/*.conf


A few other notes:

My proxy system specs are 12 hyperthreaded cores. 48G of memory. The mysql server currently resides on the same server but will be moving off. However, I see no issues on the mysql server.

This Proxy server is my first proxy server in this infrastructure and nvps is only about 215 or so.

The proxy and zabbix server are seperated by a WAN(~80ms latency) with more than enough capacity for bandwidth.

Caches are near empty, processes are pretty idle and things look good but that proxy_history table is all over the place.

I'm open to general proxy tuning suggestions as well.

[kloczek]

StartPollers=600

Looks like you are still using passive monitoring.

As long as you will not change all "zabbix agent" to "zabbix agent (active)" items and will not start using active agents setup proxy will be consuming more and more context switches because with co many pollers threads you are saturating probably now num_of_CPUs*1000 cs/s involuntary context switches per second.
I can bet that now it is you only problem/bottleneck

In your base OS template you should have always monitoring of system.cpu.switches[]

In attachment you can find my "OS Linux" and "OS Solaris" templates and both is added system.cpu.switches[] monitoring. These templates contains as well graph "CPU::*::cs vs cores" which shows current cs/s against horizontal line 1000*nun_of_CPU_cores.
If on your system system.cpu.switches (data in metric should be stored as "delta per second") will be reporting more than 12000 you will have explanation why even with low CPU usage your system is lagging under your workload.

Feel free to use those templates or peak how to add monitoring and presentation layer of cs to your template.

One more thing: Linux does not provide global counters of voluntary/involuntary CSs. On Solaris is possible to do this. In my OS Solaris template comment is URL to page where is described how to count both types of cs (so far I had no time to add monitoring of global ICX/VCX).

Problem with saturating involuntary cs is very typical on systems with many heavily working massive multithreaded applications like many java application servers.
On Solaris to check how it is with cs you can use "prstat -m".
prstat is very similar to top and -m shows microstate accounting. In ICX (Involuntary CX) and VCX (Voluntary CX) columns are counters with those metrics and usually quick look on what is those columns is possible to say ... "aha here we have to many ICX "
Example first few lines of prstat -m from system which is working as manin zabbix mysql DB backend:

   PID USERNAME USR SYS TRP TFL DFL LCK SLP LAT VCX ICX SCL SIG PROCESS/NLWP
 14601 mysql    0.9 0.2 0.0 0.0 0.0  39  59 0.0 126   1  1K   0 mysqld/131
   617 root     0.0 0.4 0.0 0.0 0.0 0.0 100 0.0  33   1   0   0 zpool-data/172
  1790 zabbix   0.0 0.2 0.0 0.0 0.0 0.0 100 0.0  40   0 140   0 zabbix_agent/1
 25870 root     0.1 0.1 0.0 0.0 0.0 0.0 100 0.0   8   0 140   0 bash/1
  4951 root     0.0 0.1 0.0 0.0 0.0 0.0 100 0.0   2   0 178   0 sleep/1
  4740 admin    0.0 0.0 0.0 0.0 0.0 0.0 100 0.0   1   0 175   0 prstat/1

As you see in this case mysqld with 131 threads usually is finishing before scheduler is taking off this process from CPUs (126 VCX vs only 1 ICX)

On Linux you can only check lines with nr_voluntary_switches and nr_involuntary_switches in /proc/<pid>/sched which shows per tread per second counters.

PS. Try to read something about voluntary/involuntary context switches. People quite often are struggling with some system performance issues not knowing about impact of saturating physical limits of involuntary cs/s on exact HW. This problem quite "popular" and is affecting as well even harder applications working in different types of VMs as on such systems CS is multiplied by multiple schedulers running separately in each VM.

[kloczek]

Just checked my biggest active proxy which doing something like almost 1.5Knvps over active agents.

# cat /etc/zabbix/zabbix_proxy/{Start*,CacheSize,ProxyOfflineBuffer,DataSenderFrequency}
StartHTTPPollers=5
StartPingers=30
StartPollers=10
StartTrappers=100
CacheSize=128M
ProxyOfflineBuffer=6
DataSenderFrequency=10

On the same system is working server and on failing over this proxy with own local DB backend to another system different resources utilization is only about 5-10% lower (CPU, cs, IOs .. and on the same host we have some number of scripts feeding this proxy over zabbix trapper items and these processes are atm consuming more resources than proxy themselves).
So it may show you how much more effective is using active monitoring vs passive.

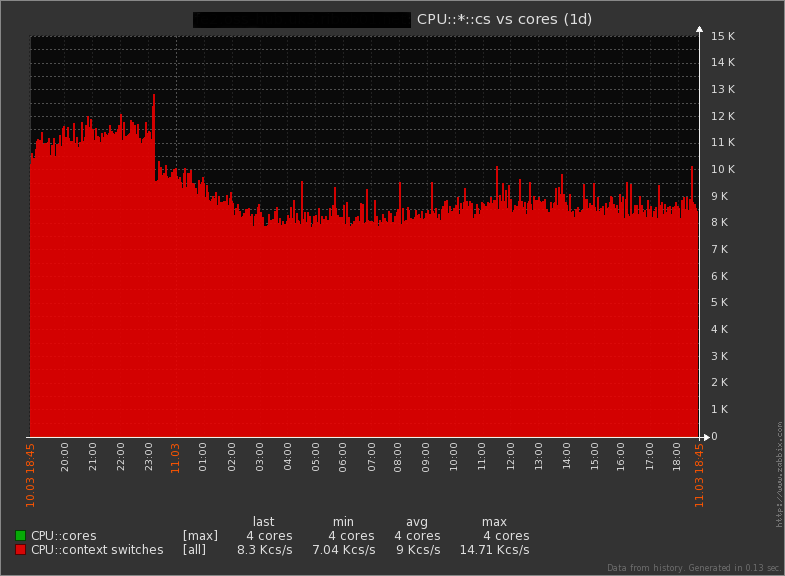

Below is graph with "cs vs cores" on this system (I know that on this system more than 2/3 CSs are voluntary so passing 4k limit is not an issue).

[kloczek]

BTW .. if anyone is interested off-cpu analyze of the system workload just checked that it is now possible to use exactly the same DTrace oneliner if someone is using OL6/OL7. Example:

# cat /etc/redhat-release; echo; dtrace -n 'sched:::off-cpu { self->ts = timestamp; } sched:::on-cpu /self->ts/ { @["ns"] = quantize(timestamp - self->ts); self->ts = 0; } tick-10s {printa(@);}'
Red Hat Enterprise Linux Server release 6.6 (Santiago)

dtrace: description 'sched:::off-cpu ' matched 3 probes
CPU     ID                    FUNCTION:NAME
  1    648                        :tick-10s
  ns
           value  ------------- Distribution ------------- count
              64 |                                         0
             128 |                                         19
             256 |                                         96
             512 |                                         413
            1024 |                                         943
            2048 |@                                        2375
            4096 |@@@                                      6173
            8192 |@@@@@                                    9713
           16384 |@@@@@                                    10373
           32768 |@@@                                      7099
           65536 |@@@                                      5452
          131072 |@@@@@@                                   13620
          262144 |@@@@@                                    10787
          524288 |@@                                       4614
         1048576 |@                                        2766
         2097152 |@                                        3141
         4194304 |@                                        1378
         8388608 |@                                        1602
        16777216 |@                                        1255
        33554432 |                                         617
        67108864 |                                         915
       134217728 |                                         214
       268435456 |                                         162
       536870912 |@                                        1379
      1073741824 |                                         467
      2147483648 |                                         14
      4294967296 |                                         19
      8589934592 |                                         0
     17179869184 |                                         0
     34359738368 |                                         0
     68719476736 |                                         0
    137438953472 |                                         0
    274877906944 |                                         0
    549755813888 |                                         0
   1099511627776 |                                         0
   2199023255552 |                                         0
   4398046511104 |                                         0
   8796093022208 |                                         0
  17592186044416 |                                         0
  35184372088832 |                                         0
  70368744177664 |                                         0
 140737488355328 |                                         0
 281474976710656 |                                         0
 562949953421312 |                                         0
1125899906842624 |                                         0
2251799813685248 |                                         0
4503599627370496 |                                         0
9007199254740992 |                                         0
18014398509481984 |                                         0
36028797018963968 |                                         117
72057594037927936 |                                         0


^C

If anyone is interest more details about such such analyze please read Breandan Greg brilliant article about this from http://www.brendangregg.com/offcpuanalysis.html

[fiddletwix]

Looks like you are still using passive monitoring.


As long as you will not change all "zabbix agent" to "zabbix agent (active)" items and will not start using active agents setup proxy will be consuming more and more context switches because with co many pollers threads you are saturating probably now num_of_CPUs*1000 cs/s involuntary context switches per second.
I can bet that now it is you only problem/bottleneck

Sadly, the number of pollers is a red herring. I am using active monitoring now. That 600 was a left over when I was doing passive checks. My agent configs typically look like this


PidFile=/var/run/zabbix/zabbix_agentd.pid
LogFile=/var/log/zabbix/zabbix_agentd.log
LogFileSize=0
Server=proxy01,zabbix-server
ListenPort=30050
StartAgents=50
ServerActive=proxy01:30051
Hostname=myhostname
HostMetadata=linux
Include=/etc/zabbix/zabbix_agentd.d/

In your base OS template you should have always monitoring of system.cpu.switches[]

In attachment you can find my "OS Linux" and "OS Solaris" templates and both is added system.cpu.switches[] monitoring. These templates contains as well graph "CPU::*::cs vs cores" which shows current cs/s against horizontal line 1000*nun_of_CPU_cores.
If on your system system.cpu.switches (data in metric should be stored as "delta per second") will be reporting more than 12000 you will have explanation why even with low CPU usage your system is lagging under your workload.

Feel free to use those templates or peak how to add monitoring and presentation layer of cs to your template.


One more thing: Linux does not provide global counters of voluntary/involuntary CSs. On Solaris is possible to do this. In my OS Solaris template comment is URL to page where is described how to count both types of cs (so far I had no time to add monitoring of global ICX/VCX).

Problem with saturating involuntary cs is very typical on systems with many heavily working massive multithreaded applications like many java application servers.
On Solaris to check how it is with cs you can use "prstat -m".
prstat is very similar to top and -m shows microstate accounting. In ICX (Involuntary CX) and VCX (Voluntary CX) columns are counters with those metrics and usually quick look on what is those columns is possible to say ... "aha here we have to many ICX "
Example first few lines of prstat -m from system which is working as manin zabbix mysql DB backend:

   PID USERNAME USR SYS TRP TFL DFL LCK SLP LAT VCX ICX SCL SIG PROCESS/NLWP
 14601 mysql    0.9 0.2 0.0 0.0 0.0  39  59 0.0 126   1  1K   0 mysqld/131
   617 root     0.0 0.4 0.0 0.0 0.0 0.0 100 0.0  33   1   0   0 zpool-data/172
  1790 zabbix   0.0 0.2 0.0 0.0 0.0 0.0 100 0.0  40   0 140   0 zabbix_agent/1
 25870 root     0.1 0.1 0.0 0.0 0.0 0.0 100 0.0   8   0 140   0 bash/1
  4951 root     0.0 0.1 0.0 0.0 0.0 0.0 100 0.0   2   0 178   0 sleep/1
  4740 admin    0.0 0.0 0.0 0.0 0.0 0.0 100 0.0   1   0 175   0 prstat/1

As you see in this case mysqld with 131 threads usually is finishing before scheduler is taking off this process from CPUs (126 VCX vs only 1 ICX)

On Linux you can only check lines with nr_voluntary_switches and nr_involuntary_switches in /proc/<pid>/sched which shows per tread per second counters.

PS. Try to read something about voluntary/involuntary context switches. People quite often are struggling with some system performance issues not knowing about impact of saturating physical limits of involuntary cs/s on exact HW. This problem quite "popular" and is affecting as well even harder applications working in different types of VMs as on such systems CS is multiplied by multiple schedulers running separately in each VM.

Thanks, definitely like having csw metrics. I'll be adding these. That said, I just looked at CS using dstat and I'm seeing 4-6k on average.

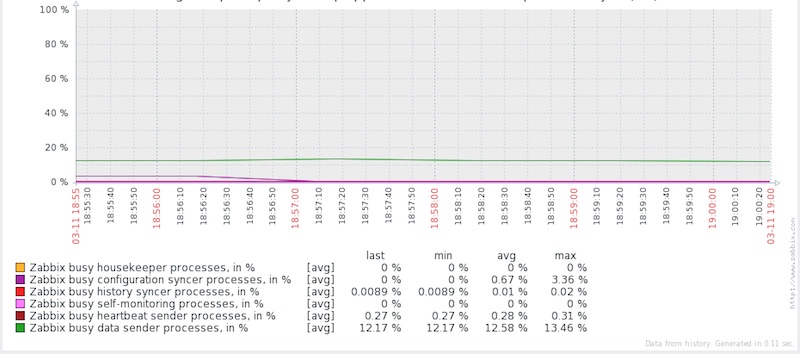

And internal processes are nearly idle except for data sender(attaching graph of that)

That said, I still don't understand the role of proxy_history table. Is it that buffered data that needs to be transferred over to the zabbix server? What is updating and deleting from that table?

[kloczek]

That said, I still don't understand the role of proxy_history table. Is it that buffered data that needs to be transferred over to the zabbix server? What is updating and deleting from that table?

This is just circular buffer of monitoring data received from agents which when will be delivered to the server will go to history* tables. Because proxy is not processing those data all these data are stored as longtext in proxy_history table. So in the same table are stored all float, uint, str, text and log metrics data.
Proxy housekeeper by default running every hour (HousekeepingFrequency=1) and is removing all data from this table older than ProxyOfflineBuffer hours.
This table does not need to be optimized because after couple of days its size stabilizes as vnps is ~const. For example on my proxy size of the file with proxy_history table has about 2.5GB.
If you will give more than 2-3GB innodb pool for proxy DB you should have completely cached this table in memory (for all read IOs .. and on IO graph you should see only write IOs).

[fiddletwix]

This is just circular buffer of monitoring data received from agents which when will be delivered to the server will go to history* tables. Because proxy is not processing those data all these data are stored as longtext in proxy_history table. So in the same table are stored all float, uint, str, text and log metrics data.
Proxy housekeeper by default running every hour (HousekeepingFrequency=1) and is removing all data from this table older than ProxyOfflineBuffer hours.
This table does not need to be optimized because after couple of days its size stabilizes as vnps is ~const. For example on my proxy size of the file with proxy_history table has about 2.5GB.
If you will give more than 2-3GB innodb pool for proxy DB you should have completely cached this table in memory (for all read IOs .. and on IO graph you should see only write IOs).

Excellent! that makes a lot of sense. And right now my innodb buffer is 32G so I should be good.
