Hello guys,

I love Zabbix but I'm facing problems, specially with Fortigate's SNMP template.
So, I would like to learn how to create template or how to use vendor's MIBS files.

What do you suggest to me?

TNX

[jtnfoley]

mib2zabbix to create a template from MIBs. There's a learning curve but it works... it will create a LOT of unneeded data items that you'll have to delete from your template.
I have much Fortinet hardware and varying success with different community templates. My best success has been with "Template Net Fortinet FortiGate SNMP" - From its' Description data:


Zabbix Template for Fortinet FortiGate
URL: https://github.com/mbdraks/fortinet-zabbix
Author: Michel Barbosa
Version: 2.1.0

Exposes information obtained from the following MIBs (import is not required):
- SNMPv2-MIB
- IF-MIB
- EtherLike-MIB
- FORTINET-CORE-MIB
- FORTINET-FORTIGATE-MIB

This template also incorporates the exact same data collected by the following default templates (no import or link required):
- Generic SNMP
- Interfaces SNMP
- EtherLike-MIB SNMP

[andreagx]

Hello,
Thank you for your reply

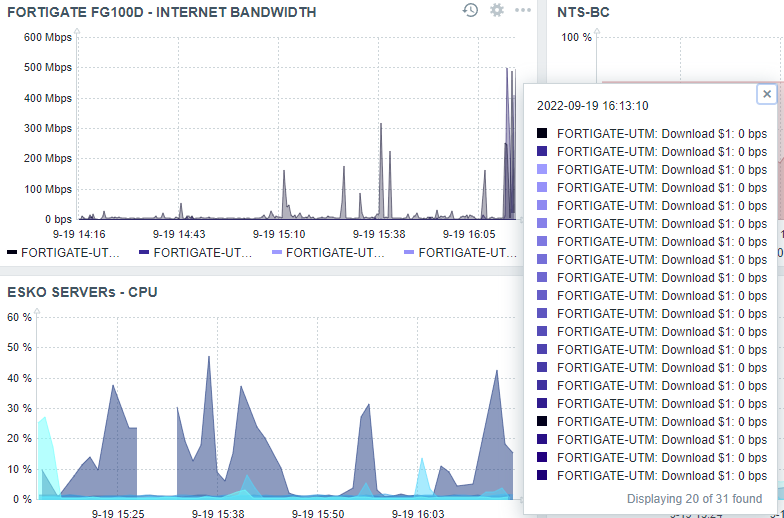

I'm using that template. The issue is in the photos.
The WAN bandwith is a Gigabit ethernet but Zabbix shows max 500Mbit. There are too many $1 and is not clear what is what.

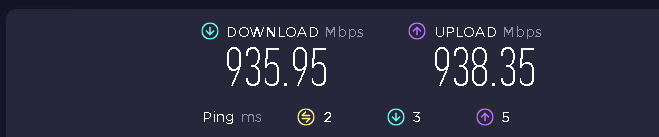

If I do a speed test from a client, it's shows 900/900 Mbit, but Zabbix shows always 500Mbit as a max value.

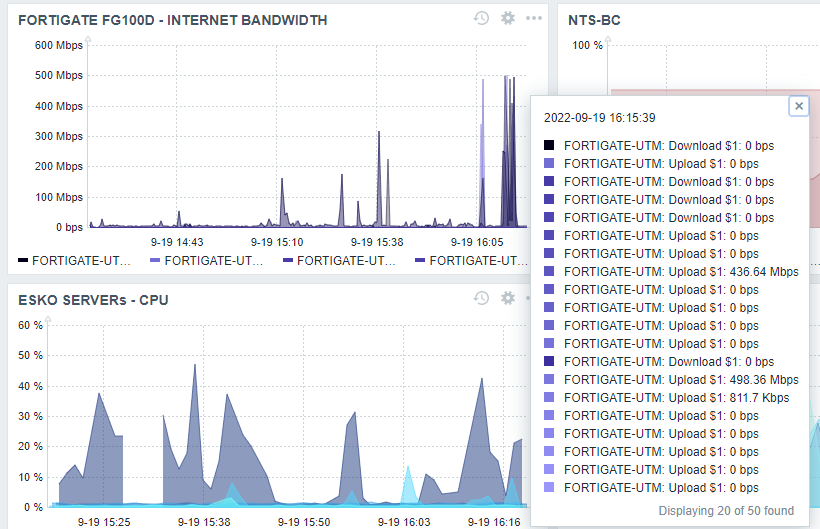

In photo Capture3, why the upload is divided on two or more value? The graph do not show the sum.
