in need of help for my first Zabbix trigger :(

[chavv]

Hi, I am trying to make a trigger for IIS port.
I want it to be checked from the agent running on the same machine.
IIS is listening on ports (say), 7028 (http) and 8443 (https)
After applying App IIS template I get a trigger checking for port 80(disabled on machine) - but no matter what I try i can't make it check for other port(s)

original trigger is called: Template App IIS by Zabbix agent: IIS: Port {$IIS.PORT} is down
expression is: "net.tcp.service[{$IIS.SERVICE},,{$IIS.PORT}]"

I tried changing the defined value of $iis.port (by changing value of the macro), - no success
tried writing 7028 instead of $iis.port eg
"net.tcp.service[{$IIS.SERVICE},,7028]"
result:

Cannot add trigger

• Incorrect item key "net.tcp.service[{$IIS.SERVICE},,7028]" provided for trigger expression on "MyHost".

I simply want to check 2 other ports instead of 80. Surely its very simple
Thanks

[Bartosz Mickiewicz]

Hi,

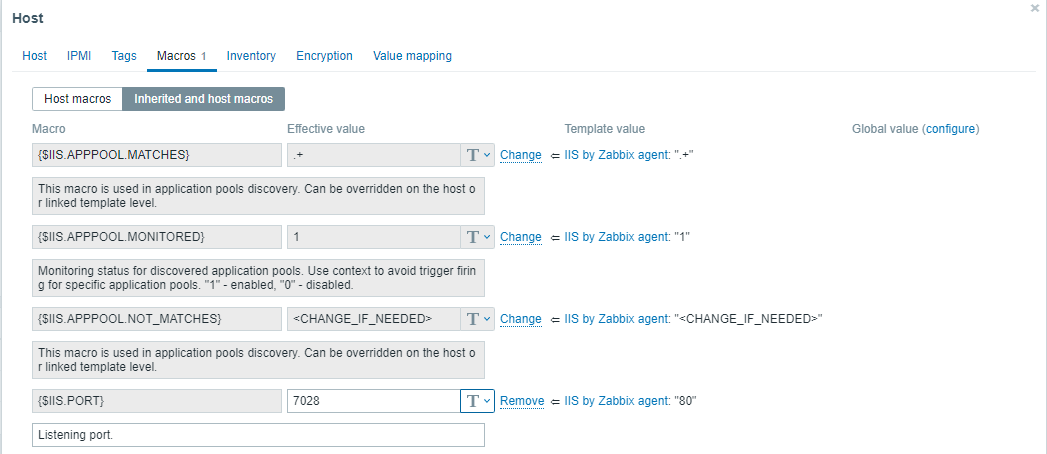

I've managed to simply change the value of IIS.PORT as on the screenshot and it works. Please go to Configuration -> Hosts.

If you would like to monitor two services, I suggest adding a second set of macros, let's say named {$IIS.SERVICE2} and {$IIS.PORT2}, one item and one trigger.

Clone item "IIS by Zabbix agent: IIS: {$IIS.PORT} port ping" and change the key to the proper macros.

Then clone trigger "IIS by Zabbix agent: IIS: Port {$IIS.PORT} is down" and change the expression.

Works in Zabbix 6.0.

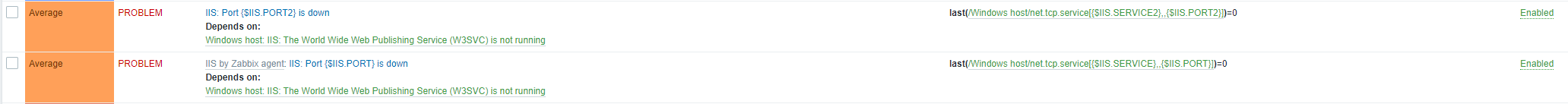

This is how generated alarms will look like.

[chavv]

Thank you very much for detailed explanation! I was completlely missing the part where first must make "item", then clone trigger!
I was able to make checks using

{MyHost:net.tcp.listen[7028].last()}=0

but all my attempts to use the tcp.service end giving "down" state, eg:
"net.tcp.service[{$IIS.SERVICE},,$IIS.PORT]" , even when trying to use [http,,80] or any combination of $IIS.SERVICE , $IIS.PORT and number. But it could be that something was messed up, before asking here

as this is still a "test" setup /test zabbix server and test machines/ , I will start from scratch and think should be ok now - after getting some basics... and probably going to read bit more of documentation before jumping into the fire

Thanks a lot
