    Services and SLAs, mostly ping - easier way to configure?

    Running Zabbix 6.0.10 and trying to get Services and SLAs working for a system with 36 hosts, hosts are mainly simple ping check, with 8 hosts using SNMP across a mix of windows and linux servers and network switches. A similar network will be built at a new location.

    I've managed to get some aspect of SLAs working, however I have had to manually add a child for every host which is tedious, even more so when I had to manually add tags to each host.

    Have added some images of how I have configured it so far.

    However with SNMP servers, if a disk utilization gets high it counts as an outage so I need to find a way to only use ping for the SNMP servers.

    Have a feeling there is a simpler way to get the SLA % for the complete system and SLA % for each host.

    A bit out of my depth here and happy for any help.​



    Click image for larger version

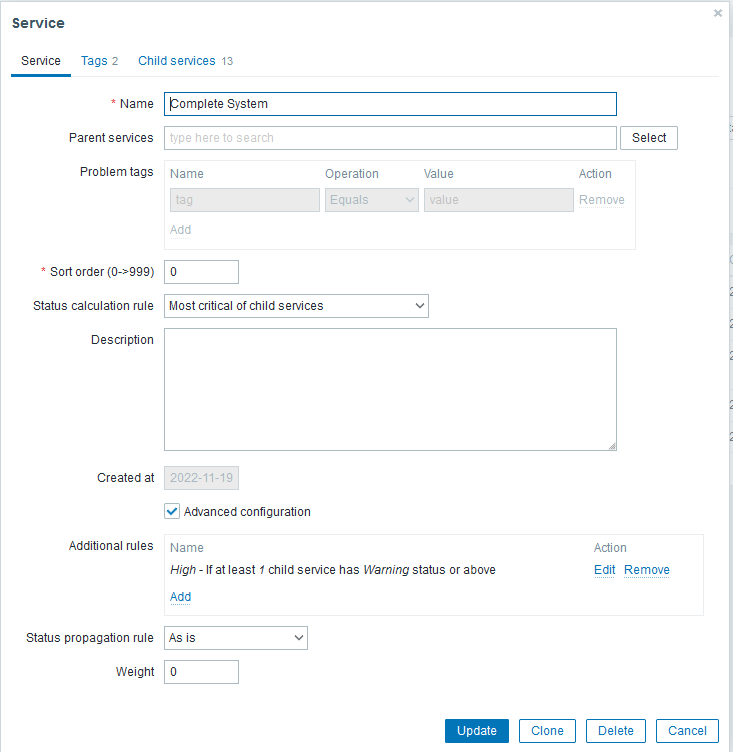

Name:	parent service.png
Views:	1072
Size:	30.8 KB
ID:	454614
    Click image for larger version

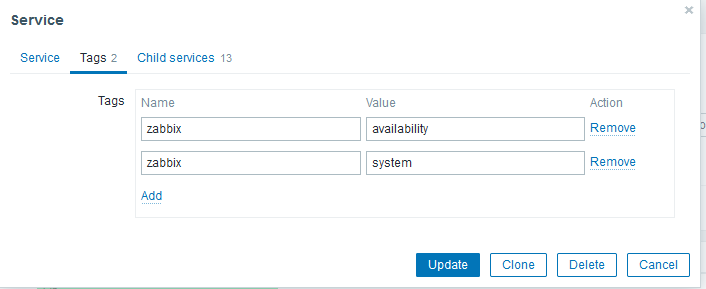

Name:	parent service - tags.png
Views:	1057
Size:	11.4 KB
ID:	454612
    Click image for larger version

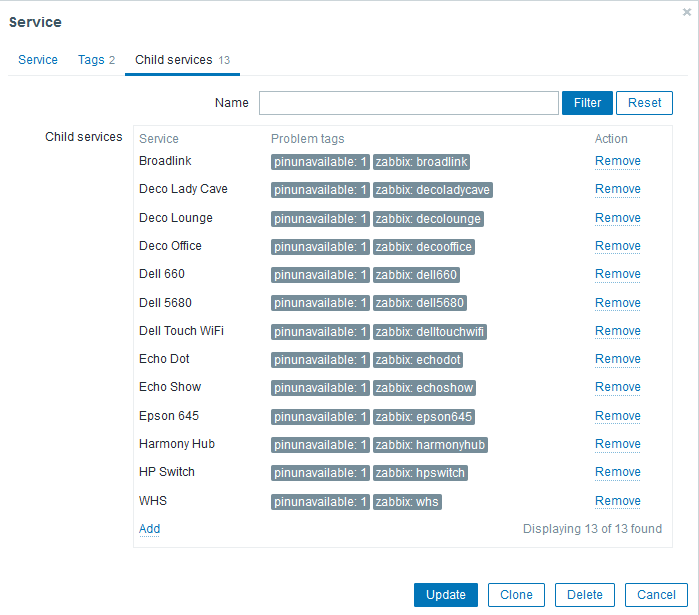

Name:	parent service  - child services.png
Views:	1043
Size:	47.7 KB
ID:	454615
    Click image for larger version

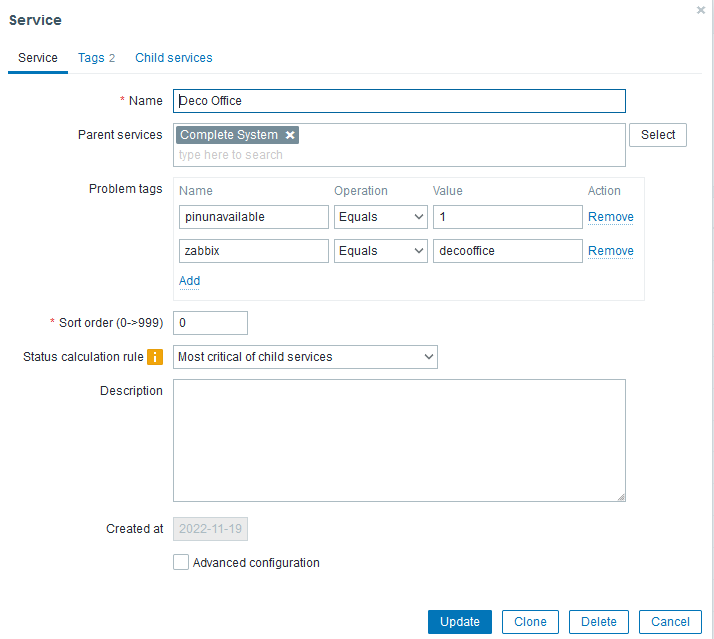

Name:	child service as simple check via ping only.png
Views:	1047
Size:	24.8 KB
ID:	454613
    Click image for larger version

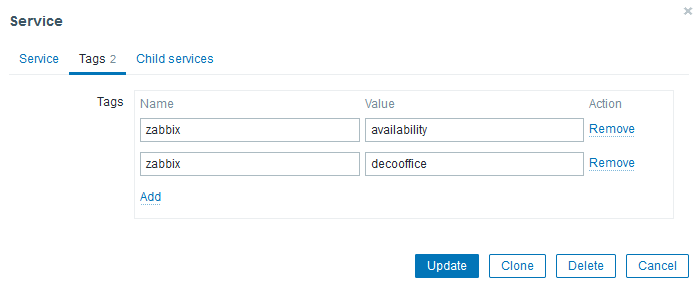

Name:	child service as simple check via ping only - tags.png
Views:	1118
Size:	10.4 KB
ID:	454611
