    Problem: Latest data shows nothing - but testing an item yields a value

    We are monitoring our securepoint firewall.
    Currently we are implementing items using item discovery prototyping. The OID used is IF-MIB::ifPhysAddress.{#SNMPINDEX}, where {#SNMPINDEX} is the index of the network interface discovered.

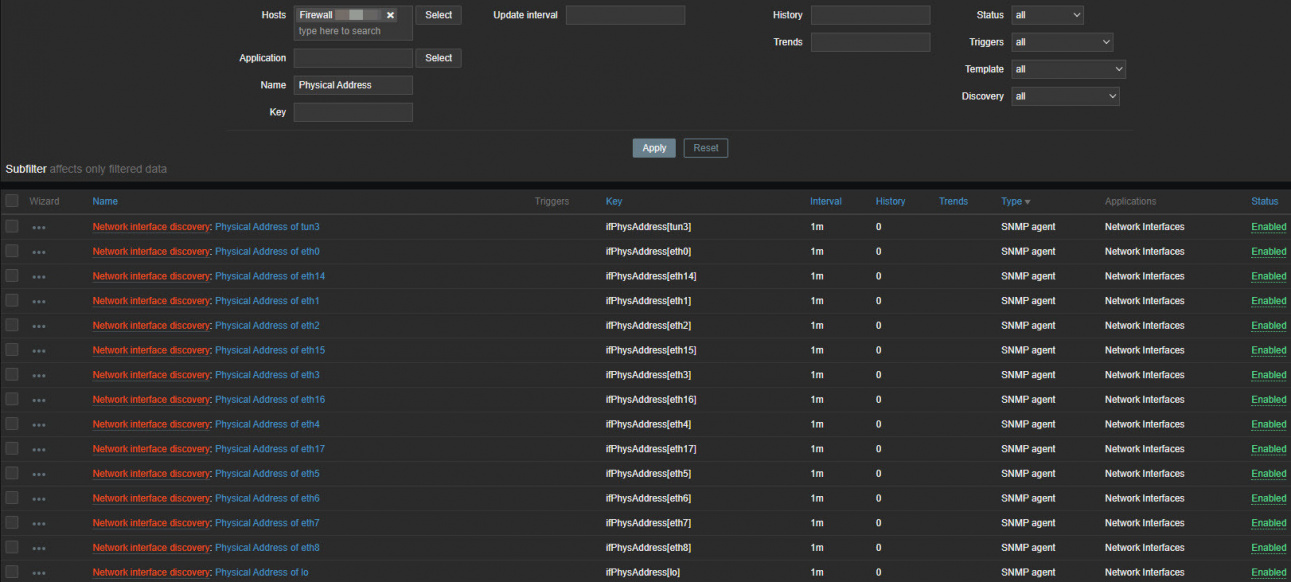

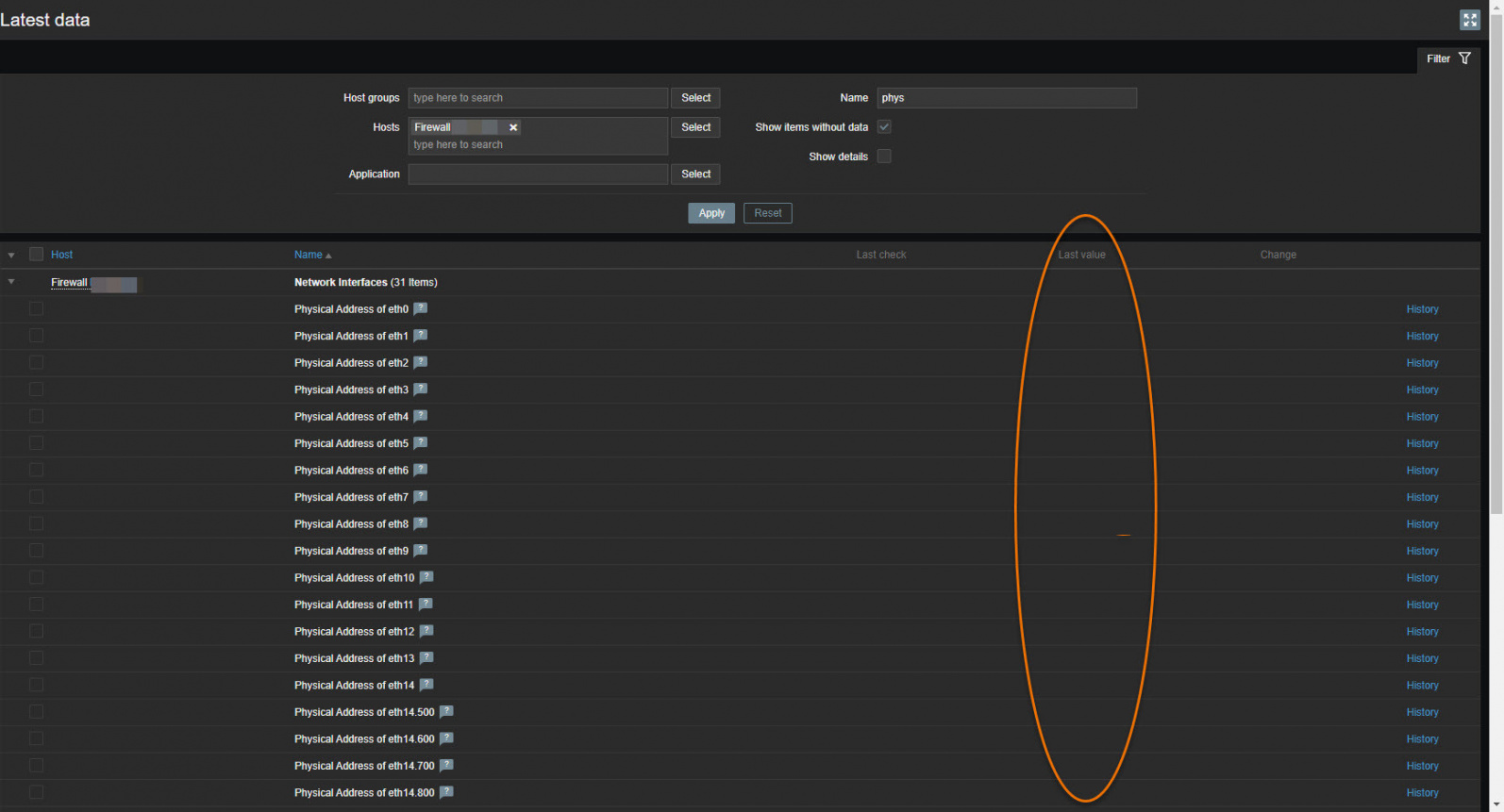

    As you can see on the screenshots the item seems to be configured correctly. Even the test yields a physical octet string, but a look at the latest data from this host (the firewall) yields nothing.
    Other values for several OIDs are listed under latest data, but not this one.

    Can anyone find an error or tell me what i should change?



    Click image for larger version  Name:	oid-success1.jpg Views:	8 Size:	142.4 KB ID:	455356 Click image for larger version  Name:	oid-config-actice.jpg Views:	8 Size:	263.6 KB ID:	455357 Click image for larger version  Name:	latest-data-fail.jpg Views:	8 Size:	271.3 KB ID:	455358
    Last edited by Thariama; 02-12-2022, 12:53.
  • Thariama
    Junior Member
    • Nov 2022
    • 7

    #2
    I found the solution myself.
    The storage period for this value was not set.
    It seems latest data needs a storage period in order to have values to be shown.
    I get the desired values now.

    Please take a look at my other question "Recommended trigger values for surveillance of network interfaces" here​: https://www.zabbix.com/forum/zabbix-...ork-interfaces

    Comment

    • cyber
      Senior Member
      Zabbix Certified SpecialistZabbix Certified Professional
      • Dec 2006
      • 4807

      #3
      Originally posted by Thariama
      It seems latest data needs a storage period in order to have values to be shown.
      Wouldn't this be obvious.. no storage, no data?
