    Multiple host combined trigger / action

    Hello.

    I'm trying to launch a action to shutdown to my hosts when 2 of my UPS get under 15min remaining battery.

    I'm able to do this if I only use one host (ups) at the action. No way to do it work using two hosts (the two required ups).

    Any idea?

    Thanks in advance.

    #2
    Add dummy host (with interface on localhost/127.0.0.1) and using UPS snmp monitoring data create trigger evaluating data from multiple sources.
    With this go to Configuration -> Actions switch to trigger and add in condition your "trigger name" and "trigger value".
    In Operations tab switch "Execute on:" to "zabbix server", add remote command which will cause shutdown of your host(s).
    Your command will be executed on server or proxy (if your dummy host is monitored over proxy).

    If you have more like this group of hosts you should create template and use it on multiple dummy hosts.
    It shuld be possible to use set of macros in such template pointing to macroed UPSes and to use macroed hostnames which should be shuted down.
    "Trigger name" of course in this case must be unique to not fire your actions in other conditions :P
    Last edited by kloczek; 13-04-2016, 12:46.
    http://uk.linkedin.com/pub/tomasz-k%...zko/6/940/430/
    https://kloczek.wordpress.com/
    zapish - Zabbix API SHell binding https://github.com/kloczek/zapish
    My zabbix templates https://github.com/kloczek/zabbix-templates

    Comment


      #3
      Thank you kloczek

      Could you please tell me how to create trigger evaluating data from multiple sources? I've never done that before.

      Thanks in advance.
      Last edited by amanogue; 13-04-2016, 13:01.

      Comment


        #4
        Originally posted by amanogue View Post
        Thank you kloczek

        Could you please tell me how to create trigger evaluating data from multiple sources? I've never done that before.
        Go to you host/template triggers -> "create trigger" -> on right side of the "Expression" editor area you have small "Add" rectangle with kind of simple wizard helping entering complicated expression. On choose "Item" you can point to exact hots/template -> items.
        When you will finish this wizard in Expression edit are will be exact trigger expression which you can modify on defining more such triggers.
        http://uk.linkedin.com/pub/tomasz-k%...zko/6/940/430/
        https://kloczek.wordpress.com/
        zapish - Zabbix API SHell binding https://github.com/kloczek/zapish
        My zabbix templates https://github.com/kloczek/zabbix-templates

        Comment


          #5

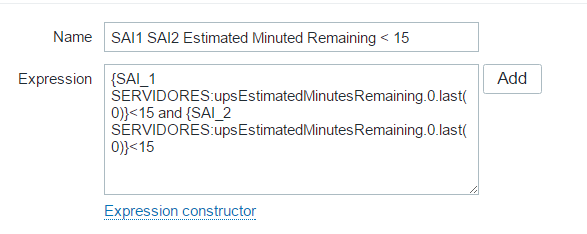

          I`m trying with this trigger. Is this what you mean?

          TIA.
          Attached Files

          Comment


            #6
            Yep .. something like this.
            http://uk.linkedin.com/pub/tomasz-k%...zko/6/940/430/
            https://kloczek.wordpress.com/
            zapish - Zabbix API SHell binding https://github.com/kloczek/zapish
            My zabbix templates https://github.com/kloczek/zabbix-templates

            Comment


              #7
