    Zabbix and SAML Authentication using ADFS 4.0 on-Prem

    Hi,

    I have some questions about configuration and behaviour regarding Zabbix and SAML autentication. I use Zabbix 6.0 and ADFS 4.0 in my environment.

    I have followed the instructions in the Zabbix documentation.

    Zabbix config:

    Click image for larger version

Name:	image.png
Views:	729
Size:	145.3 KB
ID:	459571

    ADFS Config RP:

    Click image for larger version

Name:	image.png
Views:	720
Size:	174.7 KB
ID:	459572

    ADFS Config Claims:

    Click image for larger version

Name:	image.png
Views:	741
Size:	13.0 KB
ID:	459573​​​


    I can access Zabbix frontend using the link "Sign in with Single Sign-On". I will then be redirected to ADFS where I am prompted for UPN and Password. Then I get access to Zabbix

    Click image for larger version

Name:	image.png
Views:	789
Size:	57.5 KB
ID:	459570

    The first question is If this is the behaviour to expect or is it possible to have SSO in form of WIA? Is there any configuration missing the get the full SSO behviour if this is possible?

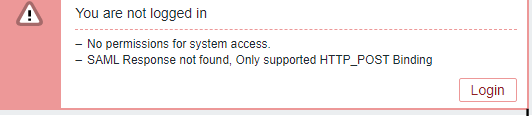

    The second question is if It should be possible to access Zabbix using the Endpoint URL = https://zabbix.domain.org/zabbix/index_sso.php?=acs. Becaus when I use that URL I get the following message from Zabbix

    Click image for larger version

Name:	image.png
Views:	721
Size:	8.4 KB
ID:	459574

    Regards
    Kris
