    Discovered interfaces - widget

    Dear all,
    I ask for your precious help because I still don't understand how the discover process works.


    I have some routers to monitor.
    All of them have 2 network interfaces.
    I would like to do a simple ping of both.

    This is the host configuration
    Click image for larger version  Name:	dataurl808763.png Views:	0 Size:	36.1 KB ID:	460527

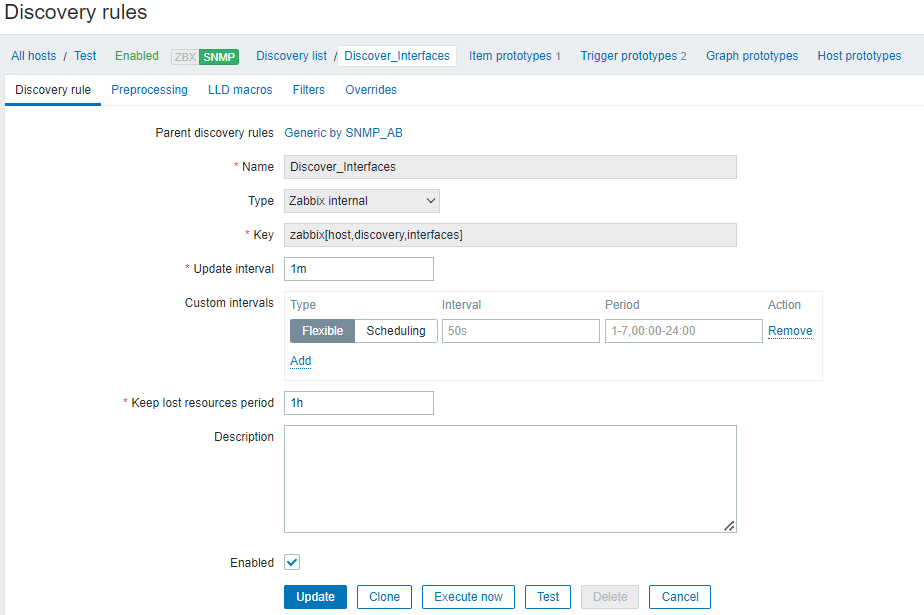

    I've configured this discovery rule
    Click image for larger version  Name:	dataurl808764.png Views:	0 Size:	38.7 KB ID:	460528 ​​

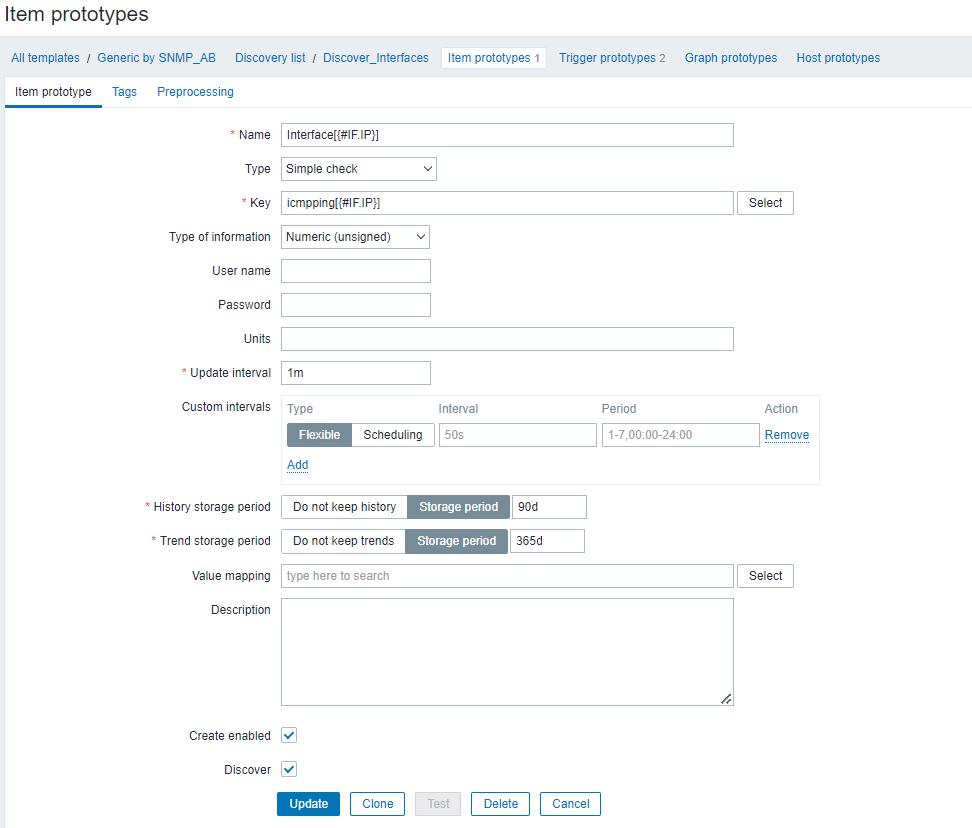

    and this Item protoype
    Click image for larger version  Name:	dataurl808766.png Views:	0 Size:	48.0 KB ID:	460529

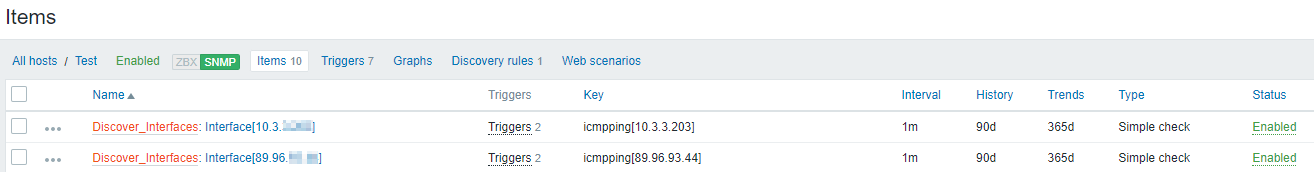

    Results are:

    Click image for larger version

Name:	image.png
Views:	102
Size:	23.1 KB
ID:	460536


    I would like to add in the dashboard a widget that contains the hostname and ping status on the discovered interfaces.
    For example
    Host1 - Ping Interface1 - Ping Interface2
    Host2 - Ping Interface1 - Ping Interface2
    HostX - Ping Interface1 - Ping Interface2

    -How do I refer to discovered interfaces?

    -Which is the syntax?
    Could someone help me please?

    The official documentation didn't help me and I didn't find any concrete examples.
    Thank you and good day
    Last edited by TheBonaZabbix; 06-03-2023, 14:29.
  • TheBonaZabbix
    Member
    • Feb 2023
    • 67

    #2
    Does anyone kindly have the answer to my question?
    I've been trying for a few days but I can't get this graph.
    I suspect it's not possible.

    Thank you​
