No show disk space usage

[alb73]

i am using zabbix server 6.2 and zabbix agent 6.0 on servers.

For all Linux servers I use the "Linux by Zabbix agent" template

The problem is that for some servers the chart on free disk space is not displayed. That is, there is no such indicator.

I saw that the problem is for Centos, here are several versions of different servers without such a metric

CentOS Linux release 7.7.1908 (Core)
CentOS Linux release 7.6.1810 (Core)
CentOS Linux release 7.2.1511 (Core)
CentOS Linux release 7.9.2009 (Core)

In total, I have such servers without this metric 62 out of 250

How can this be fixed?

[cyber]

Based on https://www.zabbix.com/integrations/linux
There is no "free space" item at all...

Filesystems	{#FSNAME}: Used space	Used storage expressed in Bytes	ZABBIX_PASSIVE	vfs.fs.size[{#FSNAME},used]
Filesystems	{#FSNAME}: Total space	The total space expressed in Bytes.	ZABBIX_PASSIVE	vfs.fs.size[{#FSNAME},total]
Filesystems	{#FSNAME}: Space utilization	The space utilization expressed in % for {#FSNAME}.	ZABBIX_PASSIVE	vfs.fs.size[{#FSNAME},pused]
Filesystems	{#FSNAME}: Free inodes in %	-	ZABBIX_PASSIVE	vfs.fs.inode[{#FSNAME},pfree]

Can you please share the item config, what you have there, what seems to be missing on some hosts...

[alb73]

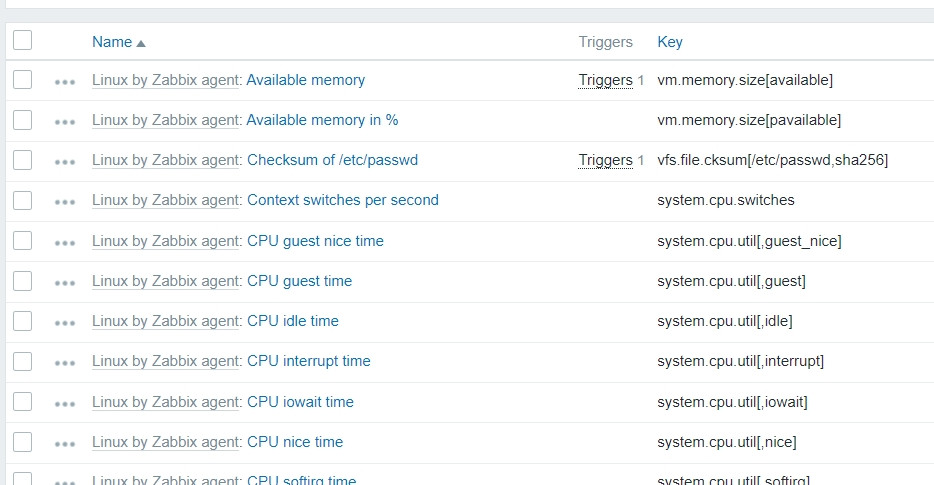

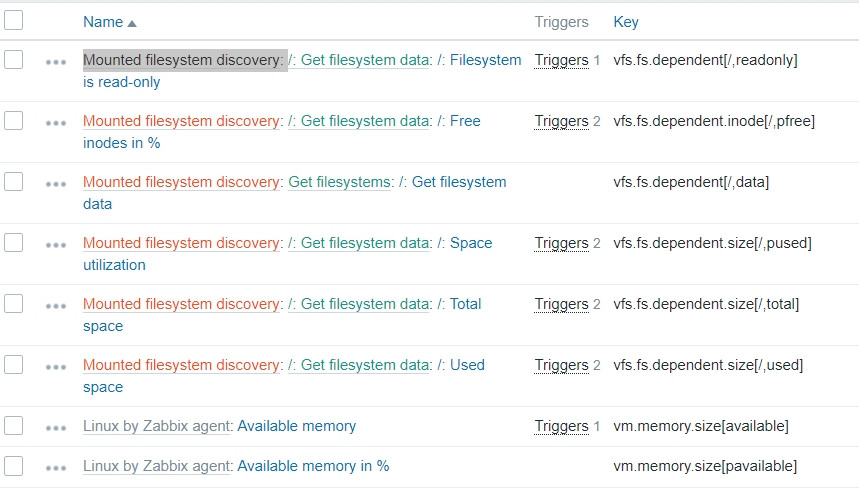

My problem: I don't see Item: "filesystem" for this servers.

On list items missing "Mounted filesystem discovery"

Discovery rules "Linux by Zabbix agent: Get filesystems: Mounted filesystem discovery" is listed on both servers.

and status "Enable". Rule is standard.

"Regular expressions" - File systems for discovery - standard - ^(btrfs|ext2|ext3|ext4|reiser|xfs|ffs|ufs|jfs|jfs2 |vxfs|hfs|apfs|refs|ntfs|fat32|zfs)$

server without "filesystem" in zabbix:
df -Th
Filesystem Type Size Used Avail Use% Mounted on
/dev/vda1 ext4 99G 92G 1.6G 99% /
tmpfs tmpfs 246M 0 246M 0% /dev/shm

severt with "filesystem" in zabbix:
devtmpfs devtmpfs 5.8G 0 5.8G 0% /dev
tmpfs tmpfs 5.8G 0 5.8G 0% /dev/shm
/dev/vda1 ext4 178G 161G 7.6G 96% /
tmpfs tmpfs 1.2G 0 1.2G 0% /run/user/0

what could be the problem? Help me please

[Rolz]

hey alb73 did you ever work this out? I'm having the same thing with 7.0 LTS

I've added 2 Linux hosts and 1 Windows box to be monitored via SNMP, on the Windows machine I see the disks and their capacity being monitored, but in the Linux area this "FS [{#FSNAME}]: Space utilization chart (relative to total)" us just blank.

Disk monitoring via SNMP is working as I can see them in my PRTG instance. Any pointers? I've tried "Generic by SNMP" and "Linux by SNMP" templates and no joy.

[t00m1G]

alb73
Hey,
can you check what you're getting after running this on your zabbix server instance?
zabbix_get -s (IP-or-Hostname-of-problematic-host) -p (port-number) -k "vfs.fs.get"
in that way you can check if your Zabbix is able to read details of filesystems on that host.

more about zabbix_get: https://www.zabbix.com/documentation...l/concepts/get

[Rolz]

found my solution I had to add the following lines into my snmpd.conf file

# Specifically monitor the root directory
disk /
disk /mnt/usb

then they would be seen in zabbix... strange why I didn't have to have them in PRTG for it to work.
