Widget Graph (classic) 6.4.0

[Enmanuel Leonis]

Hello,

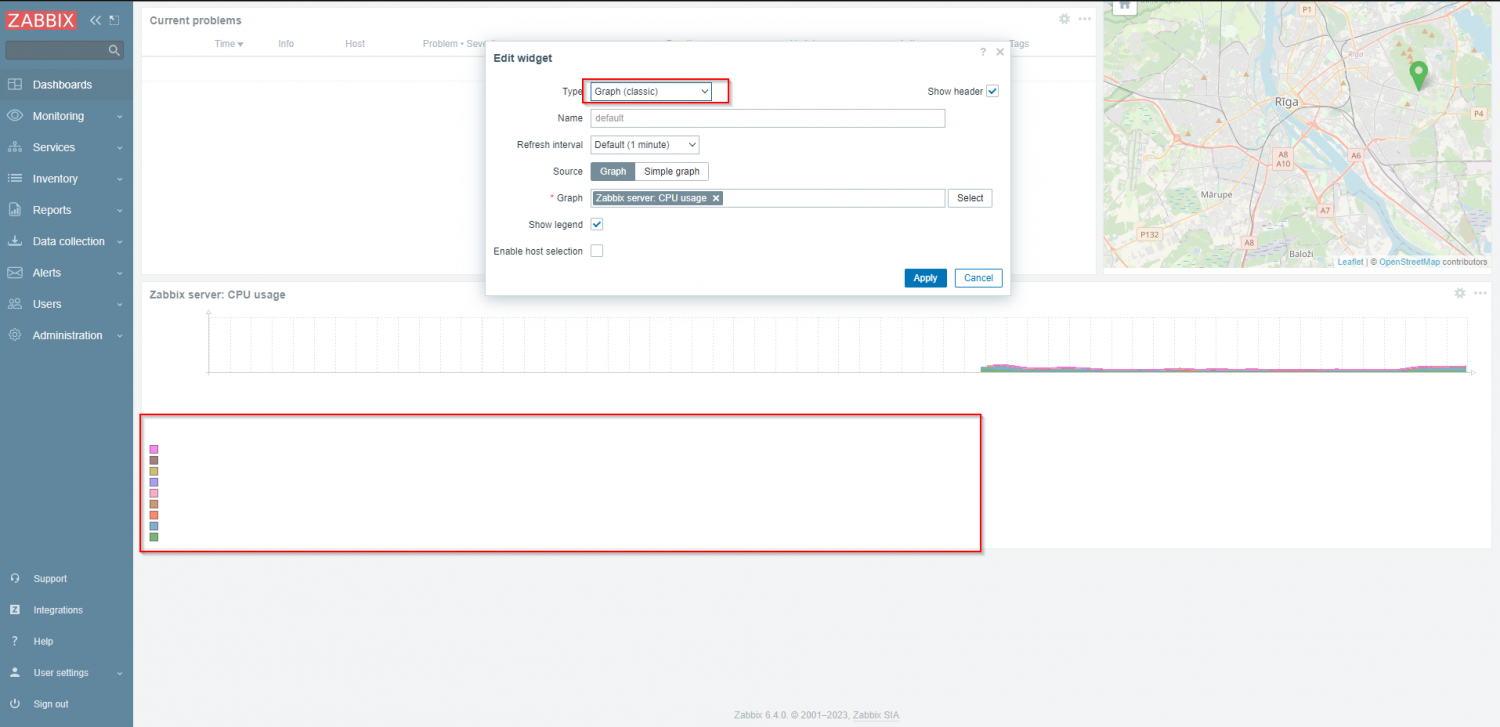

In zabbix server 6.4 implementation the "classic" graphs do not work correctly, the graph legend does not appear (only happens with this graph).

OS: CentOS Stream 9
Mysql: 8.0.30
Zabbix Server: 6.4.0

Clean installation, without data only from the zabbix server itself,

is there anything to configure?



Thanks

[cyber]

I just saw a similar topic somewhere today... Rocky linux and no legend for graph or something... Solution was relinking fonts to correct place.. Cannot find that topic now unfortunately..

[cyber]

I just saw a similar topic somewhere today... Rocky linux and no legend for graph or something... Solution was relinking fonts to correct place.. Cannot find that topic now unfortunately..

[Enmanuel Leonis]

Thanks for your answer cyber you have helped me to find the error,

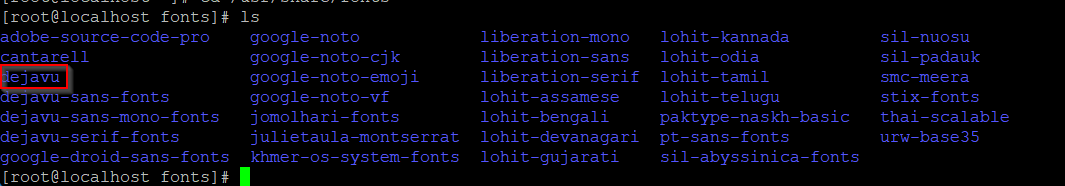

In my case the error was that in the directory >/usr/share/fonts was not the folder "dejavu" which is what the graphic refers to the source, I copied it from an old installation and now I see the data correctly.



all this is configured here



After that, the graph looks good.




Thank you very much
