Error "Invalid parameter "/143/valuemapid": value must be 0." on template import

[Argon0]

I've created a template using the SNMP2ZABBIX script using a ZD410. Importing keeps failing.... I've tried editing the XML, but changing the <VALUEMAP> <NAME> field does nothing. Telling Zabbix NOT to import values errors with something different.

Is there any documenation/reference for the error codes? I can't find Valuemapid in the import, but did find info on the VALUE MAP 'command'/Value. I can't see any difference between the file I'm importing and any of the existing files in this respect...:

<value_type>FLOAT</value_type>
<valuemap>
<name>​something</name>
</valuemap>

I've just had a thought could it be the FLOAT value causing the issue as the documentation here:

https://www.zabbix.com/documentation/4.2/en/manual/xml_export_import/templates

talks ab out these numerical values :

integer

0 - float 1 - character 2 - log 3 - unsigned integer 4 - text

Template is attached here - had to zip it up...

I've tried doing the same from SNMPWALK2ZABBIX, but had to edit the script for that (slight error on line 174 looking, I think, to split the MIB name at :: but was failing as there was only 1 instance of that in each/any of the name (code was

 name = mib.split("::")[1]

I changed it to

 name = mib.split("::")[0]

Whcih at least completed and created a template file.

[Argon0]

It's not the FLOAT thing. Changing that to 0, or other numbers (for the CHAR, TEXT, etc...Value Types) gets different errors, which are more readable (for me at least), and I worked out NOT to do that... Despite the documentation saying it's expecitng numbers...

The SNMPWALK2ZABBIX template also won't import but gets a different message (related to host.. But sorted that out by finding the instance of "ZD410" in the name fiels, and replacing with ZD410.

Finally got that imported, but it's not so useful as it doesn't have the names of the OIDs just the 0.1.3. etc.. names...

So I'd really like to get the MIB created Template working as it has sensible names...

[Argon0]

Anybody?

I've enabled debugging but its not helping me!! I get this now:

Invalid parameter "/143/valuemapid": value must be 0. [zabbix.php:22 → require_once() → ZBase->run() → ZBase->processRequest() → CController->run() → CControllerPopupImport->doAction() → CApiWrapper->__call() → CFrontendApiWrapper->callMethod() → CApiWrapper->callMethod() → CFrontendApiWrapper->callClientMethod() → CLocalApiClient->callMethod() → CConfiguration->import() → CConfigurationImport->import() → CConfigurationImport->processDiscoveryRules() → CConfigurationImport->createItemsWithDependency() → CItemPrototype->create() → CItemPrototype::validateCreate() → CApiService::exception() in include/classes/api/services/CItemPrototype.php:434]

I can't define valuemapid anywhere in the template, that I can find, everytime I try putting it in I get an error that the key is invalid, no matter what section I put it in... Is this something expected in old XMLs? (the template referes to Zabbix 4.4).

[Argon0]

After checking the CItemPrototype.php file line 434 I could see what was throwing the error, it is doing a check of parameters sent through to the Create Item prototype routine, and erroring on the 143rs item_prototype.

SO, I commented this out and the no. at the start of the line changed... So I deleted this prototype (but wonder if changing the Value_Type to something not needing a ValueMapID might work instead.. hmm... I reiterated, and removed all the item_protoypes which were causing problems [39 of them out of 500+]. Now I'm going through the list seeing if there is anything there I NEED!

Attached is the erroring sections....

Any ideas what is causing them to fail?

Sample:

                        <item_prototype>
                            <name>DISMAN-EVENT-MIB::mteEventActions[{#SNMPINDEX}]</name>
                            <type>SNMPV2</type>
                            <description>The actions to perform when this event occurs. For \'notification\', Traps and/or Informs are sent according to the configuration in the SNMP Notification MIB. For \'set\', an SNMP Set operation is performed according to control values in this entry.</description>
                            <applications>
                                <application>
                                    <name>ZEBRA-Link-OS_v6</name>
                                </application>
                            </applications>
                            <port>{$SNMP_PORT}</port>
                            <snmp_community>{$SNMP_COMMUNITY}</snmp_community>
                            <key>.1.3.6.1.2.1.88.1.4.2.1.3.[{#SNMPINDEX}]</key>
                            <snmp_oid>.1.3.6.1.2.1.88.1.4.2.1.3.{#SNMPINDEX}</snmp_oid>
                            <delay>1h</delay>
                            <history>2w</history>
                            <trends>0</trends>
                            <value_type>TEXT</value_type>
                            <valuemap>
                                <name>DISMAN-EVENT-MIB::mteEventActions</name>
                            </valuemap>
                        </item_prototype>​

"

[Argon0]

After doing the above the template imported. Not sure it is any use yet, but about to find out.

[Argon0]

Hmmm... Well, there is a LOT in there. But none of it has any relation to the counters, etc.. in the MIB (by name anyway). Anybody got a good (proven) way to turn a MIB into a template for what's there? Tempted to start a fresh thread....

[bweblusrqjvjfwj]

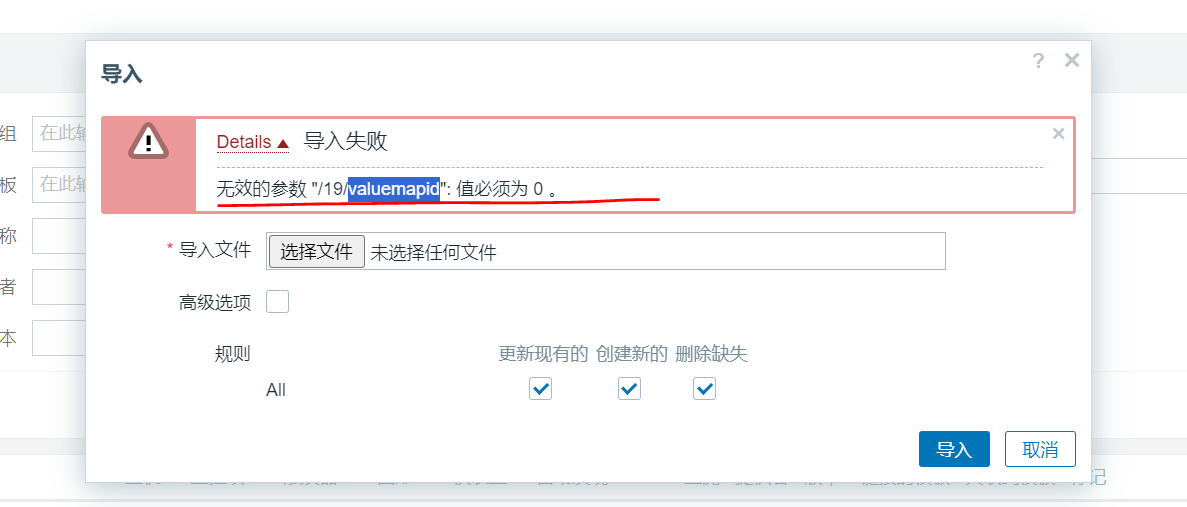

hi ,I have some issue


I use this

https://github.com/Sean-Bradley/SNMP2ZABBIX

to covert mib to template

use python SNMP2ZABBIX.py ./SANGFOR-GENERAL-AND-SSL-MIB 1.3.6.1.4
