How to get Vmware cpu overccomit value (pCPU:vCPU ratio) for a vmware cluster?

[Rayg00n]

Does anybody know hot to get(calculate) the level of overcommiting cpu in a vmware cluster ?
Cannot find appropiative perf counter or metric to obtain data via VMware REST API

Zabbix version 6.4.2.


Description of my problem:

1. There is a vmware cluster with 3 esxi-nodes inside (esx-srv1,esx-srv2,esx-srv3)
2. Vsphere and Esxi hosts have 7.0.3U version

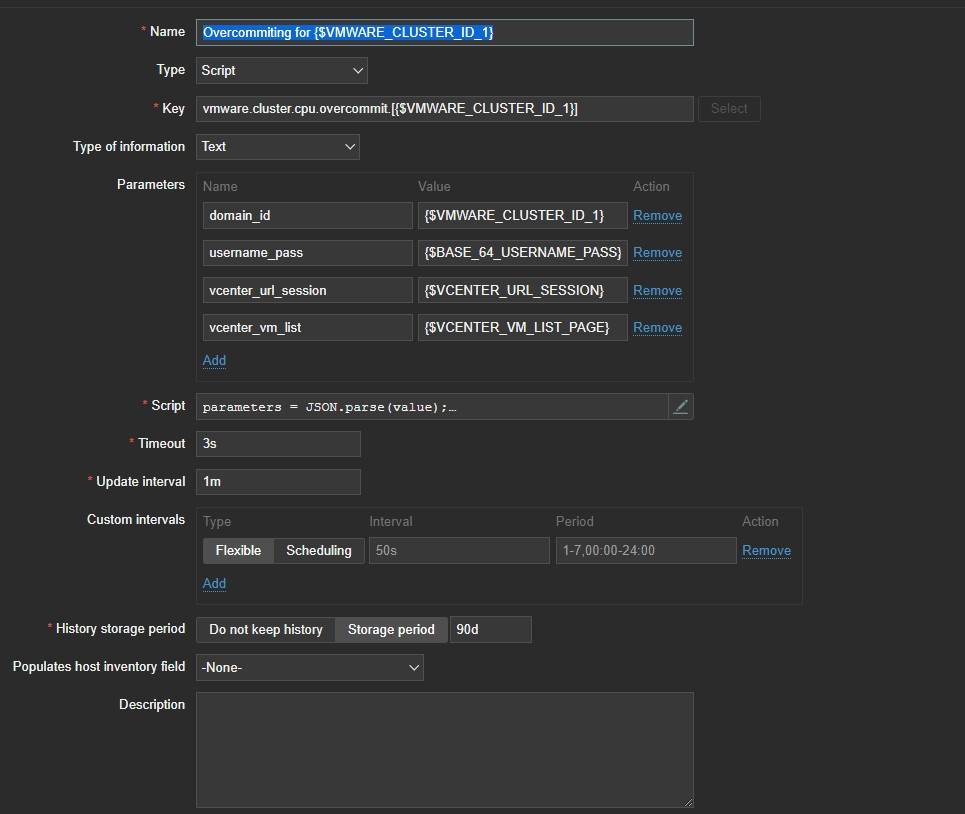

3. Item to collect all vCPU in a cluster is showed on a screenshot below.

I used vmware REST API methods (https) to obtain data from url like:

https://<your_vsphere.ip.address>/rest/vcenter/vm?filter.power_states.1=POWERED_ON&filter.cluster s.1=<your_cluster_id>


Result is parsed to summarize all cpu_counts of all powered VM's filtered by <your_cluster_id>

Javascript code to make thing done:

parameters = JSON.parse(value);    //parsing parameters

// Getting the session ID - autentication
req = new HttpRequest();
req.addHeader('Authorization: Basic '+parameters.username_pass);
resp = req.post(parameters.vcenter_url_session);
session_id = resp.match(/(?:[a-zA-Z0-9]{32})/g);

// Using session ID to obtain REST API data
req_vm_list = new HttpRequest();
req_vm_list.addHeader('vmware-api-session-id: '+session_id);
resp_vm_list = req_vm_list.get(parameters.vcenter_vm_list+'&filter.clusters.1='+parameters.domain_id);

// Json Tranformation
json_data = resp_vm_list;
json_data = json_data.match(/"cpu_count":(\d.*?)}/g);
json_data = String(json_data).replace(/"cpu_count"/g, '{"cpu_count"');
json_data = json_data.replace(/:/g, ': ');
json_data = '[' + json_data + ']';

// Summarize of cpu_counts
const vm_cpu_array = JSON.parse(json_data);

   var cpu_sum = 0;
   for (i = 0; i < vm_cpu_array.length; i ++) {
      var number = parseFloat(vm_cpu_array[i].cpu_count);
      cpu_sum += number;
  }

// Return
return(cpu_sum);​

It's works.

4. How to get all numbers of cpu cores\threads in a vmware cluster?

I can get all esxi-host ID's in my cluster
+
I know how to get total number of cpu cores or threads for a one esxi-host by using this key:

vmware.hv.hw.cpu.threads[url,uuid]

But how can I use this key^ inside javascript above (for..do..loop)?
Is it possible to run simple check keys inside javascript code?

Any help would be appreciated.
